Lindy 100m USB 2.0 Cat.5 Extender Technical details

Extendere audiovideo

Lindy 100m USB 2.0 Cat.5 Extender Technical details

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: LY-42674

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Lindy 100m USB 2.0 Cat.5 Extender Technical details Lindy 50m USB 2.0 Cat.5e Extender Lindy 50m Cat.6 HDMI & IR Extender with Loop Out Lindy extractor Audio HDMI 4K60, interfata HDMI 2.0, latime de Lindy 300m Cat.6 VGA, USB & PS/2 KVM Extender, Maximum
Alte caracteristici
Cable types supported Cat5e, Cat6 Cat5, Cat5e, Cat6 Cat6 — —
Certification CE, FCC, REACH, CP65 CE, UKCA, FCC, RoHS & REACH CE, FCC, RoHS, REACH CE. FCC, REACH —
Chipset CH317Q, CH536G NS1021 GSV1001 — —
Compliance certificates RoHS — CE, REACH, RoHS RoHS —
Data transfer rate 480 Mbit/s 480 Mbit/s — — —
DC-in jack — Yes — — Yes
Depth 22 mm — 6.9 mm 104.4 mm —
Distanta maxima 100 m 50 m 70 m 100 m 300 m
Garantie 24 24 24 24 24
Harmonized System (HS) code 85176990 85176990 — 85176990 85176200
HDMI in — — 1 1 —
Height 69 mm — 16.5 mm 28.3 mm —
Housing material Plastic Metal — Metal —
Input current — 0.25 A 1 A — —
Interfata HDMI Nu Nu Da Da Nu
LED indicators — Yes — — Yes
Manual Yes Yes Yes — Yes
MAXIMUM-RESOLUTION — — 3840 x 2160 pixels 3840 x 2160 pixels 1920 x 1080 pixels
Maximum transfer distance 100 m 50 m 70 m — —
Numar porturi RJ-45 2 2 1 1 1
Numar porturi USB 1 2 1 1 2
Number of HDMI outputs — — 2 1 —
Operating relative humidity (H-H) 0 - 80% 0 - 90% 20 - 90% 5 - 90% —
Operating temperature (T-T) 0 - 40 °C 0 - 70 °C 0 - 40 °C — —
Operating voltage — — 12 V 5 V —
Output current 2 A 0.5 A — — —
Output voltage 5 V 24 V — — —
Package depth 200 mm 140 mm 70 mm 57 mm —
Package height 48 mm 55 mm 113 mm 151 mm —
Package weight 250 g 400 g 414 g — —
Package width 200 mm 185 mm 200 mm 205 mm —
Product colour Black Black Black Black Black
Rezolutie maxima None None 3840 x 2160 pixeli 3840 x 2160 pixeli 1920 x 1200 pixeli
RJ-45 ports quantity (receiver) 1 1 — — —
RJ-45 ports quantity (transmitter) 1 1 — — —
Storage temperature (T-T) -10 - 60 °C -20 - 80 °C -20 - 60 °C — —
SUPPORTED-BANDWIDTH 480MBPS 480MBPS 10.2 Gbit/s 18 Gbit/s 350 MHz
USB 2.0 ports quantity — 2 — — 2
Weight 50 g 300 g 130 g 175 g —
Width 36 mm — 79.5 mm 64 mm —
Producator LINDY LINDY LINDY LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

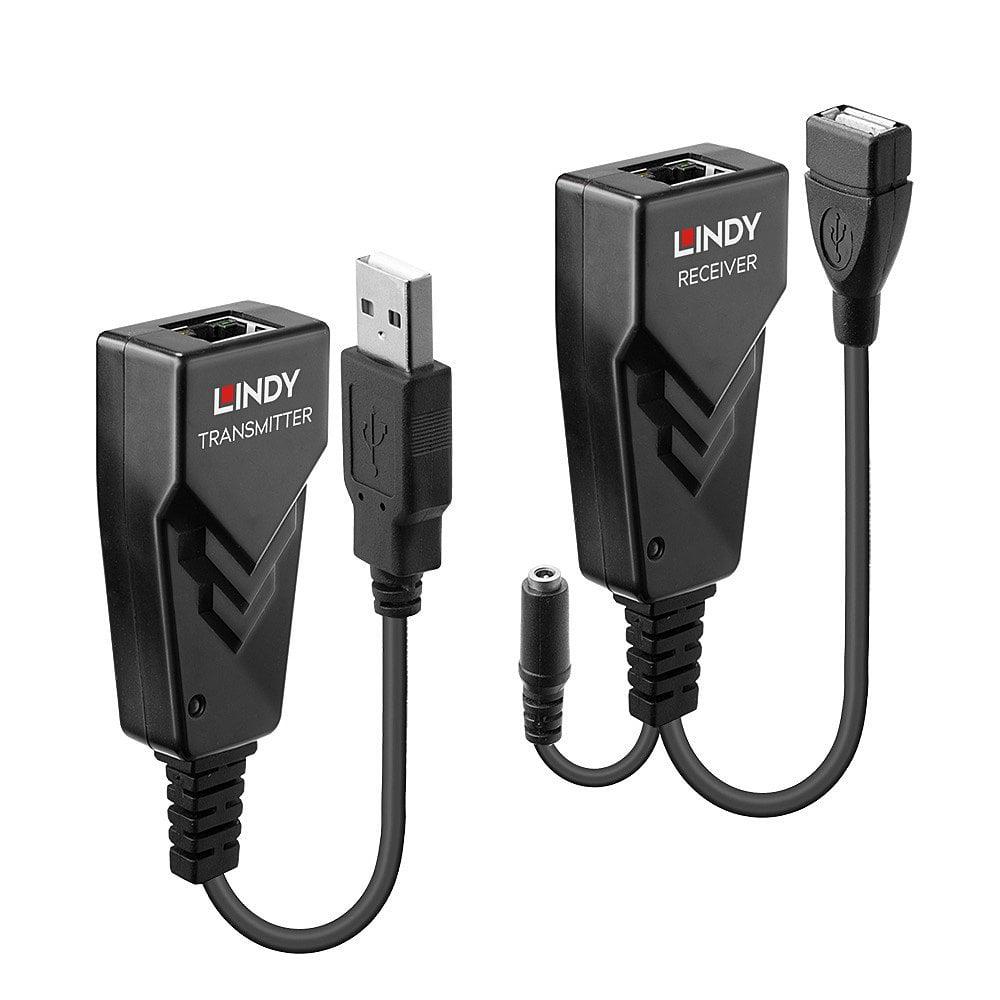

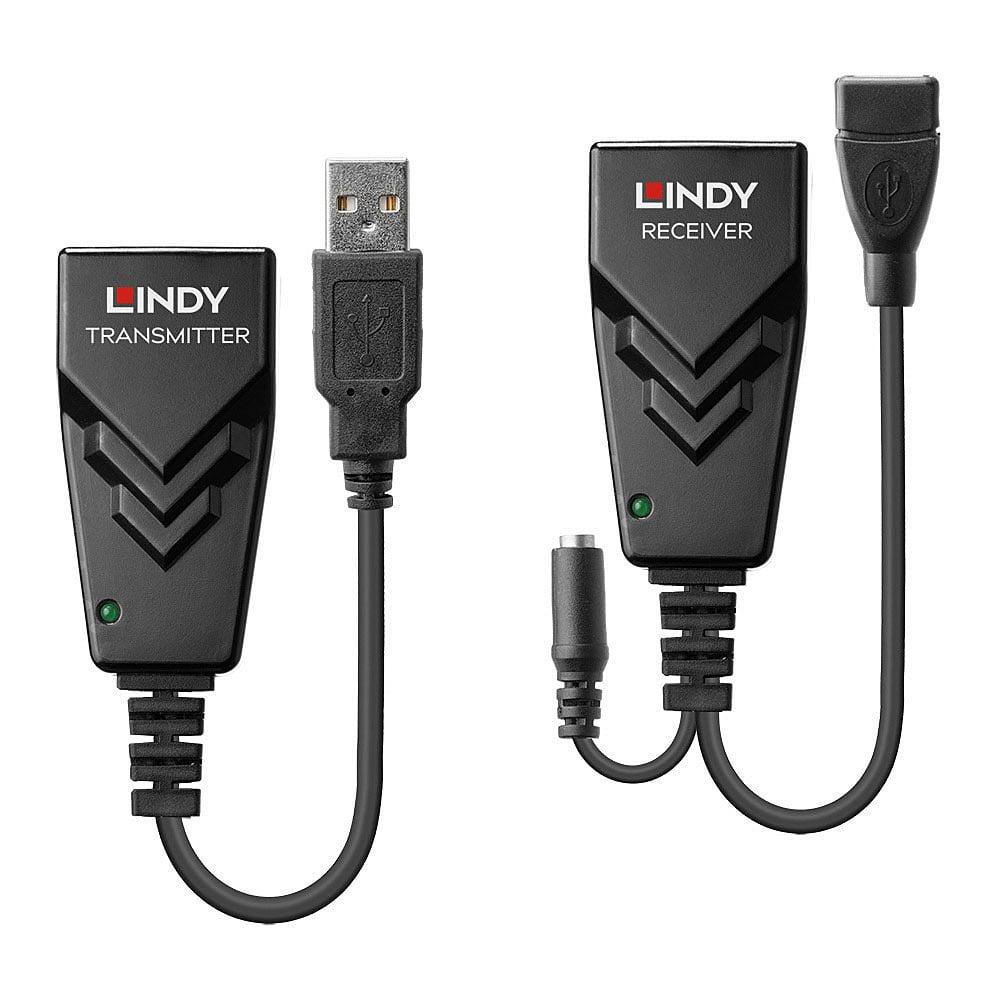

Lindy 100m USB 2.0 Cat.5 Extender Technical details Specifications USB Standard: USB2.0 Supported Bandwidth: 480Mbps Maximum Distance: 100m (328.08ft) Transmission Medium: Cat. 5e UTP network cable Chipset: CH317Q, CH536G Special Features: – Connectors Transmitter Input: USB Type A (Male) Transmitter Output: RJ45 (Female) Receiver Input: RJ45 (Female) Receiver Output: USB Type A (Female) Power: 3.5/1.35mm DC socket Physical Properties Dimensions WxDxH: 69x36x22mm (2.72×1.42×0.87in) Housing Material: Plastic Net Weight: 0.05kg (0.11lb) Operating Temperature: 0° – 40°C (32°F – 104°F) Storage Temperature: -10°C – 60°C (14°F – 140°F) Humidity: 0 – 80% RH (non-condensing) Power Requirements: 5V DC 2A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 200x200x48mm (7.87×7.87×1.89in) Gross Weight: 0.25kg (0.55lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS & REACH, CP65 Package content Transmitter unit Receiver unit Multi-Country Power Supply (EU, UK, US & AUS) Lindy Manual Purchasing information No.: 42674 EAN: 4002888426749 https://www.lindy-international.com/100m-USB-2-0-Cat-5e-Extender-.htm? websale8=ld0101.ld021102&pi=42674&ci=50

Specificații tehnice 33 caracteristici
Cable types supported
Cat5e, Cat6
Certification
CE, FCC, REACH, CP65
Chipset
CH317Q, CH536G
Compliance certificates
RoHS
Data transfer rate
480 Mbit/s
Depth
22 mm
Distanta maxima
100 m
Garantie
24
Harmonized System (HS) code
85176990
Height
69 mm
Housing material
Plastic
Interfata HDMI
Nu
Manual
Yes
Maximum transfer distance
100 m
Numar porturi RJ-45
2
Numar porturi USB
1
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Output current
2 A
Output voltage
5 V
Package depth
200 mm
Package height
48 mm
Package weight
250 g
Package width
200 mm
Product colour
Black
Rezolutie maxima
None
RJ-45 ports quantity (receiver)
1
RJ-45 ports quantity (transmitter)
1
Storage temperature (T-T)
-10 - 60 °C
SUPPORTED-BANDWIDTH
480MBPS
Weight
50 g
Width
36 mm
Producator
LINDY
