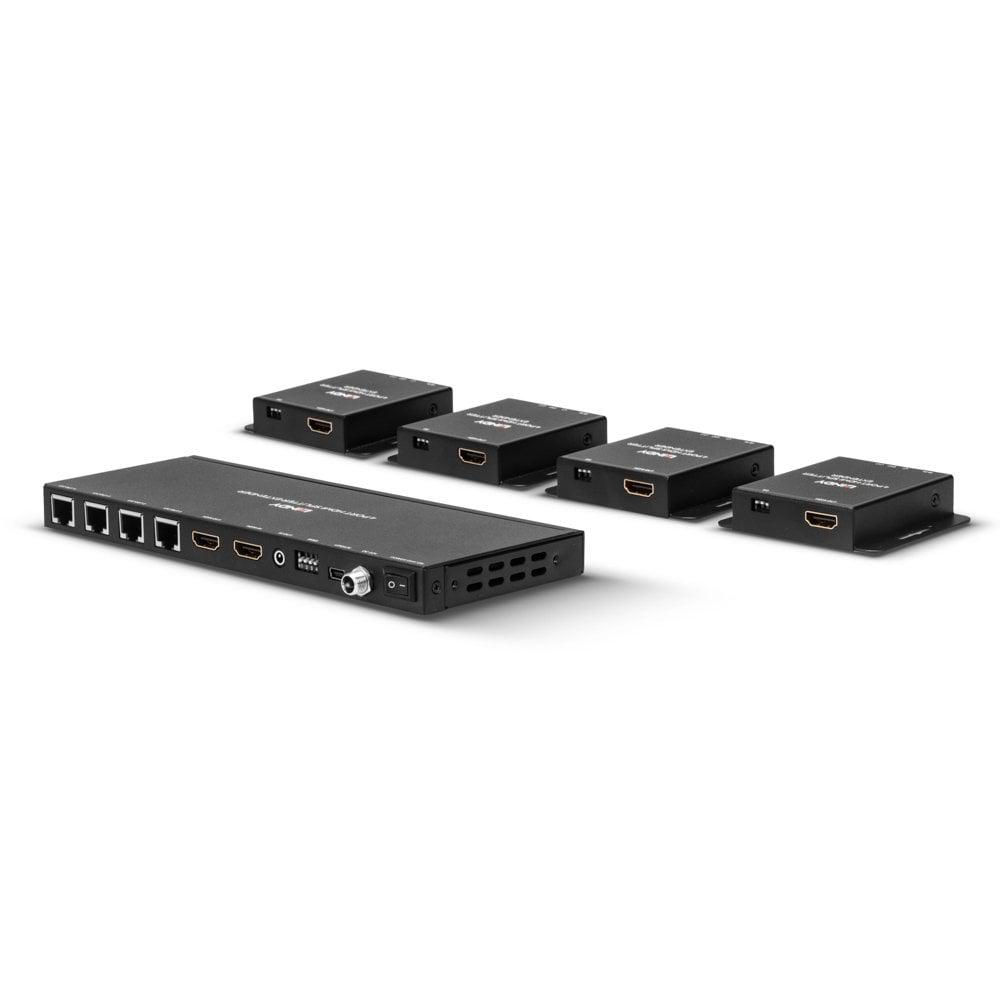

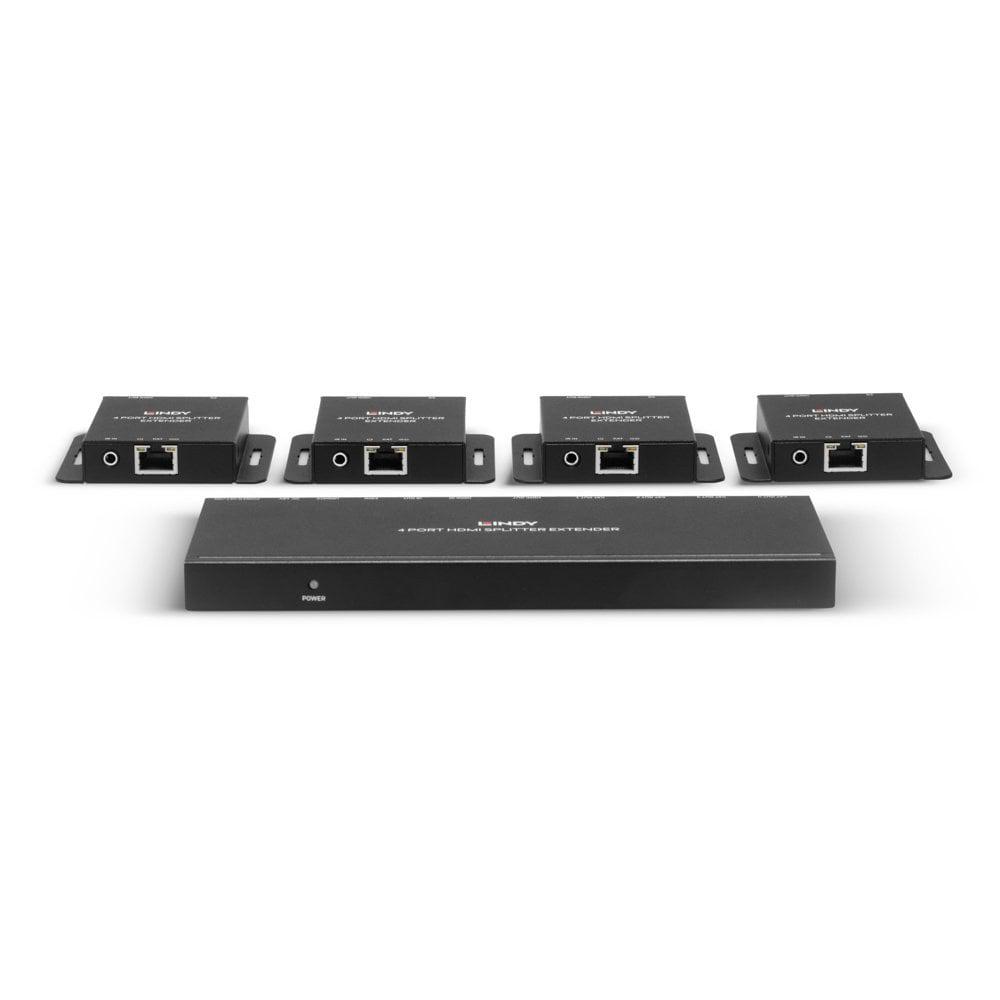

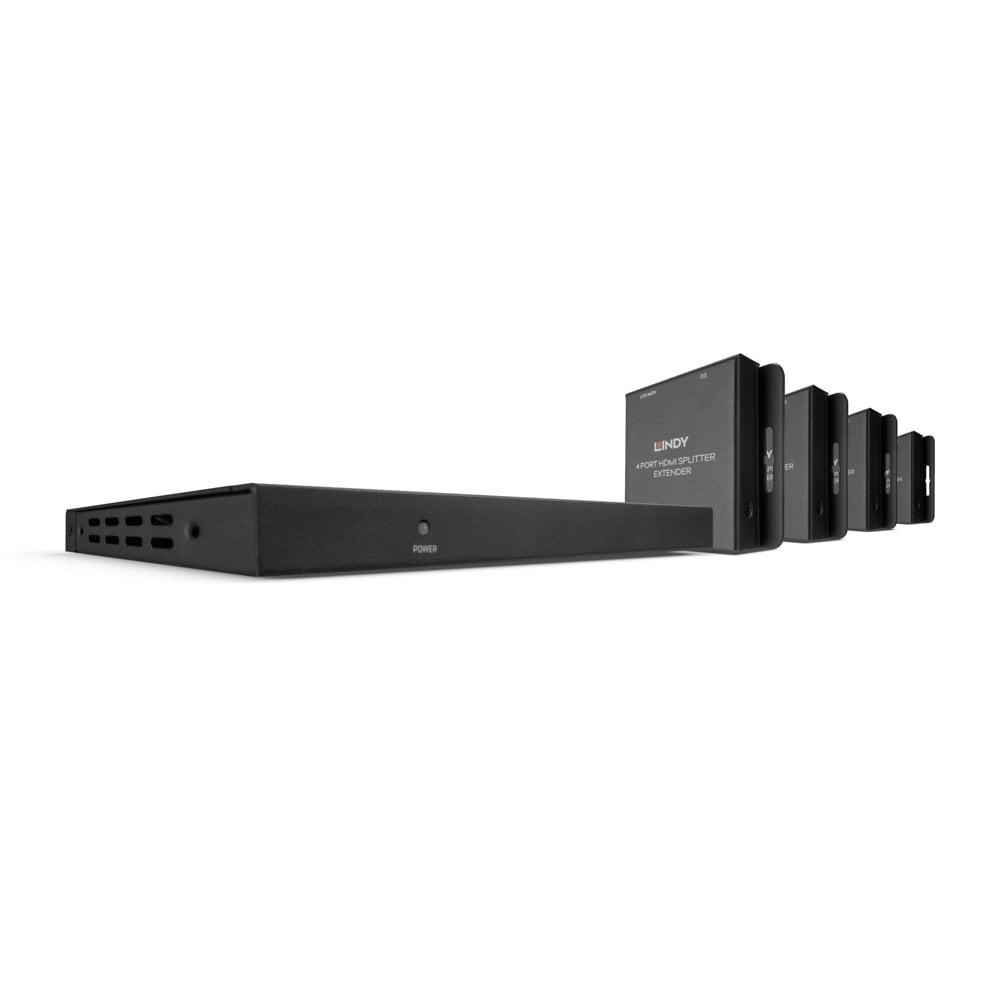

Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender

Splittere audiovideo

Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender

(0) În stoc
Vândut de RITC.ro Cod produs: LY-38155

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender Splitter semnal video Lindy 4x HDMI 2.0 18G, latime de Splitter Lindy 8 Port HDMI 2.0, latime de banda suportata Lindy 2 Port HDMI 2.0 18G Splitter Lindy PoE to Type C Splitter Converter, Power Input: 60W
Alte caracteristici
AC adapter included Yes — Yes Yes —
AC input voltage — 5 V 12 V — —
Certification CE, FCC, RoHS, REACH CE, FCC, REACH & California Proposition 65 CE, FCC, REACH & California Proposition 65 — —
Compliance certificates — RoHS RoHS — CE, REACH, RoHS
DC-in jack — Yes Yes Yes —
Depth — 63 mm 10.2 mm 14.4 mm 54 mm
Garantie 24 24 24 24 24
Harmonized System (HS) code 84733080 85176990 85176990 85176990 —
HDCP — Yes Yes Yes —
HDMI version — 2.0 — 2.0 —
HD type — 4K Ultra HD 4K Ultra HD 4K Ultra HD —
Height — 16 mm 16 mm 63 mm 24 mm
Housing material — Metal Metal Metal Plastic
LED indicators Yes Yes Yes Yes Status
Manual Yes Yes Yes Yes —
MAXIMUM-RESOLUTION — 3840 x 2160 pixels 3840 x 2160 pixels 4096 x 2160 pixels 3840x2160@60Hz
Maximum refresh rate — 60 Hz — 60 Hz —
Number of displays supported 4 — 8 — —
Operating relative humidity (H-H) 20 - 90% 20 - 90% 20 - 90% 20 - 90% —
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 55 mm 183 mm 65 mm —
Package height — 183 mm 68 mm 115 mm —
Package type — Box Box Box Box
Package weight — 526 g 913 g 128 g 110 g
Package width — 248 mm 277 mm 205 mm —
Porturi Video: 4 4 8 2 N/A
Product colour Black Black Black Black Black
Refresh rate 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Rezolutie maxima 1920 x 1080 pixels 3840 x 2160 pixels 3840 x 2160 pixels 3840 x 2160 pixels N/A
Storage temperature (T-T) -20 - 60 °C -20 - 60 °C -20 - 60 °C — -20 - 70 °C
Video out — 4x HDMI 8x HDMI 2x HDMI —
Video ports quantity — 5 9 3 —
Video port type — HDMI HDMI HDMI —
Weight — 373 g 728 g 40 g 85 g
Width — 163 mm 243 mm 120 mm 80 mm
Producator LINDY LINDY LINDY LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender with Loop Out Description An advanced Splitter Extender that extends and distributes HDMI & IR signals to 4 displays at distances of up to 50m Supports resolutions up to Full HD 1920×1080 @60Hz 4:4:4 8bit, including 3D Features a loop-through HDMI output on the transmitter for local monitoring/cascading Supports power over Cable (PoC), only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.3 Supported Bandwidth: 4.95 Gbps Maximum Distance: 50m (164.04ft) – 1920×1080@60Hz 4:4:4 8bit Cat.6 Maximum Resolution: 1920×1080@60Hz 4:4:4 8bit HDCP Support: HDCP 1.2 EDID Pass Through: Preset, Cloning Function Supported Audio: Up to 7.1 (Pass-through) IR Support: 20-60 kHz CEC Support: – Transmission Medium: 1 x Cat.6 (per receiver) Special Features: PoC (Power over Cable Cable) Connectors Transmitter Input: HDMI (Female) Transmitter Output: 4 x RJ45 (Female), HDMI (Female), IR (Female) Receiver Input: RJ45 (Female), IR (Female) Receiver Ouput: HDMI (Female) Power: 5.5/2.1mm DC Socket Physical Properties Dimensions WxHxD: Transmitter: 210x83x17mm (8,27×3,27×0,67in) Receivers: 79x68x17mm (3,11×2,68×0,67in) (per unit) Housing Material: Metal Nett Weight: Transmitter: 0.443kg (0.98lb) Receiver: 0.131kg (0.29lb) per unit Operating Temperature: 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (non-condensing) Power Requirements: 12VDC 2.5A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 310x162x74mm (12.21×6.38×2.91in) Gross Weight: 1.516kg (3.34lb) Warranty (Years): 2 Certificated: CE, FCC, REACH and RoHS Package Contents Splitter transmitter unit 4 x Receiver unit IR emitter cable 4 x IR receiver cable Multi-Country Power Supply (EU, UK, US & AUS) Lindy manual https://www.lindy-international.com/50m-Cat-6-4-Port-HDMI-IR-Splitter- Extender-with-Loop-Out.htm?websale8=ld0101.ld021102&pi=38155 &ci=20

Specificații tehnice 35 caracteristici
AC adapter included
Yes
AC adapter output current
2.5 A
AC adapter output voltage
12 V
Cables included
IR
Cable types supported
Cat6
Certification
CE, FCC, RoHS, REACH
Connectivity technology
Wired
Garantie
24
Harmonized System (HS) code
84733080
LED indicators
Yes
Manual
Yes
Maximum digital resolution
1920 x 1080 pixels
Maximum transfer distance
50 m
Number of displays supported
4
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Porturi Video:
4
Product colour
Black
Receiver depth
8.1 cm
Receiver height
2.5 cm
Receiver local video port type
HDMI
Receiver weight
131 g
Receiver width
4.9 cm
Refresh rate
60 Hz
Rezolutie maxima
1920 x 1080 pixels
RJ-45 ports quantity (receiver)
1
RJ-45 ports quantity (transmitter)
4
Storage temperature (T-T)
-20 - 60 °C
Transmitter depth
25 cm
Transmitter height
3.2 cm
Transmitter local video port
HDMI
Transmitter video port type
HDMI
Transmitter weight
443 g
Transmitter width
11.8 cm
Producator
LINDY
