Switch HDMI 8K Aten, numar porturi: 2, interfata video input:

Splittere audiovideo

Switch HDMI 8K Aten, numar porturi: 2, interfata video input:

(0) În stoc
Vândut de RITC.ro Cod produs: VS5821-AT

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch HDMI 8K Aten, numar porturi: 2, interfata video input: Splitter HDMI Aten VS0108HB; Video Type portul: HDMI, Iesire video: Splitter True 4K ATEN VS182B-AT-G. Video Type portul: HDMI, Iesire Splitter ATEN True 4K60Hz HDMI, 2 porturi alimentare USB-C, Rata Splitter Aten True 4K HDMI, numar porturi: 4, max. data
Alte caracteristici
3D — Yes Yes — —
AC adapter included — Yes Yes — —
Bandwidth — 600 MHz 600 MHz — —
Built-in display No — — No —
Cables included USB Type-A to USB Type-C AC HDMI USB Type-A to USB Type-C USB Type-A to USB Type-C
Country of origin China — — China China
Data transfer rate (max) 48 Gbit/s — — 18 Gbit/s —
DC-in jack — Yes Yes — —
Depth 61 mm 437.2 mm 125 mm 61 mm 145 mm
Garantie 24 24 24 24 24
Harmonized System (HS) code 85437090 85176990 85176990 85437090 85437090
HDCP Yes Yes Yes Yes Yes
HDCP version 2.3 2.2 2.2 2.2 2.2
HDMI ports quantity 3 — — 3 —
HD type 8K Ultra HD 4K Ultra HD 4K Ultra HD 4K Ultra HD 4K Ultra HD
Height 15.2 mm 44 mm 25 mm 15.2 mm 15.2 mm
Housing material Polycarbonate (PC) Metal Metal — Polycarbonate (PC)
Input current 1 A — — 1 A —
Input voltage 5 V — — 5 V —
Keyboard port type No — — No —
LED indicators Yes Yes Yes Yes Yes
Master (outer) case gross weight — 10.6 kg 14.4 kg 2.37 kg —
Master (outer) case height — 258 mm 338 mm 156 mm —
Master (outer) case length — 565 mm 490 mm 320 mm —
Master (outer) case net weight — 7.74 kg 10 kg 1.2 kg —
Master (outer) case width — 420 mm 315 mm 213 mm —
MAXIMUM-RESOLUTION 7680 x 4320 pixels 4096 x 2160 pixels 4096 x 2160 pixels 3840 x 2160 pixels 3840 x 2160 pixels
Maximum operating distance 1.5 m 3 m 5 m 3 m 3 m
Maximum refresh rate — 60 Hz 60 Hz — 60 Hz
Mouse port type No — — No —
Operating relative humidity (H-H) 0 - 80% 0 - 80% 0 - 80% 0 - 80% 0 - 80%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Output voltage — 5 V — — 5 V
Package depth — 540 mm 239 mm — —
Package height — 233 mm 160 mm — —
Package weight — 3.12 kg 670 g — —
Package width — 131 mm 59 mm — —
Plug and Play — Yes Yes — —
Porturi Video: 3 9 3 2 5
Power consumption (typical) — 11.95 W 4.24 W — —
Power source USB — — USB —
Product colour Black Black Black Black Black
Products per master (outer) case 20 pc(s) 3 pc(s) 20 pc(s) 20 pc(s) 20 pc(s)
Quick installation guide Yes — — Yes —
Rack mounting No Yes — No —
Refresh rate 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Rezolutie maxima 7680 x 4320 pixels 4096 x 2160 pixels 4096 x 2160 pixels 3840 x 2160 pixels 3840 x 2160 pixels
Storage relative humidity (H-H) 0 - 80% — 0 - 80% 0 - 80% 0 - 80%
Storage temperature (T-T) -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C
USB connector type USB Type-C — — USB Type-C —
Video bandwidth 60 Hz — — 60 Hz —
Video out — 8x HDMI 2x HDMI — 4x HDMI
Video ports quantity — 9 3 — 5
Video port type HDMI HDMI HDMI HDMI HDMI
Weight 30 g 2.58 kg 500 g 30 g 100 g
Width 56.5 mm 157.8 mm 80 mm 56.5 mm 56.5 mm
Producator ATEN ATEN ATEN ATEN ATEN

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

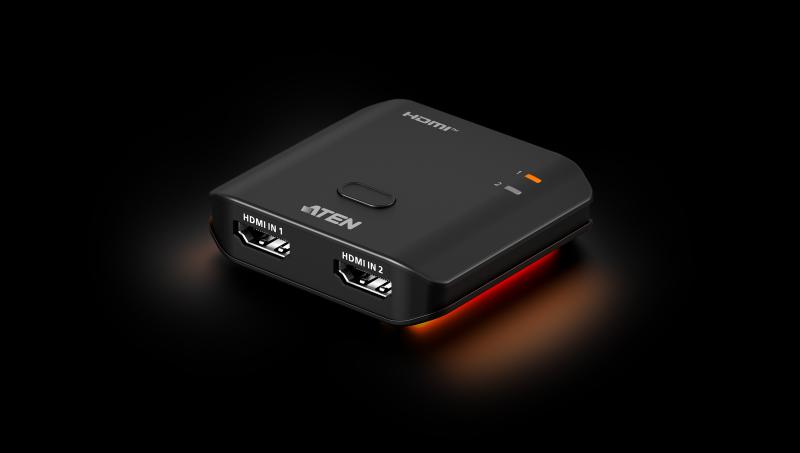

Switch HDMI 8K Aten, numar porturi: 2, interfata video input: 2 x HDMI Type A Female, interfata video output: 1 x HDMI Type A Female, rezolutie maxima 7680x4320px, latime de banda 48 Gbps, latime de banda 48 Gbps, negru

Specificații tehnice 38 caracteristici
Built-in display
No
Cables included
USB Type-A to USB Type-C
Country of origin
China
Data transfer rate (max)
48 Gbit/s
Depth
61 mm
Garantie
24
Harmonized System (HS) code
85437090
HDCP
Yes
HDCP version
2.3
HDMI ports quantity
3
HD type
8K Ultra HD
Height
15.2 mm
Housing material
Polycarbonate (PC)
Input current
1 A
Input voltage
5 V
Keyboard port type
No
LED indicators
Yes
MAXIMUM-RESOLUTION
7680 x 4320 pixels
Maximum operating distance
1.5 m
Mouse port type
No
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Porturi Video:
3
Power source
USB
Product colour
Black
Products per master (outer) case
20 pc(s)
Quick installation guide
Yes
Rack mounting
No
Refresh rate
60 Hz
Rezolutie maxima
7680 x 4320 pixels
Storage relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
USB connector type
USB Type-C
Video bandwidth
60 Hz
Video port type
HDMI
Weight
30 g
Width
56.5 mm
Producator
ATEN
