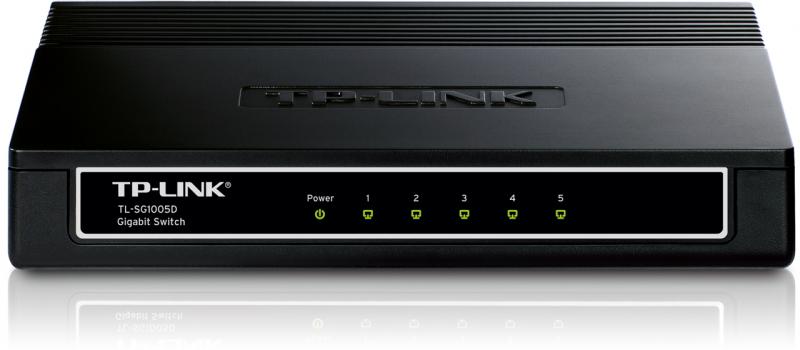

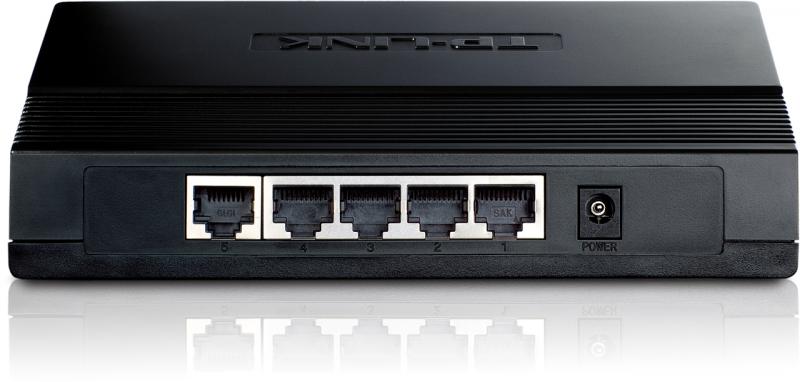

Switch TP-Link TL-SG1005D, 5 port, 10/100/1000 Mbps

Switchuri

Switch TP-Link TL-SG1005D, 5 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG1005D

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SG1005D, 5 port, 10/100/1000 Mbps Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 5 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control — — — Yes Yes
Cables included — — AC AC AC
Cloud-managed — — — Yes Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 108 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Fanless Yes Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support Yes Yes Yes Yes —
Forwarding rate — — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Full duplex Yes Yes — — —
Garantie 36 36 36 60 24
Gigabit Ethernet (copper) ports quantity 5 — — — 24
Half duplex Yes Yes — — —
Harmonized System (HS) code 85176990 85176990 85176990 — —
Heat dissipation 8.22 BTU/h 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 28 mm 22.5 mm 44 mm — 44 mm
IGMP snooping — — — Yes Yes
Input current 0.6 A 0.6 A — — —
IP-MAC-Port binding — — — Yes Yes
Jumbo frames 15000 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type Gigabit FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 8000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management nu nu nu Da —
Montare in rack Nu Nu Nu Nu Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth 108 mm 139 mm 528 mm — —
Package height 85 mm 85 mm — — —
Package type — Box Box Box —
Package weight 240 g 240 g 2.28 kg — —
Package width 145 mm 100 mm 250 mm — —
Packet buffer memory — 2 MB 2 MB 16 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring — — — Yes Yes
Porturi RJ 45 5-10 5-10 11-18 1-4 24-28
Porturi SFP N/A N/A N/A 5-8 3-4
Power connector DC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 2.41 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) No No No No No
Power source DC DC AC AC AC
Power supply included No No Yes Yes Yes
Product colour Black White Black — —
Quality of Service (QoS) support — — — Yes Yes
Quick start guide Yes Yes — Yes —
Rack mounting No No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity — — — 8 4
SSH/SSL support — — — Yes Yes
Stackable No No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 10 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Unmanaged Unmanaged Unmanaged Managed Managed
Virtual LAN features — — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support — — — Yes Yes
Web-based management — — — Yes Yes
Width 165 mm 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
5x RJ-45
Porturi
5x RJ45
Viteza de transfer
10/100/1000 Mbps
Compatibilitate
802.3
802.3u
802.3ab
802.3x
Dimensiuni
165 x 108 x 28 mm
Greutate
340 g
Functii LED
Da
Adrese MAC
1000
Metoda forwarding
Store and forward
Altele
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
Backbound Bandwidth: 10Gbps
Plastic case, desktop or wall-mounting design
Specificații tehnice 61 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Compatible operating systems
Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Depth
108 mm
Fanless
Yes
Flow control support
Yes
Full duplex
Yes
Garantie
36
Gigabit Ethernet (copper) ports quantity
5
Half duplex
Yes
Harmonized System (HS) code
85176990
Heat dissipation
8.22 BTU/h
Height
28 mm
Input current
0.6 A
Input voltage
9 V
Jumbo frames
15000
Jumbo frames support
Yes
LAN ports
5
LAN port type
Gigabit
Layer
Unmanaged
LED indicators
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
8000 entries
Management
nu
Maximum cable length
100 m
Maximum data transfer rate
1 Gbit/s
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of fans
0 fan(s)
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
108 mm
Package height
85 mm
Package weight
240 g
Package width
145 mm
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
2.41 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
No
Product colour
Black
Quick start guide
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Supported data transfer rates
10/100/1000 Mbit/s
Switching capacity
10 Gbit/s
Switch type
Unmanaged
Viteza transfer
Gigabit
Width
165 mm
Producator
TP-LINK
