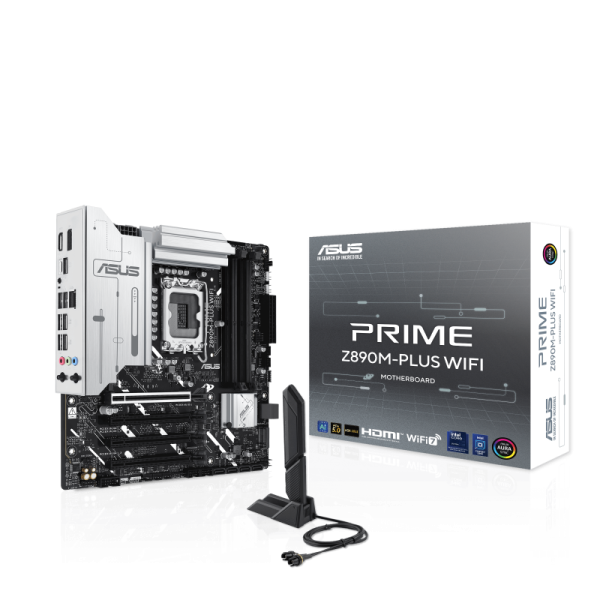

Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5,

Placi de baza

Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: PRIME Z890M-PLUS WIFI

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5, Placa de bază ASUS PRIME H610M-R D4 LGA1700 Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX Placa de bază ASUS TUF GAMING B550-PLUS AM4 Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4,
Alte caracteristici
12V power connector Yes Yes — — Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip — — — Realtek ALC S1200A Realtek ALC887
Audio output channels 7.1 channels 7.1 channels — 7.1 channels 7.1 channels
BIOS memory size 256 Mbit 128 Mbit — 256 Mbit 256 Mbit
BIOS type UEFI AMI UEFI AMI — UEFI AMI UEFI AMI
Cables included SATA SATA — SATA SATA
Canale audio N/A 7.1 N/A 7.1 7.1
Chassis intrusion connector Yes Yes — — —
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS jumper — Yes — Yes Yes
Compatible processor series Intel Core Ultra (Series 2) — Intel® Xeon® AMD Ryzen 3000 Series AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Component for PC PC Server Nettop PC
CPU fan connector Yes Yes — Yes Yes
CPU încorporat — — — No No
DisplayPorts quantity 1 — — 1 —
Drivers included — Yes — Yes Yes
DVI-D ports quantity — 1 — — 1
ECC сompatibility Non-ECC Non-ECC — ECC ECC & Non-ECC
EPS power connector (8-pin) — — Yes Yes —
Ethernet interface type 2.5 Gigabit Ethernet Gigabit Ethernet 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet Gigabit Ethernet
Ethernet LAN (RJ-45) ports — — 2 1 —
Format Micro-ATX Micro-ATX E-ATX ATX Micro-ATX
Front panel audio connector Yes Yes — Yes Yes
Gaming Nu Nu Nu Da Da
Harmonized System (HS) code — 84733020 — 84733020 84733020
Headphone outputs — 3 — — 1
LAN controller — — Intel X710-AT2 Realtek RTL8125B —
MAXIMUM-RESOLUTION — 3840 x 2160 pixels — — 4096 x 2160 pixels
Maximum number of SMP processors — — — 1 1
MB-Format micro-ATX micro-ATX — ATX micro-ATX
MB-Socket LGA1851 1700 — AM4 AM4
Memorie maxima N/A 64 GB 2 TB 128 GB 128 GB
Memory slots type DIMM DIMM DIMM DIMM DIMM
Microphone in Yes Yes — — Yes
Model Chipset Z890 H610 C741 B550 B550
Motherboard chipset Intel Z890 Intel H610 Intel C741 AMD B550 AMD B550
Motherboard chipset family Intel Intel Intel AMD AMD
Motherboard form factor micro ATX micro ATX Extended ATX ATX micro ATX
Numar sloturi memorie 4 2 16 4 4
Number of chassis fan connectors 4 1 — 3 2
Number of COM connectors 1 1 — — —
Number of HDDs supported 6 — 10 — 4
Number of M.2 (M) slots 3 1 2 2 2
Number of memory slots 4 2 16 4 4
Number of SATA III connectors 6 4 10 6 4
Number of storage drives supported 9 5 — — 6
On-board graphics card No — Yes — —
Onboard-CPU No No — — —
Package depth 275 mm — — — 265 mm
Package height 67.5 mm — — — 65 mm
Package weight 1.64 kg — 2.75 kg — 1.27 kg
Package width 275 mm — — — 265 mm
Parallel processing technology support Not supported — — 2-Way CrossFireX Not supported
PCI-Ex1 — — — 1 1
PCI-Ex16 4 1 — 2 1
PCI Express x1 (Gen 3.x) slots — 1 — 3 1
PCI Express x16 (Gen 4.x) slots 3 1 — 1 —
PCI Express x16 (Gen 5.x) slots 1 — 5 — —
Processor socket LGA 1851 (Socket V1) LGA 1700 LGA 4677 (Socket E) Socket AM4 Socket AM4
PS/2 ports quantity — 2 — 1 1
RAID levels 0, 1, 5, 10 — — 0, 1, 10 0, 1, 10
RAM-Slots 4 2 — 4 4
RJ-45 LAN N/A 1 2 1 1
Serial-or-Paralel No/No No/No — No/No No/No
Serial ports quantity — — 1 — 1
Sloturi M.2 3 1 2 2 2
Soclu Procesor Socket 1851 Socket 1700 Socket LGA 4677 Socket AM4 Socket AM4
Supported memory clock speeds — 2133,2400,2666,2800,2933,3000,3200 MHz 4800,5600 MHz 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz 4733 MHz
Supported memory module capacities — — 16GB, 32GB, 64GB, 128GB — 1GB, 2GB, 4GB, 16GB, 32GB
Supported memory types DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM DDR4-SDRAM
Supported processor sockets LGA 1851 LGA 1700 — Socket AM4 Socket AM4
Supported storage drive interfaces M.2, SATA III M.2, SATA III M.2, SATA III M.2, SATA M.2, SATA III
Supported storage drive types HDD & SSD HDD & SSD HDD & SSD — HDD & SSD
Tip Memorie DDR5 DDR4 DDR5 DDR4 DDR4
Tip slot interfata grafica N/A PCIe 4.0 x16 PCIe 5.0 x16 N/A PCIe 4.0 x16
TPM connector Yes Yes Yes Yes Yes
Unbuffered memory Yes Yes — — Yes
USB 2.0 connectors 2 2 1 2 1
USB3 4-8 4-8 — 4-8 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 1 1 1 1
VGA (D-Sub) ports quantity — 1 1 — —
Video-Connection — VGA/DVI/HDMI — HDMI/DP DVI/HDMI
Wi-Fi Yes — — No No
Windows operating systems supported Windows 11 Windows 10 x64, Windows 11 x64 — Windows 10 x64 Windows 10 x64, Windows 11 x64
Wireless Da Nu N/A Nu Nu
Caracteristici fizice
Greutate — 842 g 1.75 kg 945 g —
Conectivitate
Tip conector USB — USB Type-A — — USB Type-A
Laptopuri - Caracteristici fizice 25.09
Adâncime 24.4 mm 193 mm 330.2 mm 24.4 mm 24.4 mm
Lățime 244 mm 226 mm 304.8 mm 30.5 mm 244 mm
Înălțime — — — 6.8 mm 35 mm
Laptopuri - Conectivitate și porturi 25.09
Bluetooth Nu Nu Nu Nu Nu
HDMI Da Da Nu Da Da
Număr porturi HDMI 1 — — 1 1
Număr porturi USB 2.0 2 2 — 2 4
Porturi USB-A 3.2 Gen 1 4 — — 4 4
Rețea prin cablu (LAN) Yes — Yes Yes Yes
Thunderbolt Nu Nu Nu Nu Nu
USB-C Da Da N/A Da Da
Versiune HDMI — 2.1 — — 2.1
Laptopuri - Construcție
Culoare Aluminium, Black — — — Brown
Laptopuri - Generale
Garanție comercială 36 36 24 36 36
Producător ASUS ASUS ASUS ASUS GIGABYTE
Laptopuri - Memorie RAM 25.09
Canale memorie RAM Dual-channel — Octa-channel Dual-channel Dual-channel
Memorie RAM maximă 192 GB — 2 TB 128 GB 128 GB
Laptopuri - Procesor
Producător procesor Intel — Intel AMD AMD

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

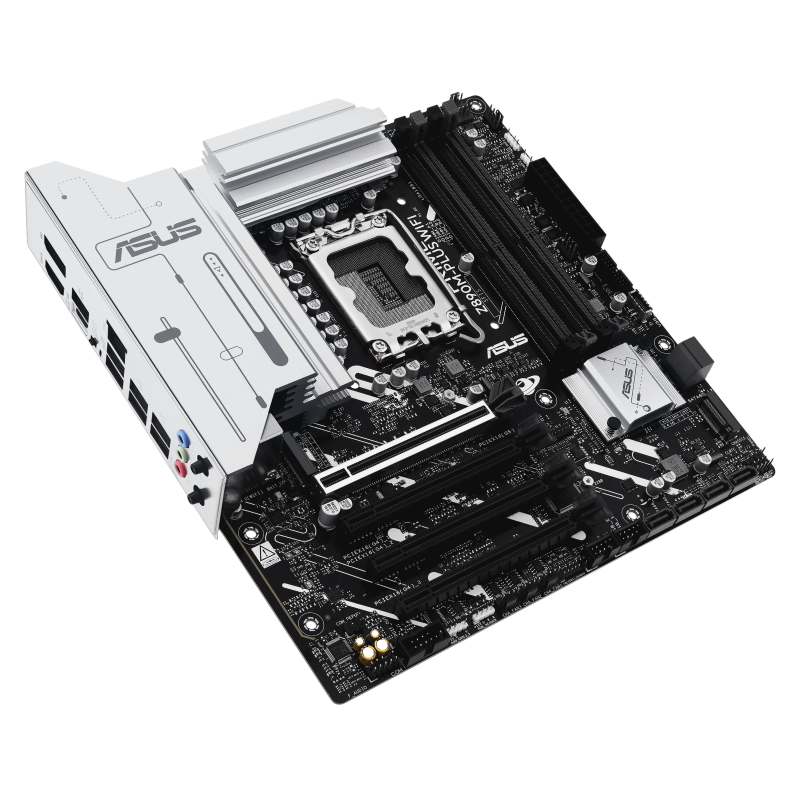

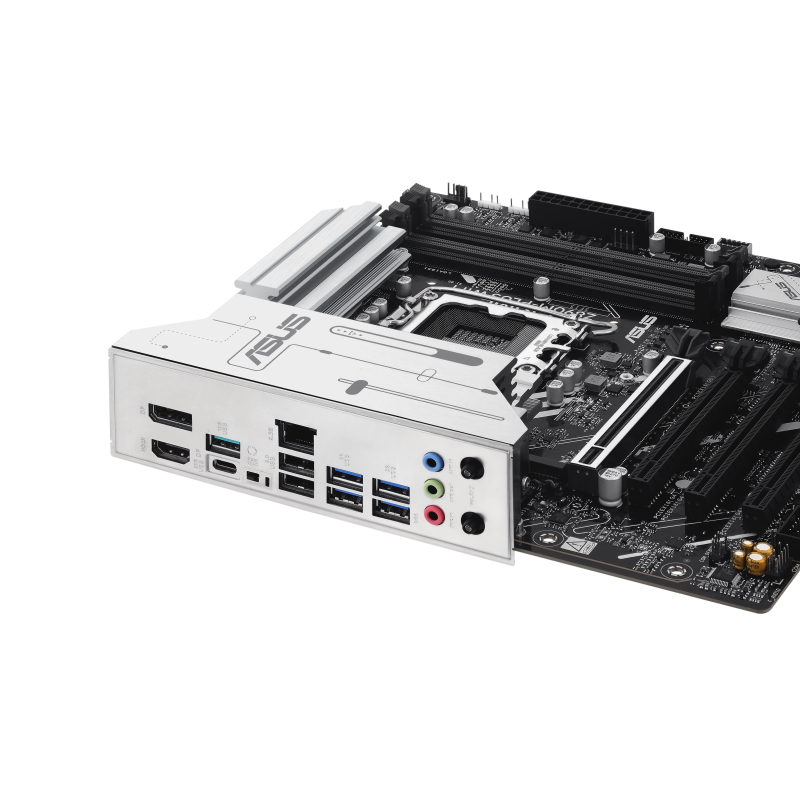

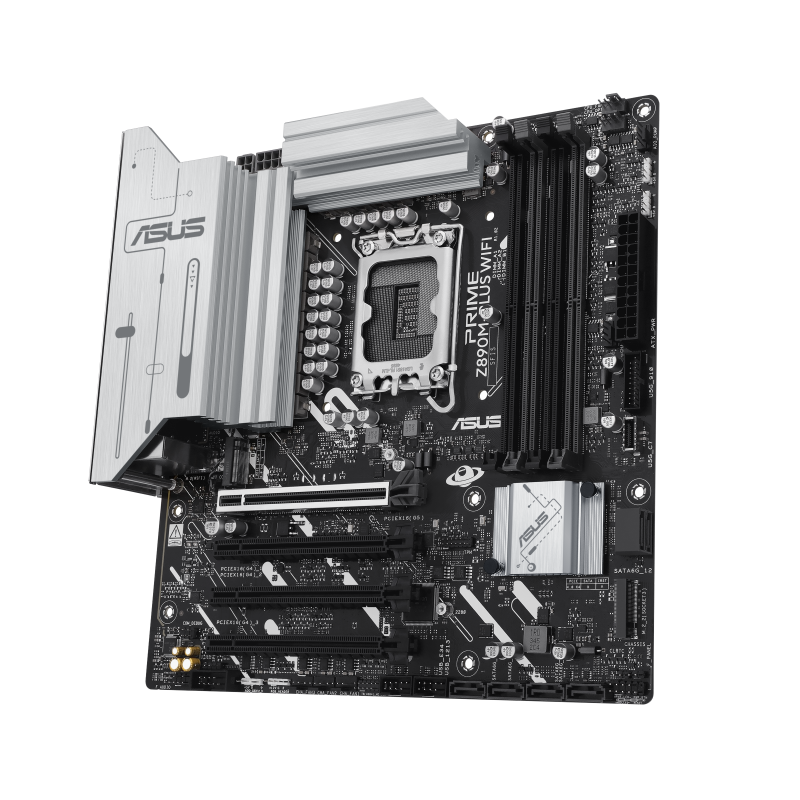

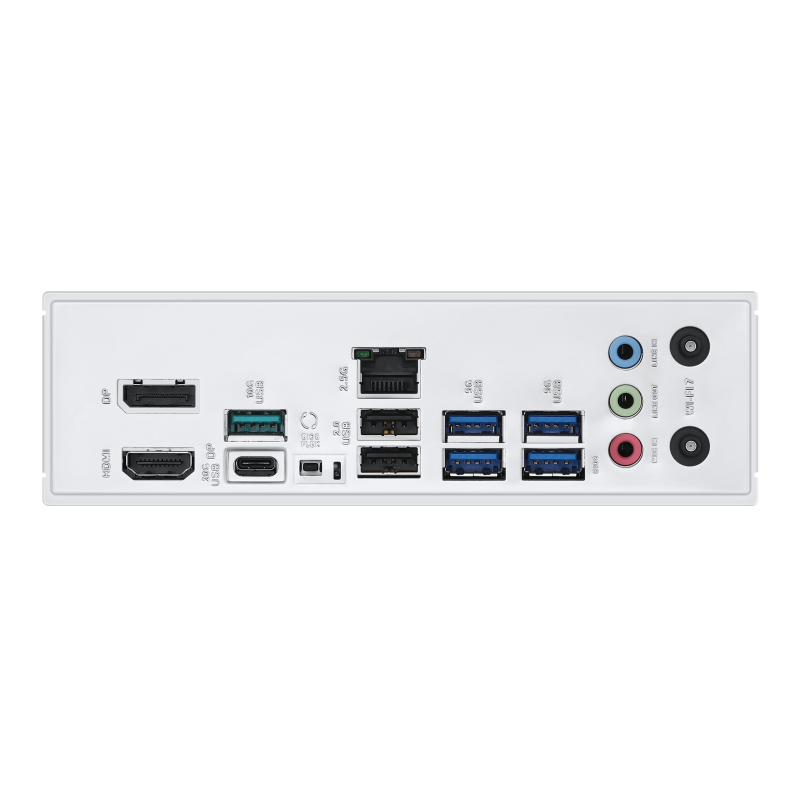

Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851 4x DDR5, 1x DP 1x HDMI 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 (suporta x4) 2x PCIE 4.0 x16 (suporta x1), 3x M.2, 6x SATA 6GB/s, mATX

Specificații tehnice 125 caracteristici
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio jacks
3
Audio output channels
7.1 channels
BIOS
256 Mbit AMI UEFI BIOS
BIOS Flashback
Da
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Cables included
SATA
Canale audio
N/A
Capacitate maxima memorie RAM
192 GB
Chassis intrusion connector
Yes
Chipset
Z890
Chipset audio
Realtek
Chipset audio integrat
Realtek
Chipset retea
Realtek 2.5GbE LAN
Compatible processor series
Intel Core Ultra (Series 2)
Component for
PC
Conectori speciali
1 x Wi-Fi Module
CPU fan connector
Yes
CPU socket
1851
Dimensiuni (L x l, cm)
24.4 x 24.4 cm
DisplayPorts quantity
1
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Format
Micro-ATX
Frecvente suportate
8666+ (OC) MHz
Front panel audio connector
Yes
Gaming
Nu
Header USB 3.0
Da
Interfata grafica
PCI Express x16 4.0
MB-Format
micro-ATX
MB-Socket
LGA1851
Memorie maxima
N/A
Memory slots type
DIMM
Microphone in
Yes
Model Chipset
Z890
Model memorie
DDR5
Motherboard chipset
Intel Z890
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
NGFF (M.2)
3
Numar sloturi memorie
4
Number of chassis fan connectors
4
Number of COM connectors
1
Number of HDDs supported
6
Number of M.2 (M) slots
3
Number of memory slots
4
Number of SATA III connectors
6
Number of storage drives supported
9
On-board graphics card
No
Onboard-CPU
No
Package depth
275 mm
Package height
67.5 mm
Package weight
1.64 kg
Package width
275 mm
Parallel processing technology support
Not supported
PCI-Ex16
4
PCI Express 4.0
3 (x4 / x1 / x1)
PCI Express 5.0
1 (x16)
PCI Express x16 (Gen 4.x) slots
3
PCI Express x16 (Gen 5.x) slots
1
Placa audio integrata
7.1 Audio
Placa retea integrata
10/100/1000/2500 Mbps
Placa video Integrata
Necesita procesor cu tehnologia Intel Integrated Graphics
Procesoare suportate
Intel Core Ultra a doua serie
Processor socket
LGA 1851 (Socket V1)
Producator chipset
Intel
RAID
0, 1, 5, 10
RAID levels
0, 1, 5, 10
RAID support
Yes
RAM-Slots
4
Recomandat Gaming
Da
RJ-45
1
RJ-45 LAN
N/A
S/PDIF out connector
Yes
SATA III
6
Screws included
Yes
Serial-or-Paralel
No/No
Sloturi M.2
3
Sloturi memorie
4
Soclu Procesor
Socket 1851
Suport audio
7.1
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Tehnologie
Dual Channel
Thunderbolt headers
1
Tip Memorie
DDR5
Tip slot interfata grafica
N/A
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0
2
USB 2.0 connectors
2
USB3
4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen1 tip A
4
USB 3.2 Gen2 tip A
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB Tip C
1 x USB 3.2 (Gen2x2)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
WiFi-AP antenna jack
1
Windows operating systems supported
Windows 11
Wireless
Da
Adâncime
24.4 mm
Lățime
244 mm
Bluetooth
Nu
DisplayPort
1
HDMI
Da
Număr porturi HDMI
1
Număr porturi USB 2.0
2
Porturi USB-A 3.2 Gen 1
4
Rețea prin cablu (LAN)
Yes
Standard Wi-Fi
Wi-Fi 7 (802.11be)
Thunderbolt
Nu
USB-C
Da
Versiune Bluetooth
5.4
Culoare
Aluminium, Black
Garanție comercială
36
Producător
ASUS
Canale memorie RAM
Dual-channel
Memorie RAM maximă
192 GB
Producător procesor
Intel
