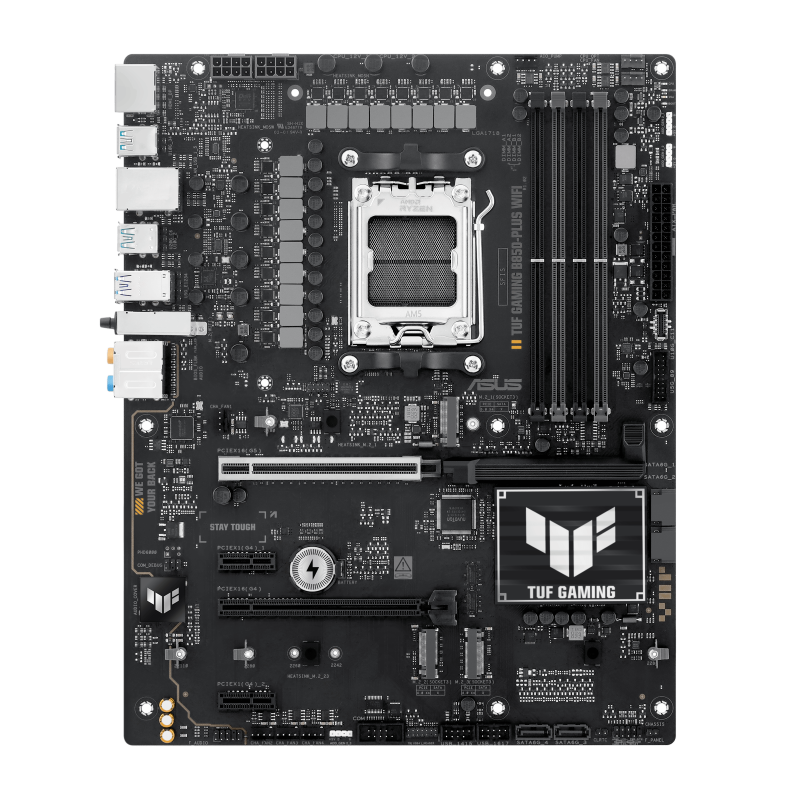

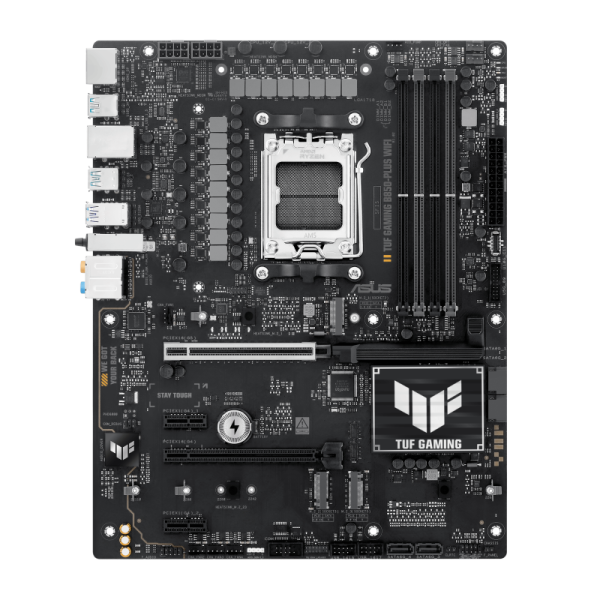

Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5,
1.031,98 lei 1.520,99 lei
Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5,
(0)
În stoc
Vândut de RITC.ro
Cod produs: TUF GAMING B850-PLUS WIFI
Livrare și beneficii
Compară cu produse similare
Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5,
Placa de bază ASUS PRIME H610M-R D4 LGA1700
329,99 lei 466,00 lei
Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX
7.995,99 lei
Placa de bază ASUS TUF GAMING B550-PLUS AM4
571,99 lei 683,99 lei
Placa de baza Gigabyte B650 EAGLE, Socket AM5, DDR5, ATX
620,98 lei 809,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5, | Placa de bază ASUS PRIME H610M-R D4 LGA1700 | Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX | Placa de bază ASUS TUF GAMING B550-PLUS AM4 | Placa de baza Gigabyte B650 EAGLE, Socket AM5, DDR5, ATX |
|---|---|---|---|---|---|
| 1st M.2 highest PCI Express generation | 5.0 | — | — | — | 5.0 |
| 1st M.2 largest key size | 2280 | — | — | — | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 | — | — | — | 4.0 |
| 2nd M.2 largest key size | 22110 | — | — | — | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 | — | — | — | 4.0 |
| 3rd M.2 largest key size | 2280 | — | — | — | 22110 |
| 12V power connector | — | Yes | — | — | Yes |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | Realtek ALC1220 | — | — | Realtek ALC S1200A | Realtek ALC897 |
| BIOS memory size | 256 Mbit | 128 Mbit | — | 256 Mbit | 256 Mbit |
| Cables included | SATA | SATA | — | SATA | — |
| Canale audio | 7.1 | 7.1 | N/A | 7.1 | 7.1 |
| Chassis intrusion connector | Yes | Yes | — | — | — |
| Clear CMOS jumper | — | Yes | — | Yes | Yes |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | — | Intel® Xeon® | AMD Ryzen 3000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Component for | PC | PC | Server | Nettop | PC |
| CPU fan connector | Yes | Yes | — | Yes | Yes |
| Drivers included | — | Yes | — | Yes | — |
| ECC сompatibility | ECC & Non-ECC | Non-ECC | — | ECC | Non-ECC |
| EPS power connector (8-pin) | Yes | — | Yes | Yes | Yes |
| Front panel audio connector | Yes | Yes | — | Yes | Yes |
| Front panel connector | Yes | — | — | — | Yes |
| Harmonized System (HS) code | — | 84733020 | — | 84733020 | — |
| Headphone outputs | 1 | 3 | — | — | 1 |
| LAN controller | — | — | Intel X710-AT2 | Realtek RTL8125B | Realtek RTL8111H |
| Line-in | Yes | — | — | — | Yes |
| MB-Format | ATX | micro-ATX | — | ATX | — |
| MB-Socket | AM5 | 1700 | — | AM4 | — |
| Memorie maxima | 192 GB | 64 GB | 2 TB | 128 GB | 256 GB |
| Microphone in | Yes | Yes | — | — | Yes |
| Number of COM connectors | 1 | 1 | — | — | — |
| Number of CPU fan connectors | 2 | — | — | — | 2 |
| Number of HDDs supported | 4 | — | 10 | — | 4 |
| Number of M.2 (M) slots | 3 | 1 | 2 | 2 | 3 |
| Number of memory slots | 4 | 2 | 16 | 4 | 4 |
| Number of RGB LED pin headers | 3 | — | — | — | 4 |
| Number of water pump connectors | 1 | — | — | — | 2 |
| Onboard-CPU | No | No | — | — | No |
| Package depth | 273 mm | — | — | — | 270 mm |
| Package height | 68 mm | — | — | — | 80 mm |
| Package weight | 1.81 kg | — | 2.75 kg | — | 1.82 kg |
| Package width | 353 mm | — | — | — | 335 mm |
| Parallel processing technology support | Not supported | — | — | 2-Way CrossFireX | Not supported |
| PCI-Ex1 | 2 | — | — | 1 | — |
| PCI-Ex16 | 3 | 1 | — | 2 | — |
| PCI Express x1 (Gen 3.x) slots | — | 1 | — | 3 | — |
| PCI Express x16 (Gen 3.x) slots | — | — | — | 1 | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 | 1 | — | 1 | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 | — | 5 | — | — |
| PS/2 ports quantity | — | 2 | — | 1 | 1 |
| RAM-Slots | 4 | 2 | — | 4 | — |
| RJ-45 LAN | 1 | 1 | 2 | 1 | 1 |
| Serial-or-Paralel | No/No | No/No | — | No/No | No/No |
| Supported memory clock speeds | 8000 MHz | 2133,2400,2666,2800,2933,3000,3200 MHz | 4800,5600 MHz | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz | 4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz |
| TPM connector | — | Yes | Yes | Yes | Yes |
| Unbuffered memory | Yes | Yes | — | — | Yes |
| USB 2.0 connectors | 2 | 2 | 1 | 2 | 3 |
| USB3 | 4-8 | 4-8 | — | 4-8 | — |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 | 1 | 1 | 1 | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 | — | — | — | 1 |
| VGA (D-Sub) ports quantity | — | 1 | 1 | — | — |
| Video-Connection | — | VGA/DVI/HDMI | — | HDMI/DP | HDMI/DP |
| Windows operating systems supported | Windows 11 | Windows 10 x64, Windows 11 x64 | — | Windows 10 x64 | Windows 10 x64, Windows 11 x64 |
| Greutate | 1.32 kg | 842 g | 1.75 kg | 945 g | — |
| Rezoluție maximă | 7680 x 4320 pixels | 3840 x 2160 pixels | — | — | 4096 x 2160 pixels |
| Tip Memorie | DDR5 | DDR4 | DDR5 | DDR4 | DDR5 |
| Wi-Fi | Yes | — | — | No | No |
| Număr porturi RJ-45 | — | — | 2 | 1 | — |
| Număr porturi DisplayPort | 1 | — | — | 1 | 1 |
| Versiune DisplayPort | 1.4 | — | — | — | 1.4 |
| Gaming | Da | Nu | Nu | Da | Nu |
| Canale audio | 7.1 channels | 7.1 channels | — | 7.1 channels | 7.1 channels |
| Conectori ventilatoare carcasă | 4 | 1 | — | 3 | 3 |
| Conector RGB | Yes | — | — | — | Yes |
| Producător chipset audio | Realtek | Realtek | Realtek | Realtek | Realtek |
| Tip BIOS | UEFI AMI | UEFI AMI | — | UEFI AMI | UEFI AMI |
| Tip slot RAM | DIMM | DIMM | DIMM | DIMM | DIMM |
| Chipset placă de bază | AMD B850 | Intel H610 | Intel C741 | AMD B550 | AMD B650 |
| Interfețe stocare suportate | M.2, SATA III | M.2, SATA III | M.2, SATA III | M.2, SATA | M.2, SATA III |
| Niveluri RAID | 0, 1, 5, 10 | — | — | 0, 1, 10 | 0, 1, 10 |
| Număr unități stocare suportate | 7 | 5 | — | — | 7 |
| Tip sursă alimentare | ATX | — | — | — | ATX |
| Tipuri stocare suportate | HDD & SSD | HDD & SSD | HDD & SSD | — | HDD & SSD |
| Adâncime | 24.4 mm | 193 mm | 330.2 mm | 24.4 mm | 24.4 mm |
| Lățime | 30.5 mm | 226 mm | 304.8 mm | 30.5 mm | 30.5 mm |
| Înălțime | — | — | — | 6.8 mm | 35 mm |
| Bluetooth | Da | Nu | Nu | Nu | Nu |
| HDMI | Da | Da | Nu | Da | Da |
| Număr porturi HDMI | 1 | — | — | 1 | 1 |
| Număr porturi USB 2.0 | 2 | 2 | — | 2 | 6 |
| Porturi USB-A 3.2 Gen 1 | 4 | — | — | 4 | — |
| Porturi USB-A 3.2 Gen 2 | 3 | — | — | 1 | — |
| Rețea prin cablu (LAN) | Yes | — | Yes | Yes | Yes |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| USB-C | Da | Da | N/A | Da | Da |
| Versiune HDMI | 2.1 | 2.1 | — | — | 2.1 |
| Garanție comercială | 36 | 36 | 24 | 36 | 36 |
| Producător | ASUS | ASUS | ASUS | ASUS | GIGABYTE |
| Canale memorie RAM | Dual-channel | — | Octa-channel | Dual-channel | Dual-channel |
| Memorie RAM maximă | 192 GB | — | 2 TB | 128 GB | 256 GB |
| Producător procesor | AMD | — | Intel | AMD | AMD |
| Format placă de bază | ATX | micro ATX | Extended ATX | ATX | ATX |
| Model chipset | B850 | H610 | C741 | B550 | B650 |
| Număr sloturi RAM | 4 | 2 | 16 | 4 | 4 |
| Platformă chipset | AMD | Intel | Intel | AMD | AMD |
| Soclu procesor | Socket AM5 | Socket 1700 | Socket LGA 4677 | Socket AM4 | Socket AM5 |
| Tipuri RAM acceptate | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM |
| Grafică integrată | No | — | Yes | — | — |
| Socket procesor | Socket AM5 | LGA 1700 | LGA 4677 (Socket E) | Socket AM4 | Socket AM5 |
| Tip rețea Ethernet | 2.5 Gigabit Ethernet | Gigabit Ethernet | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | 2.5 Gigabit Ethernet | Gigabit Ethernet |
| Socketuri compatibile | Socket AM5 | LGA 1700 | — | Socket AM4 | Socket AM5 |
| Wireless | Da | Nu | N/A | Nu | Nu |
| Format | ATX | Micro-ATX | E-ATX | ATX | ATX |
| Număr porturi SATA III | 4 | 4 | 10 | 6 | 4 |
| Număr sloturi M.2 | 3 | 1 | 2 | 2 | 3 |
| Slot grafic PCI Express | PCIe 5.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | N/A | PCIe 3.0 x16 |
| Suport RAID | Yes | — | — | — | Yes |
Analiză inteligentă a produsului
Descriere oficială
Placa de Baza ASUS TUF GAMING B850-PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 2x PCIE 4.0 x16 2x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, ATX
Specificații tehnice 114 caracteristici ⌄
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 2280
- Antenna included
- Yes
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- Realtek ALC1220
- BIOS memory size
- 256 Mbit
- Cables included
- SATA
- Canale audio
- 7.1
- Chassis intrusion connector
- Yes
- Clear CMOS button
- Yes
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Component for
- PC
- CPU fan connector
- Yes
- ECC сompatibility
- ECC & Non-ECC
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Headphone outputs
- 1
- Line-in
- Yes
- MB-Format
- ATX
- MB-Socket
- AM5
- Memorie maxima
- 192 GB
- Microphone in
- Yes
- Number of COM connectors
- 1
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 2
- Number of HDDs supported
- 4
- Number of M.2 (M) slots
- 3
- Number of memory slots
- 4
- Number of RGB LED pin headers
- 3
- Number of water pump connectors
- 1
- Onboard-CPU
- No
- Package depth
- 273 mm
- Package height
- 68 mm
- Package weight
- 1.81 kg
- Package width
- 353 mm
- Parallel processing technology support
- Not supported
- PCI-Ex1
- 2
- PCI-Ex16
- 3
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Quick installation guide
- Yes
- RAM-Slots
- 4
- RJ-45 LAN
- 1
- Serial-or-Paralel
- No/No
- Supported memory clock speeds
- 8000 MHz
- Thunderbolt headers
- 1
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 2
- USB3
- 4-8
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- WiFi-AP antenna jack
- 2
- Windows operating systems supported
- Windows 11
- Greutate
- 1.32 kg
- Rezoluție maximă
- 7680 x 4320 pixels
- Tip Memorie
- DDR5
- Standarde Wi-Fi
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Număr porturi DisplayPort
- 1
- Versiune DisplayPort
- 1.4
- Gaming
- Da
- Canale audio
- 7.1 channels
- Conectori ventilatoare carcasă
- 4
- Conector RGB
- Yes
- Producător chipset audio
- Realtek
- Tip BIOS
- UEFI AMI
- Tip slot RAM
- DIMM
- Chipset placă de bază
- AMD B850
- Interfețe stocare suportate
- M.2, SATA III
- Niveluri RAID
- 0, 1, 5, 10
- Număr unități stocare suportate
- 7
- Tip sursă alimentare
- ATX
- Tipuri stocare suportate
- HDD & SSD
- Adâncime
- 24.4 mm
- Lățime
- 30.5 mm
- Bluetooth
- Da
- HDMI
- Da
- Număr porturi HDMI
- 1
- Număr porturi USB 2.0
- 2
- Porturi USB-A 3.2 Gen 1
- 4
- Porturi USB-A 3.2 Gen 2
- 3
- Rețea prin cablu (LAN)
- Yes
- Standard Wi-Fi
- Wi-Fi 7 (802.11be)
- Thunderbolt
- Nu
- USB-C
- Da
- Versiune Bluetooth
- 5.4
- Versiune HDMI
- 2.1
- Garanție comercială
- 36
- Producător
- ASUS
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 192 GB
- Producător procesor
- AMD
- Format placă de bază
- ATX
- Model chipset
- B850
- Număr sloturi RAM
- 4
- Platformă chipset
- AMD
- Soclu procesor
- Socket AM5
- Tipuri RAM acceptate
- DDR5-SDRAM
- Grafică integrată
- No
- Socket procesor
- Socket AM5
- Tip rețea Ethernet
- 2.5 Gigabit Ethernet
- Socketuri compatibile
- Socket AM5
- Wireless
- Da
- Format
- ATX
- Număr porturi SATA III
- 4
- Număr sloturi M.2
- 3
- Slot grafic PCI Express
- PCIe 5.0 x16
- Suport RAID
- Yes
Întrebări și răspunsuri 0 întrebări ⌄
Nu există întrebări încă.
Pune o întrebare despre produs
Recenzii clienți Nicio recenzie încă ⌄
0,0
☆☆☆☆☆
0 recenzii
- 5 ★ 0
- 4 ★ 0
- 3 ★ 0
- 2 ★ 0
- 1 ★ 0
Acest produs nu are încă recenzii.
Scrie o recenzie
Produse recomandate
-
Placa de baza Gigabyte B850M FORCE WIFI6E, Socket AM5, DDR5,
-
Placa de baza Gigabyte B840 GAMING X WIFI6E, Socket AM5,
-
Placa de baza Gigabyte B840 EAGLE WIFI6E, Socket AM5, DDR5,
-
Placa de baza Gigabyte X870E EAGLE X3D WIFI7, Socket AM5,
-
Placa de baza Gigabyte X870M AORUS ELITE WIFI7, Socket AM5,
-
Placa de baza Gigabyte X870E AORUS MASTER X3D, Socket AM5,
-
Placa de baza Gigabyte X870M AORUS ELITE WIFI7 ICE, Socket
-
Placa de baza Gigabyte X870 AORUS STEALTH, Socket AM5, DDR5,
-
Placa de baza Gigabyte Z890 D PLUS, LGA 1851, DDR5,
-
Placa de baza Gigabyte B760 DS3H GEN5, LGA 1700, DDR5,
Trebuie să fii autentificat pentru a publica un comentariu.
