Placa de baza MSI PRO B760M-A WIFI, Socket 1700, DDR5,
908,99 lei
Placa de baza MSI PRO B760M-A WIFI, Socket 1700, DDR5,
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: PRO B760M-A WIFI
Livrare și beneficii
Compară cu produse similare
Placa de baza MSI PRO B760M-A WIFI, Socket 1700, DDR5,
Placa de baza MSI PRO B860-P, LGA 1851, DDR5, ATX
853,99 lei 1.245,99 lei
Placa de baza MSI PRO B840M-B, Socket AM5, DDR5, Micro-ATX
551,99 lei
Placa de bază ASUS PRIME H610M-R D4 LGA1700
329,99 lei 453,99 lei
Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX
7.788,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza MSI PRO B760M-A WIFI, Socket 1700, DDR5, | Placa de baza MSI PRO B860-P, LGA 1851, DDR5, ATX | Placa de baza MSI PRO B840M-B, Socket AM5, DDR5, Micro-ATX | Placa de bază ASUS PRIME H610M-R D4 LGA1700 | Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 1st M.2 highest PCI Express generation | — | 5.0 | 4.0 | — | — |
| 1st M.2 largest key size | — | 2280 | 2280 | — | — |
| 2nd M.2 highest PCI Express generation | — | 4.0 | 4.0 | — | — |
| 2nd M.2 largest key size | — | 2280 | 2280 | — | — |
| ACPI version | 6.4 | 6.5 | 6.5 | — | — |
| ATX Power connector (24-pin) | Yes | — | — | Yes | Yes |
| Audio Chip | Realtek ALC897 | Realtek ALC897 | Realtek ALC897 | — | — |
| Audio output channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels | — |
| BIOS memory size | 256 Mbit | 256 Mbit | 256 Mbit | 128 Mbit | — |
| BIOS type | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI | — |
| Canale audio | 7.1 | 7.1 | 7.1 | 7.1 | N/A |
| Chipset audio integrat | Realtek | Realtek | Realtek | Realtek | Realtek |
| Clear CMOS jumper | Yes | — | — | Yes | — |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold | Intel Core Ultra (Series 2) | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | — | Intel® Xeon® |
| Component for | PC | PC | PC | PC | Server |
| CPU fan connector | Yes | Yes | — | Yes | — |
| ECC сompatibility | Non-ECC | Non-ECC | Non-ECC | Non-ECC | — |
| Ethernet interface type | 2.5 Gigabit Ethernet | 5 Gigabit Ethernet | 2.5 Gigabit Ethernet | Gigabit Ethernet | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 | — | 1 | — | 2 |
| Format | Micro-ATX | ATX | Micro-ATX | Micro-ATX | E-ATX |
| Front panel audio connector | Yes | — | — | Yes | — |
| Gaming | Nu | Nu | Nu | Nu | Nu |
| LAN controller | — | — | Realtek RTL8125D | — | Intel X710-AT2 |
| Memorie maxima | 192 GB | 256 GB | 128 GB | 64 GB | 2 TB |
| Memory slots type | DIMM | DIMM | DIMM | DIMM | DIMM |
| Model Chipset | B760 | B860 | B840 | H610 | C741 |
| Motherboard chipset | Intel B760 | Intel B860 | AMD B840 | Intel H610 | Intel C741 |
| Motherboard chipset family | Intel | AMD | AMD | Intel | Intel |
| Motherboard form factor | micro ATX | ATX | micro ATX | micro ATX | Extended ATX |
| Numar sloturi memorie | 4 | 4 | 2 | 2 | 16 |
| Number of chassis fan connectors | — | — | 5 | 1 | — |
| Number of CPU fan connectors | — | 1 | 1 | — | — |
| Number of HDDs supported | — | 4 | 4 | — | 10 |
| Number of M.2 (M) slots | — | 3 | 2 | 1 | 2 |
| Number of memory slots | 4 | 4 | 2 | 2 | 16 |
| Number of RGB LED pin headers | — | 3 | 3 | — | — |
| Number of SATA III connectors | 4 | 4 | 4 | 4 | 10 |
| Number of storage drives supported | — | 7 | 6 | 5 | — |
| Number of water pump connectors | — | 1 | 1 | — | — |
| On-board graphics card | — | — | No | — | Yes |
| Onboard-CPU | No | No | — | No | — |
| PCI Express x1 (Gen 3.x) slots | 2 | — | — | 1 | — |
| PCI Express x16 (Gen 4.x) slots | — | 3 | — | 1 | — |
| PCI Express x16 (Gen 5.x) slots | — | 1 | — | — | 5 |
| Processor socket | LGA 1700 | LGA 1851 (Socket V1) | Socket AM5 | LGA 1700 | LGA 4677 (Socket E) |
| RAID levels | 0, 1, 5, 10 | 0, 1, 5, 10 | 0, 1, 10 | — | — |
| RAID support | Yes | Yes | Yes | — | — |
| RGB LED pin header | Yes | Yes | Yes | — | — |
| RJ-45 LAN | 1 | 1 | 1 | 1 | 2 |
| Serial-or-Paralel | No/No | No/No | — | No/No | — |
| Sloturi M.2 | 2 | 3 | 2 | 1 | 2 |
| Soclu Procesor | Socket 1700 | Socket 1851 | Socket AM5 | Socket 1700 | Socket LGA 4677 |
| Supported memory clock speeds | 6800 MHz | 4800,6400,8800 MHz | 4800,5600,8000 MHz | 2133,2400,2666,2800,2933,3000,3200 MHz | 4800,5600 MHz |
| Supported memory types | DDR5-SDRAM | DDR5-SDRAM | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 | LGA 1851 | Socket AM5 | LGA 1700 | — |
| Supported storage drive interfaces | M.2, SATA III | M.2, Micro SATA III | M.2, Micro SATA III | M.2, SATA III | M.2, SATA III |
| Supported storage drive types | — | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD |
| System Management BIOS (SMBIOS) version | 3.5 | 3.7 | 3.7 | — | — |
| Tip Memorie | DDR5 | DDR5 | DDR5 | DDR4 | DDR5 |
| Tip slot interfata grafica | N/A | PCIe 5.0 x16 | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 |
| Total number of SATA connectors | — | 4 | 4 | — | — |
| TPM connector | Yes | — | — | Yes | Yes |
| USB 2.0 connectors | 4 | 4 | 4 | 2 | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 | 4 | 2 | 1 | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 | 1 | 1 | — | — |
| VGA (D-Sub) ports quantity | — | — | — | 1 | 1 |
| Video-Connection | HDMI/DP | HDMI/DP | — | VGA/DVI/HDMI | — |
| Wi-Fi | Yes | No | No | — | — |
| Windows operating systems supported | Windows 10, Windows 11 | Windows 11 x64 | Windows 11 x64 | Windows 10 x64, Windows 11 x64 | — |
| Wireless | Da | Nu | Nu | Nu | N/A |
| Caracteristici fizice | |||||
| Greutate | — | — | — | 842 g | 1.75 kg |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 243.8 mm | 304.8 mm | 243.8 mm | 193 mm | 330.2 mm |
| Lățime | 243.8 mm | 243.8 mm | 226 mm | 226 mm | 304.8 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Bluetooth | Yes | Nu | Nu | Nu | Nu |
| HDMI | Da | Da | Da | Da | Nu |
| Număr porturi HDMI | 2 | 1 | 1 | — | — |
| Număr porturi USB 2.0 | 2 | 4 | 2 | 2 | — |
| Rețea prin cablu (LAN) | Yes | Yes | Yes | — | Yes |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| USB-C | Da | Da | N/A | Da | N/A |
| Versiune HDMI | — | 2.1 | 2.1 | 2.1 | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 36 | 24 | 36 | 24 |
| Producător | MSI | MSI | MSI | ASUS | ASUS |
| Laptopuri - Memorie RAM 25.09 | |||||
| Canale memorie RAM | Dual-channel | Dual-channel | Dual-channel | — | Octa-channel |
| Memorie RAM maximă | 192 GB | 256 GB | 128 GB | — | 2 TB |
| Laptopuri - Procesor | |||||
| Producător procesor | Intel | Intel | AMD | — | Intel |
Analiză inteligentă a produsului
Descriere oficială

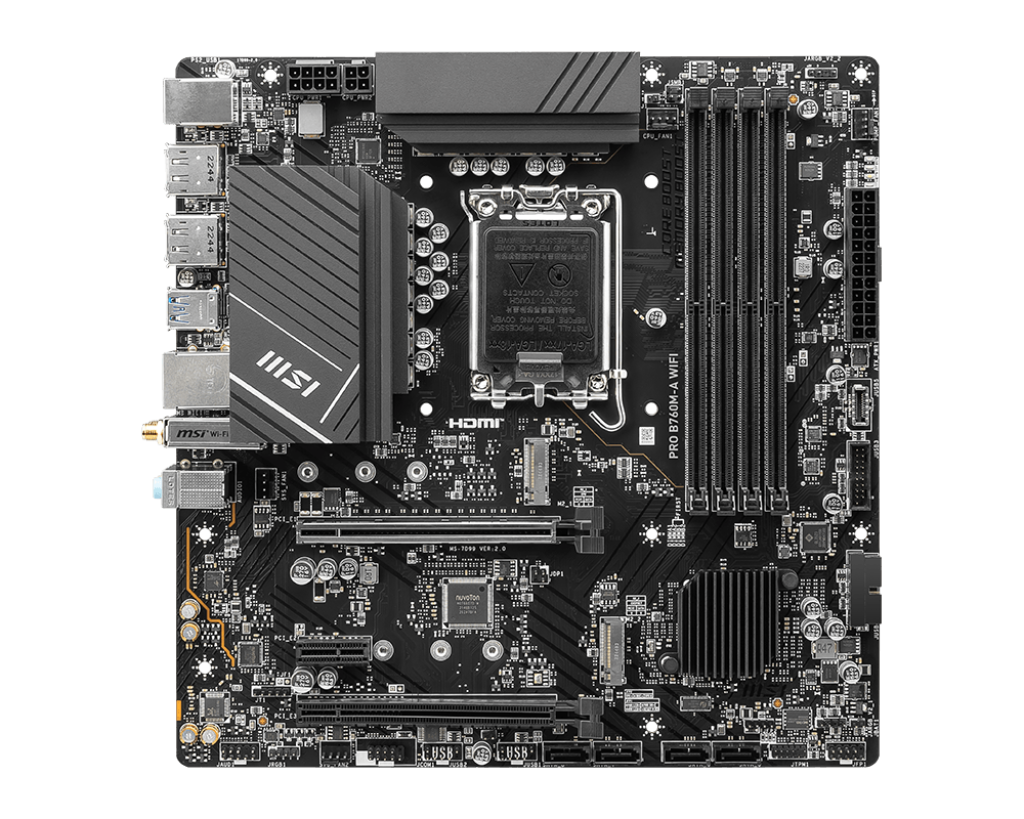

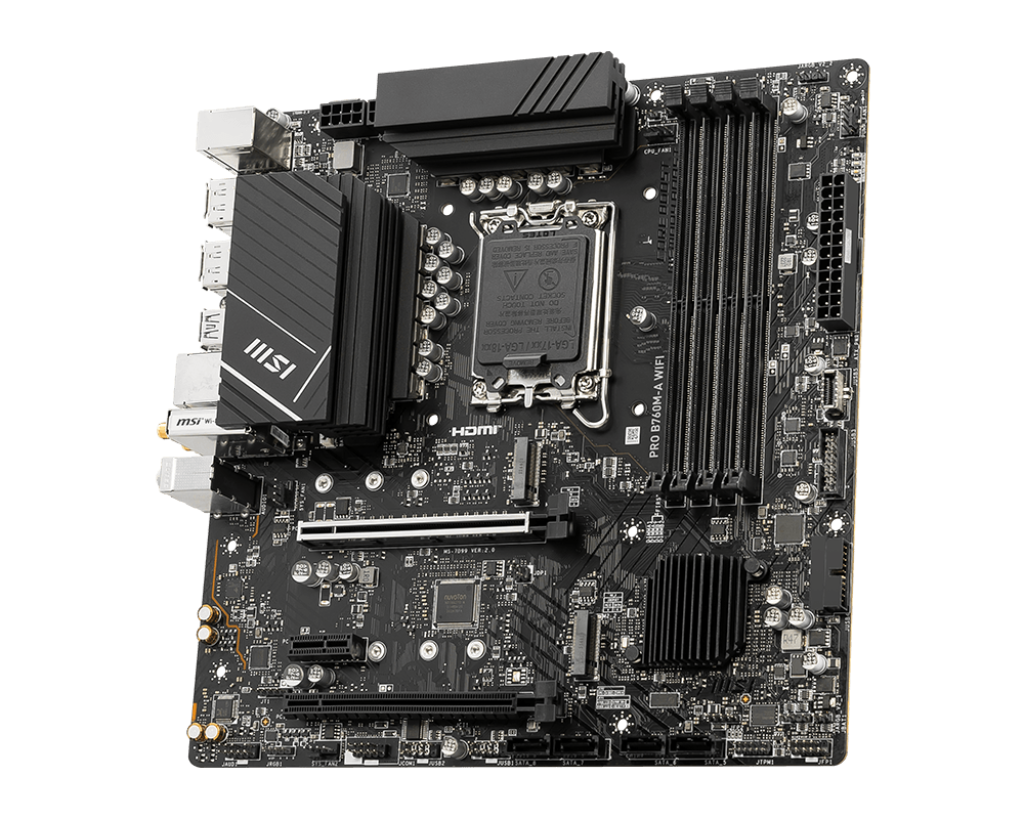

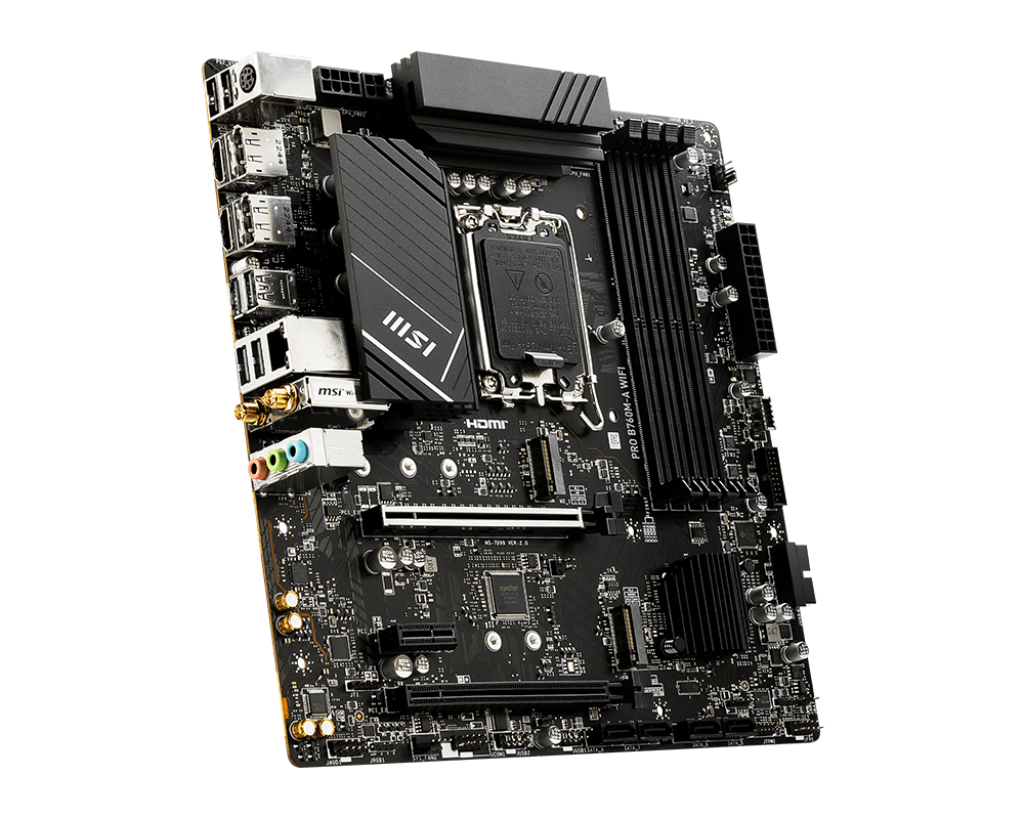

Placa de Baza MSI PRO B760M-A WIFI LGA1700, 4x DDR5, 2x PCIE x16 1x PCIE x1, 2x DP 2x HDMI, 2x M.2, 4x SATA 6GB/s, mATX
Specificații tehnice 73 caracteristici ⌄
- ACPI version
- 6.4
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Canale audio
- 7.1
- Chipset audio integrat
- Realtek
- Clear CMOS jumper
- Yes
- Compatible processor series
- Intel® Celeron®, Intel® Pentium® Gold
- Component for
- PC
- CPU fan connector
- Yes
- DisplayPorts quantity
- 2
- ECC сompatibility
- Non-ECC
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Format
- Micro-ATX
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Gaming
- Nu
- Maximum number of SMP processors
- 1
- Memorie maxima
- 192 GB
- Memory slots type
- DIMM
- Model Chipset
- B760
- Motherboard chipset
- Intel B760
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Numar sloturi memorie
- 4
- Number of memory slots
- 4
- Number of SATA III connectors
- 4
- Onboard-CPU
- No
- PCI Express x1 (Gen 3.x) slots
- 2
- Power source type
- ATX
- Processor socket
- LGA 1700
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- RGB LED pin header
- Yes
- RJ-45 LAN
- 1
- Serial-or-Paralel
- No/No
- Sloturi M.2
- 2
- Soclu Procesor
- Socket 1700
- Supported memory clock speeds
- 6800 MHz
- Supported memory types
- DDR5-SDRAM
- Supported processor sockets
- LGA 1700
- Supported storage drive interfaces
- M.2, SATA III
- System Management BIOS (SMBIOS) version
- 3.5
- Tip Memorie
- DDR5
- Tip slot interfata grafica
- N/A
- TPM connector
- Yes
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Video-Connection
- HDMI/DP
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Windows operating systems supported
- Windows 10, Windows 11
- Wireless
- Da
- Adâncime
- 243.8 mm
- Lățime
- 243.8 mm
- Bluetooth
- Yes
- HDMI
- Da
- Număr porturi HDMI
- 2
- Număr porturi USB 2.0
- 2
- Rețea prin cablu (LAN)
- Yes
- Standard Wi-Fi
- Wi-Fi 6 (802.11ax)
- Thunderbolt
- Nu
- USB-C
- Da
- Versiune Bluetooth
- 5.3
- Garanție comercială
- 36
- Producător
- MSI
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 192 GB
- Producător procesor
- Intel
