Sursa Spacer SP-MP-500, 80 PLUS, 500 W

Surse PC

Sursa Spacer SP-MP-500, 80 PLUS, 500 W

(0) În stoc
Vândut de RITC.ro Cod produs: SP-MP-500

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Sursa Spacer SP-MP-500, 80 PLUS, 500 W Sursa GIGABYTE UD850GM PG5 V2 ICE, 80+ Gold, 850W Sursa MSI PRO A1000PL PCIE5, 80 PLUS Platinum, 1000W Sursa MSI PRO A850PL PCIE5, 80 PLUS Platinum, 850 W Sursa Gigabyte GP-P750GM, 80 PLUS® Gold, 750W
Alte caracteristici
80 PLUS certification 80 PLUS 80 PLUS Gold 80 PLUS Platinum 80 PLUS Platinum 80 PLUS Gold
ATX power connector (20+4 pin) Yes — Yes Yes Yes
ATX Power connector (24-pin) — — No No —
ATX version 2.3 3.1 — — 2.31
Cabling type — Fully-Modular Fully-Modular Fully-Modular Fully-Modular
Certificare 80 Plus 80 PLUS 80 PLUS Gold 80 PLUS Platinum 80 PLUS Platinum 80 PLUS Gold
Combined power (+3.3V) — 105 W 100 W 100 W —
Combined power (+5V) — 105 W 100 W 100 W —
Combined power (+5Vsb) — 15 W 12.5 W 12.5 W —
Combined power (-12V) — 850 W 999.6 W 849.6 W —
Conectivitate Full - Modular Full - Modular Full - Modular Full - Modular Full - Modular
Cooling type — Active Active Active Active
CPU power cable length — 65 cm — — 60 cm
CPU power connector (4+4 pin) Yes Yes Yes Yes Yes
Depth — 140 mm 150 mm 150 mm 140 mm
Efficiency — 90% 92% 80Plus-Platinum 90%
EPS power connector (4+4 pin) — — Yes Yes Yes
Fan diameter 12 cm 12 cm 12 cm 12 cm 12 cm
Floppy disk drive connector — — No No —
Floppy drive power connector 1 1 — — 1
Garantie 24 24 — — 60
Height — 86 mm 86 mm 86 mm 86 mm
Hold time — 16 ms — — 16 ms
Iluminare RGB Nu Nu Nu Nu Nu
Input current — 12 - 6.5 A — — 12 - 6 A
Max output current (+3.3V) 16 A 20 A 20 A 20 A —
Max output current (+5V) 18 A 20 A 20 A 20 A —
Max output current (+5Vsb) 2 A 3 A 2.5 A 2.5 A —
Max output current (-12V) 15 A 70.8 A 70.8 A 70.8 A —
Mean time between failures (MTBF) — 100000 h — — 100000 h
Modular — — Yes Yes Yes
Motherboard power cable length — 61 cm 60 cm 60 cm 61 cm
Motherboard power connector 20+4 pin ATX 20+4 pin ATX 20+4 pin ATX 20+4 pin ATX 20+4 pin ATX
Number of fans 1 fan(s) 1 fan(s) 1 fan(s) 1 fan(s) 1 fan(s)
Number of SATA power connectors 3 8 6 6 8
On/off switch Yes Yes Yes Yes —
PCI Express connector — Yes — — Yes
PCI Express power cable length — 60 cm — — 60 cm
PCI Express power connectors (16-pin) 1 700 mm 3 3 4
Peripheral (Molex) power cable length — 150,500 mm — — 120,500 mm
Peripheral (Molex) power connectors (4-pin) 3 3 2 2 4
PFC Active PFC — Active Active Active
Power Factor Correction (PFC) type — Active Active Active Active
Power protection features — Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage — — Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor ATX ATX ATX ATX ATX
Product colour — White Black Black —
PSU Power 500 W 850 W 1000 W 850 W 750 W
PSU Type ATX ATX ATX ATX ATX
Purpose PC PC PC PC PC
SATA power cable length — 150,600 mm — — 150,600 mm
TOTAL-POWER 500 W 850 W 1000 W 850 W 750 W
Width — 150 mm 150 mm 150 mm 150 mm
Producator SPACER GIGABYTE MSI MSI GIGABYTE

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

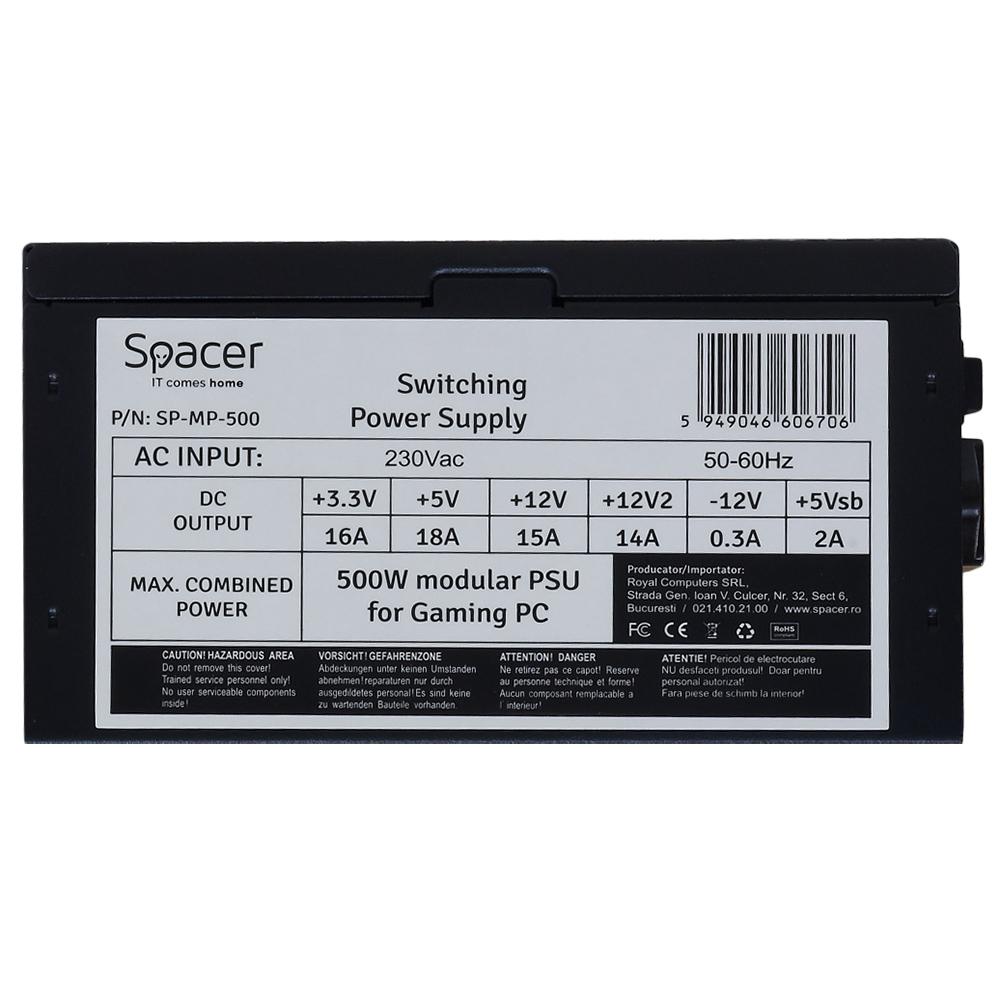

Sursa Spacer ATX Modulara 500W, fan 120mm, 1x PCI-E (6+2), 3x S-ATA, 1x P8 (4+4), „SP-MP-500”

Specificații tehnice 51 caracteristici
-12V
0.3 A
4+4 Pin ATX/EPS
1
6+2 PCI-E
1
24 Pin ATX
1
80 PLUS certification
80 PLUS
AC input voltage
230 V
ATX power connector (20+4 pin)
Yes
ATX version
2.3
Certificare
80+
Certificare 80 Plus
80 PLUS
Conectivitate
Full - Modular
CPU power connector (4+4 pin)
Yes
Eficienta
80 %
Fan diameter
12 cm
Floppy
1
Floppy drive power connector
1
Garantie
24
Iluminare RGB
Nu
Max output current (+3.3V)
16 A
Max output current (+5V)
18 A
Max output current (+5Vsb)
2 A
Max output current (+12V2)
14 A
Max output current (-12V)
15 A
Molex
3
Motherboard power connector
20+4 pin ATX
Numar de ventilatoare
1x 120 mm
Number of fans
1 fan(s)
Number of SATA power connectors
3
On/off switch
Yes
PCI Express power connectors (16-pin)
1
Peripheral (Molex) power connectors (4-pin)
3
Permite Asamblare
Premium, Gold
Permite Wire Management
Da
PFC
Active PFC
Power supply unit (PSU) form factor
ATX
PSU Power
500 W
PSU Type
ATX
Purpose
PC
Putere sursă
500 W
Recomandat Gaming
Da
SATA
3
Sursa Modulara
Full modulara
Tip sursa
ATX
TOTAL-POWER
500 W
Voltaj/Amperaj
100-240Vac
Producator
SPACER
+3.3V
18 A
+5V
18 A
+5Vsb
2 A
+12V 1
15 A
+12V 2
14 A
