Cablu Lindy LY-36482, DisplayPort 1.4, Anthra Line

Cabluri video

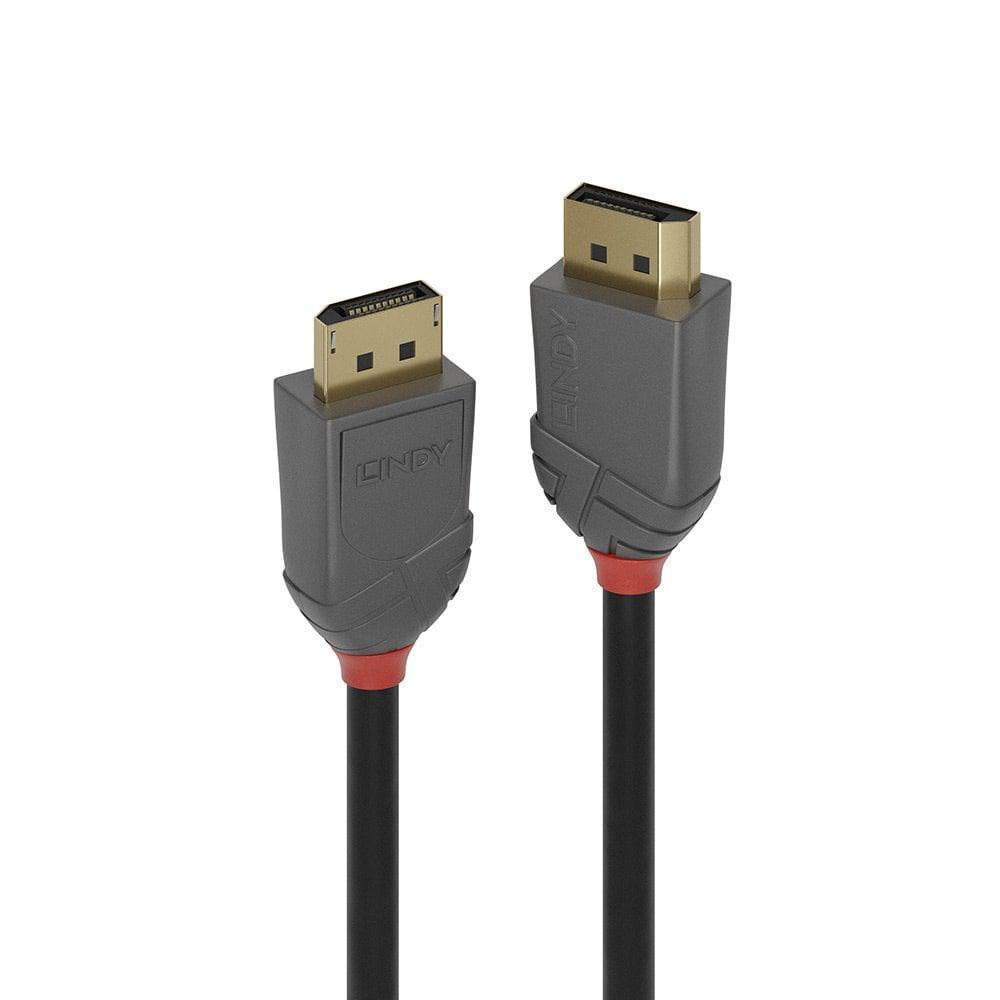

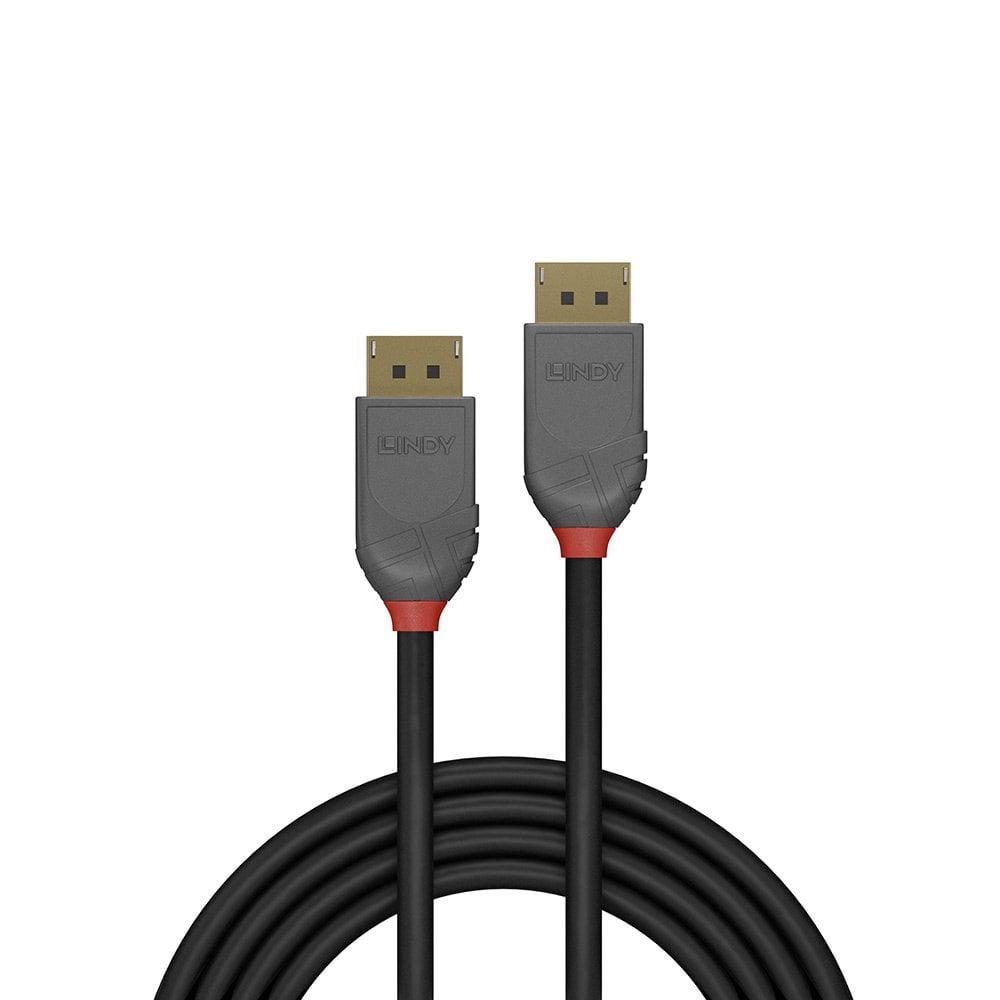

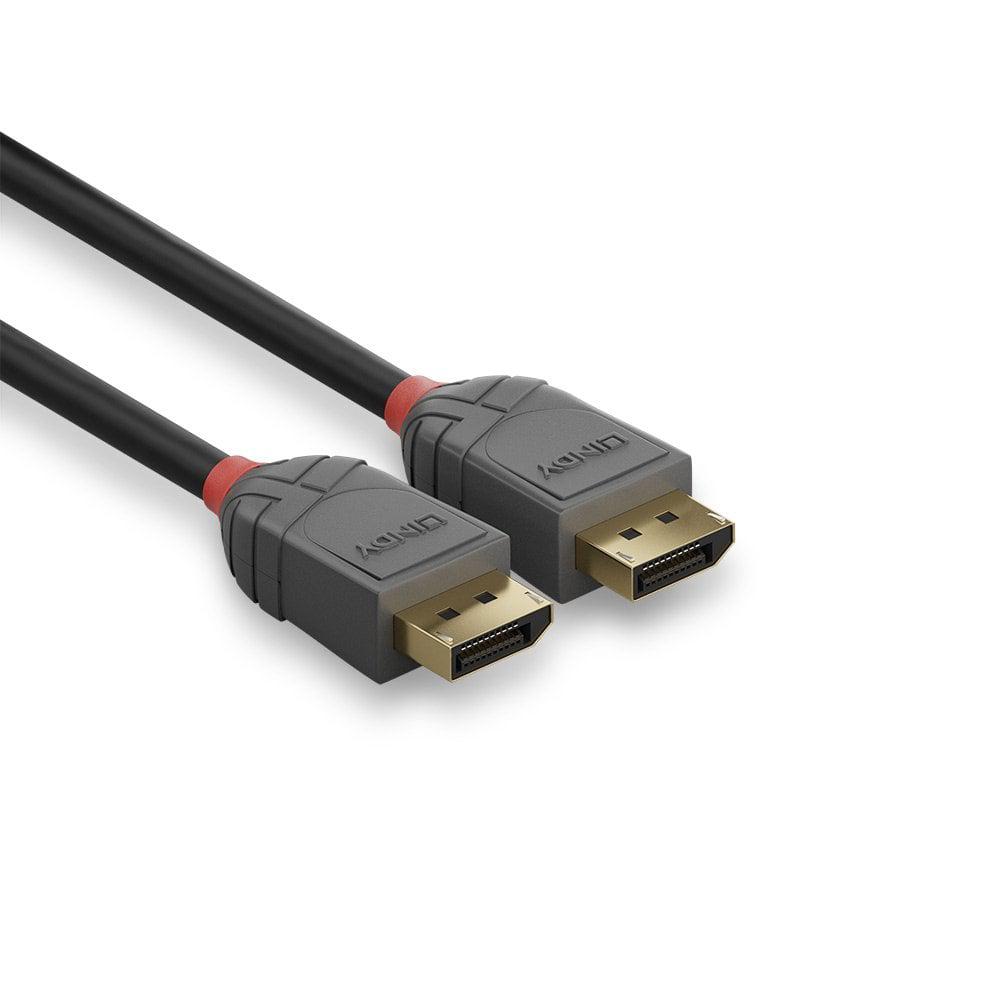

Cablu Lindy LY-36482, DisplayPort 1.4, Anthra Line

(0) În stoc
Vândut de RITC.ro Cod produs: LY-36482

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Cablu Lindy LY-36482, DisplayPort 1.4, Anthra Line Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Cablu Lindy, lungime 10m Micro-HDMI 8K60 LSZH, Maximum Resolution: Cablu Lindy, lungime 10m Micro-HDMI 8K60 LSZH, Maximum Resolution:
Alte caracteristici
AWG wire size 28 32 34 — —
Bend radius (min) 5.84 cm 2.88 cm 2.88 cm — —
Cable jacket material — — — Low smoke zero halogen (LSZH) Low smoke zero halogen (LSZH)
Cable length 2 m 1 m 2 m 10 m 15 m
Canal Ethernet Nu Nu Nu Nu Nu
Chipset — CS5565AN CS5565AN — —
Compliance certificates — CE, Federal Communications Commission (FCC), REACH, RoHS, UL CE, Federal Communications Commission (FCC), REACH, RoHS, UL — —
Conductor material — Tinned copper Tinned copper — —
Conector 1 DisplayPort USB Type C USB Type C HDMI HDMI
Conector 2 DisplayPort HDMI HDMI HDMI HDMI
Connector 1 DisplayPort USB Type-C USB Type-C HDMI Type D (Micro) HDMI Type D (Micro)
Connector 1 dimensions (WxDxH) 21 x 38.9 x 13.6 mm 39.6 x 12 x 6.5 mm 39.6 x 12 x 6.5 mm — —
Connector 1 form factor Straight Straight Straight — —
Connector 1 gender Male Male Male Male Male
Connector 2 DisplayPort HDMI HDMI HDMI Type D (Micro) HDMI Type D (Micro)
Connector 2 dimensions (WxDxH) — 71 x 21 x 11 mm 71 x 21 x 11 mm — —
Connector 2 form factor Straight Straight Straight — —
Connector 2 gender Male Male Male Male Male
Connector contacts plating Gold Gold Gold — —
Connector housing material Acrylonitrile butadiene styrene (ABS) Plastic Plastic Metal Metal
Data transfer rate 32.4 Gbit/s 48 Gbit/s 48 Gbit/s — —
Garantie 24 24 24 24 24
HDCP — Yes Yes — —
HDCP version — 2.2 2.2 — —
HDMI version — 2.1 2.1 — —
High Dynamic Range (HDR) supported — — — Yes Yes
Jacket material Polyvinyl chloride (PVC) Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) Polyvinyl chloride (PVC) — —
Lungime cablu 1.6m - 2m 1m - 1.5m 1.6m - 2m 5.1m - 10m 5.1m - 10m
MAXIMUM-RESOLUTION 7680 x 4320 pixels 7680 x 4320 pixels 7680 x 4320 pixels — —
Maximum refresh rate — 144 Hz 144 Hz 60 Hz 60 Hz
Operating temperature (T-T) — -20 - 40 °C -20 - 40 °C — —
Package type Polybag Polybag Polybag — —
Plug and Play — Yes Yes — —
Product colour Black Black Black Black Black
Quantity per pack — 1 pc(s) 1 pc(s) 1 pc(s) 1 pc(s)
Storage temperature (T-T) -25 - 85 °C -40 - 80 °C -40 - 80 °C — —
Supported graphics resolutions 4096 x 2160, 7680 x 4320 7860 x 4320, 3840 x 2160 7860 x 4320, 3840 x 2160 — —
Supported video modes — 4320p, 2160p 4320p, 2160p — —
USB Type-C DisplayPort Alternate Mode — Yes Yes — —
Producator LINDY LINDY LINDY LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DisplayPort Male
  • Housing Material: ABS
  • Connector Plating: 24K Gold 15µm
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 3µm
  • Dimensions (approx.) WxDxH: 21.0×38.9×13.6mm (0.83×1.53×0.54in)
Specificații tehnice 39 caracteristici
AWG wire size
28
Bend radius (min)
5.84 cm
Cable diameter
7.3 mm
Cable length
2 m
Cable material
Tinned copper
Cable shielding
Copper
Cable type
Round cable
Canal Ethernet
Nu
Certification
RoHS, REACH, UL
Colour sampling
4:2:2
Conector 1
DisplayPort
Conector 2
DisplayPort
Connector 1
DisplayPort
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
DisplayPort
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Connector material
Gold
Contact material
Phosphor bronze
Data transfer rate
32.4 Gbit/s
Depth
38.9 mm
DisplayPort version
1.4
Garantie
24
Harmonized System (HS) code
84733080
Height
13.6 mm
Jacket material
Polyvinyl chloride (PVC)
Lungime cablu
1.6m - 2m
MAXIMUM-RESOLUTION
7680 x 4320 pixels
Nominal attenuation
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Package type
Polybag
Product colour
Black
Storage temperature (T-T)
-25 - 85 °C
Supported graphics resolutions
4096 x 2160, 7680 x 4320
Width
21 mm
Producator
LINDY
