Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT:

Switchuri

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT:

(0) În stoc
Vândut de RITC.ro Cod produs: DS105GP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
Alte caracteristici
10G support No No No No Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 Hz —
AC input voltage — — — 220 V 220 V
Auto-negotiation Yes Yes Yes Yes —
Auto MDI/MDI-X Yes Yes Yes Yes —
Basic switching RJ-45 Ethernet ports type 5 Fast Ethernet (10/100) Fast Ethernet (10/100) Fast Ethernet (10/100) No
Cables included Power — AC — AC
Cable types supported — — Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e —
Compliance certificates CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX —
DC input voltage 53.5 V 5 V — 53.5 V —
Depth 98 mm 7.9 mm 180 mm 98 mm 180 mm
Ethernet LAN data rates 10,100,1000 Mbit/s — 10,100 Mbit/s — —
Fanless Yes Yes Yes Yes —
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support — Yes Yes Yes Yes
Forwarding rate 7.44 Mpps — 2.38 Mpps 0.744 Mpps 119.04 Mpps
Full duplex — Yes — Yes —
Garantie 36 36 36 60 60
Half duplex — Yes — Yes —
Harmonized System (HS) code — 85176990 85176990 85176990 —
Heat dissipation 254.01 BTU/h 6.99 BTU/h 7.03 BTU/h 5.73 BTU/h 52.75 BTU/h
Height 25 mm 22.5 mm 44 mm 25 mm —
Housing material Steel — Metal — —
IGMP snooping Yes — — — Yes
Input current 1.31 A 0.6 A — 1.31 A —
Jumbo frames 16 — — 2000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type FastEthernet FastEthernet FastEthernet — 10Gigabit
LED indicators Activity, Link, PoE, Power Yes Yes Yes Yes
MAC address table 2000 entries 1000 entries 8000 entries 2000 entries 32000 entries
Management nu nu nu nu Da
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C
Package depth — 139 mm 528 mm 196 mm —
Package height — 85 mm — 121 mm —
Package type — Box Box Box Box
Package weight — 240 g 2.28 kg 760 g —
Package width — 100 mm 250 mm 131 mm —
Packet buffer memory — 2 MB 2 MB — 16 MB
PoE Nu Nu Nu Da Nu
Porturi RJ 45 5-10 5-10 11-18 5-10 1-4
Porturi SFP N/A N/A N/A N/A 5-8
Power connector DC-in jack DC-in jack DC-in jack — DC-in jack
Power consumption (max) 74.54 W 2.2 W 2.23 W 63.51 W 15.46 W
Power over Ethernet (PoE) Yes No No Yes No
Power over Ethernet (PoE) ports quantity 4 — — 4 —
Power source AC/DC DC AC DC/PoE AC
Power supply included Yes No Yes Yes Yes
Product colour — White Black Black —
Quality of Service (QoS) support Yes — — — Yes
Quick start guide — Yes — — Yes
Rack mounting — No Yes No Yes
Rack mount kit — — Yes — Yes
Stackable — No No No —
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Sustainability compliance — Yes Yes Yes —
Switching capacity 10 Gbit/s 16 Gbit/s 32 Gbit/s 1 Gbit/s 160 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Managed
Total Power over Ethernet (PoE) budget 65 W — — 58 W —
Viteza transfer Gigabit Fast Ethernet Fast Ethernet Fast Ethernet 10G+
Width 99.8 mm 134.5 mm 440 mm 99.8 mm —
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

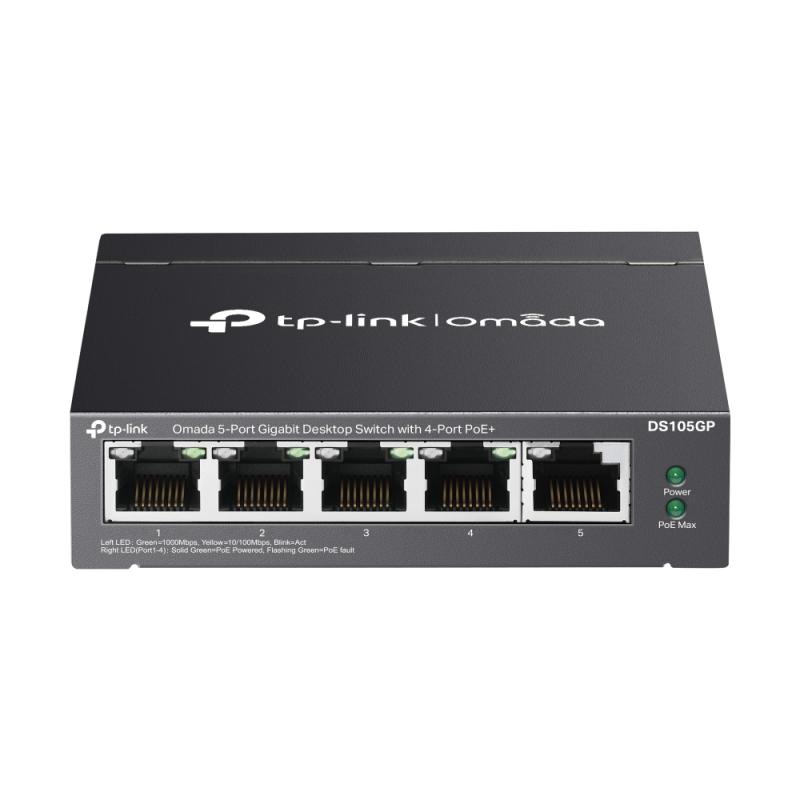

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Port SPEC: 802.3af/at, 65 W PoE Power, Desktop Steel Case FEATURE: Plug and Play

Specificații tehnice 48 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Cables included
Power
Compliance certificates
CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
53.5 V
Depth
98 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Fanless
Yes
Forwarding rate
7.44 Mpps
Garantie
36
Heat dissipation
254.01 BTU/h
Height
25 mm
Housing material
Steel
IGMP snooping
Yes
Input current
1.31 A
Jumbo frames
16
Jumbo frames support
Yes
LAN port type
FastEthernet
LED indicators
Activity, Link, PoE, Power
MAC address table
2000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
74.54 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power source
AC/DC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Reset button
Yes
Rubber feet
Yes
Storage relative humidity (H-H)
5 - 90%
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
65 W
Viteza transfer
Gigabit
Wall mountable
Yes
Width
99.8 mm
Producator
TP-LINK
