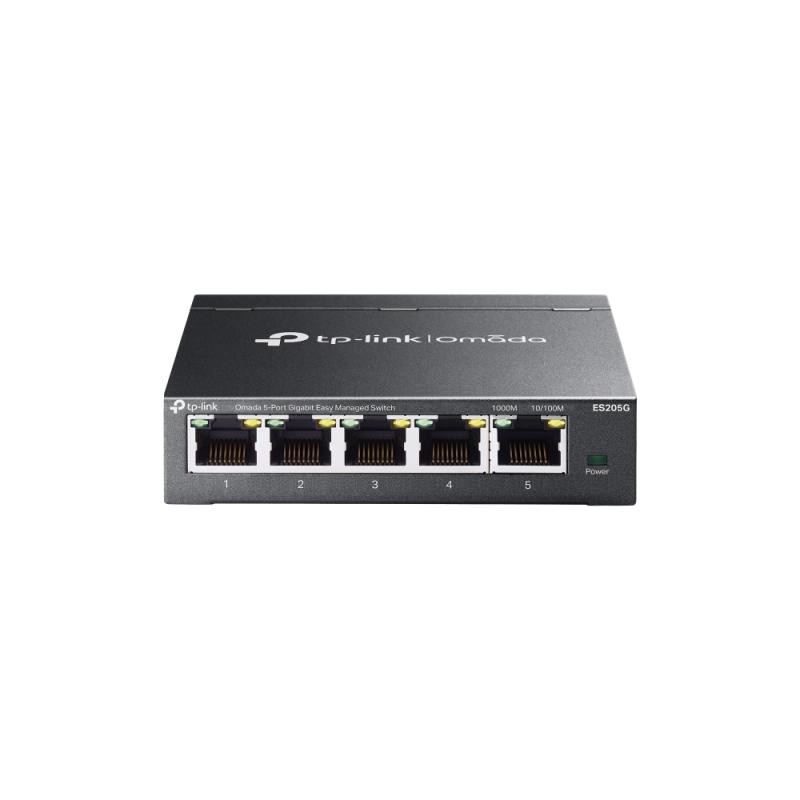

Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45

Switchuri

Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45

(0) În stoc
Vândut de RITC.ro Cod produs: ES205G

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45 Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 5 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control — — — Yes Yes
Cables included — — AC AC AC
Cloud-managed Yes — — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
DC input voltage 5 V 5 V — — —
Depth 98 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features DHCP client — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Fanless Yes Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support Yes Yes Yes Yes —
Forwarding rate 7.4 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Garantie 36 36 36 60 24
Harmonized System (HS) code — 85176990 85176990 — —
Heat dissipation — 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 25 mm 22.5 mm 44 mm — 44 mm
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames 15 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type FastEthernet FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
Loop protection Yes — — Yes —
MAC address filtering — — — Yes Yes
MAC address table 8000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management Da nu nu Da —
Montare in rack Nu Nu Nu Nu Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth — 139 mm 528 mm — —
Package type Box Box Box Box —
Package weight — 240 g 2.28 kg — —
Package width — 100 mm 250 mm — —
Packet buffer memory 4 MB 2 MB 2 MB 16 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 5-10 5-10 11-18 1-4 24-28
Porturi SFP 5-8 N/A N/A 5-8 3-4
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) — 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) Yes No No No No
Power source AC/DC DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour Black White Black — —
Quality of Service (QoS) support Yes — — Yes Yes
Quick start guide — Yes — Yes —
Rack mounting — No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity — — — 8 4
SSH/SSL support — — — Yes Yes
Stackable No No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 10 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Managed Unmanaged Unmanaged Managed Managed
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support Yes — — Yes Yes
Web-based management — — — Yes Yes
Width 100 mm 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Integration with Omada SDN Controller, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Specificații tehnice 60 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
DC input voltage
5 V
Depth
98 mm
DHCP features
DHCP client
Fanless
Yes
Flow control support
Yes
Forwarding rate
7.4 Mpps
Garantie
36
Height
25 mm
IGMP snooping
Yes
Jumbo frames
15
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
8000 entries
Management
Da
Montare in rack
Nu
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package type
Box
Packet buffer memory
4 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
5-8
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
4
Power source
AC/DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Rackable
No
Redundant PSU
No
Reset button
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
65 W
Transmission distance (max)
0.25 km
User guide
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Wall mountable
Yes
Width
100 mm
Producator
TP-LINK
