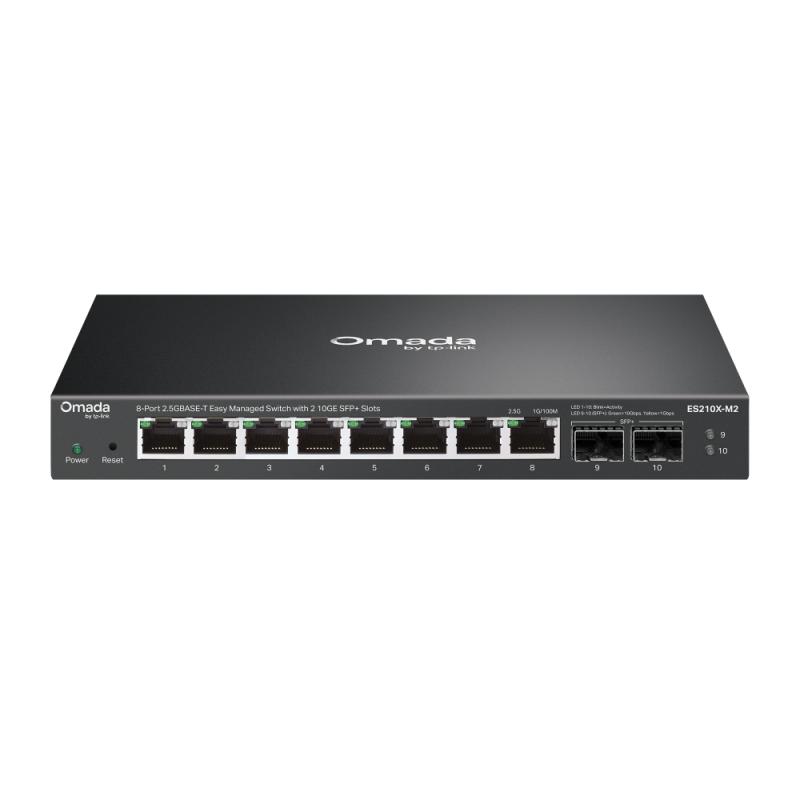

Omada 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+

Switchuri

Omada 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+

(0) În stoc
Vândut de RITC.ro Cod produs: ES210X-M2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+ Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Auto-negotiation — Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control Yes — — Yes Yes
Cables included — — AC AC AC
Cloud-managed — — — Yes Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 126 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features DHCP client — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Fanless — Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Firmware upgradeable Yes — — — Yes
Flow control support Yes Yes Yes Yes —
Form factor Desktop/Wall-Mounting — 1U — —
Forwarding rate 59.52 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Garantie 36 36 36 60 24
Harmonized System (HS) code — 85176990 85176990 — —
Heat dissipation — 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 26 mm 22.5 mm 44 mm — 44 mm
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type FastEthernet FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 16000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management Unmanaged nu nu Da —
Montare in rack Da Nu Nu Nu Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.1p IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth — 139 mm 528 mm — —
Package type — Box Box Box —
Package weight — 240 g 2.28 kg — —
Package width — 100 mm 250 mm — —
Packet buffer memory 0.64 MB 2 MB 2 MB 16 MB 12 MB
PoE No Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 5-10 5-10 11-18 1-4 24-28
Porturi SFP 1-2 N/A N/A 5-8 3-4
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) — 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) No No No No No
Power source DC DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour Black White Black — —
Quality of Service (QoS) support — — — Yes Yes
Quick start guide Yes Yes — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity 2 — — 8 4
SSH/SSL support — — — Yes Yes
Stackable No No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 80 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Managed Unmanaged Unmanaged Managed Managed
Virtual LAN features — — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer 2.5G Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support — — — Yes Yes
Web-based management — — — Yes Yes
Width 209 mm 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+ Slots PORT: 8× 2.5G RJ45 Ports，2× 10G SFP+ Slots SPEC: Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Specificații tehnice 46 caracteristici
10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Broadcast storm control
Yes
Depth
126 mm
DHCP features
DHCP client
Firmware upgradeable
Yes
Flow control support
Yes
Form factor
Desktop/Wall-Mounting
Forwarding rate
59.52 Mpps
Garantie
36
Height
26 mm
IGMP snooping
Yes
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
LED indicators
Yes
Link aggregation
Yes
MAC address table
16000 entries
Management
Unmanaged
Montare in rack
Da
Networking standards
IEEE 802.1p
Operating relative humidity (H-H)
10 - 90%
Packet buffer memory
0.64 MB
PoE
No
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black
Quick start guide
Yes
Rackable
No
Rack mounting
Yes
Redundant PSU
No
SFP module slots quantity
2
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
80 Gbit/s
Switch type
Managed
Viteza transfer
2.5G
Width
209 mm
Producator
TP-LINK
