Switch DSP3-1005-60W 5x 1 Gb PoE+ (4 porturi PoE

Switchuri

Switch DSP3-1005-60W 5x 1 Gb PoE+ (4 porturi PoE

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DSP3-1005-60W

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch DSP3-1005-60W 5x 1 Gb PoE+ (4 porturi PoE Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support — No No No No
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 Hz
Auto-negotiation Yes Yes Yes Yes Yes
Auto MDI/MDI-X Yes — Yes Yes Yes
Basic switching RJ-45 Ethernet ports type 5 8 Fast Ethernet (10/100) Fast Ethernet (10/100) Fast Ethernet (10/100)
Cable types supported — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e
Certification CE, RoHS CE, FCC — — —
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage 53 V — 5 V — 53.5 V
Depth 93 mm 8.2 mm 7.9 mm 180 mm 98 mm
Ethernet LAN data rates 10,1000 Mbit/s — — 10,100 Mbit/s —
Fanless — — Yes Yes Yes
Fast Ethernet (copper) ports quantity — — 8 16 —
Flow control support Yes — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate — — — 2.38 Mpps 0.744 Mpps
Full duplex Yes — Yes — Yes
Garantie 24 60 36 36 60
Half duplex Yes — Yes — Yes
Harmonized System (HS) code — — 85176990 85176990 85176990
Heat dissipation — — 6.99 BTU/h 7.03 BTU/h 5.73 BTU/h
Height 22.3 mm 27 mm 22.5 mm 44 mm 25 mm
Housing material Plastic Metal — Metal —
Input current 1.12 A 2.5 A 0.6 A — 1.31 A
LAN port type — Gigabit FastEthernet FastEthernet —
LED indicators Activity, LAN, Link, PoE, Power Yes Yes Yes Yes
MAC address table 2000 entries 4096 entries 1000 entries 8000 entries 2000 entries
Management — nu nu nu nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3x
Operating relative humidity (H-H) 0 - 85% 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — 139 mm 528 mm 196 mm
Package height — — 85 mm — 121 mm
Package type — — Box Box Box
Package weight — — 240 g 2.28 kg 760 g
Package width — — 100 mm 250 mm 131 mm
Packet buffer memory — — 2 MB 2 MB —
PoE — Da Nu Nu Da
Porturi RJ 45 5-10 5-10 5-10 11-18 5-10
Porturi SFP N/A N/A N/A N/A N/A
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) 65 W — 2.2 W 2.23 W 63.51 W
Power over Ethernet (PoE) Yes Yes No No Yes
Power over Ethernet (PoE) ports quantity 4 — — — 4
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power over Ethernet plus (PoE+) ports quantity 4 — — — 4
Power source AC AC DC AC DC/PoE
Power supply included Yes Yes No Yes Yes
Product colour Black Black White Black Black
Rack mounting No No No Yes No
Stackable — No No No No
Storage relative humidity (H-H) — 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes Yes
Sustainability compliance — — Yes Yes Yes
Switching capacity 10 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 1 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
Total Power over Ethernet (PoE) budget 60 W 60 W — — 58 W
Viteza transfer Gigabit Gigabit Fast Ethernet Fast Ethernet Fast Ethernet
Weight 540 g 500 g — — —
Width 65.7 mm 192 mm 134.5 mm 440 mm 99.8 mm
Producator LANBERG EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

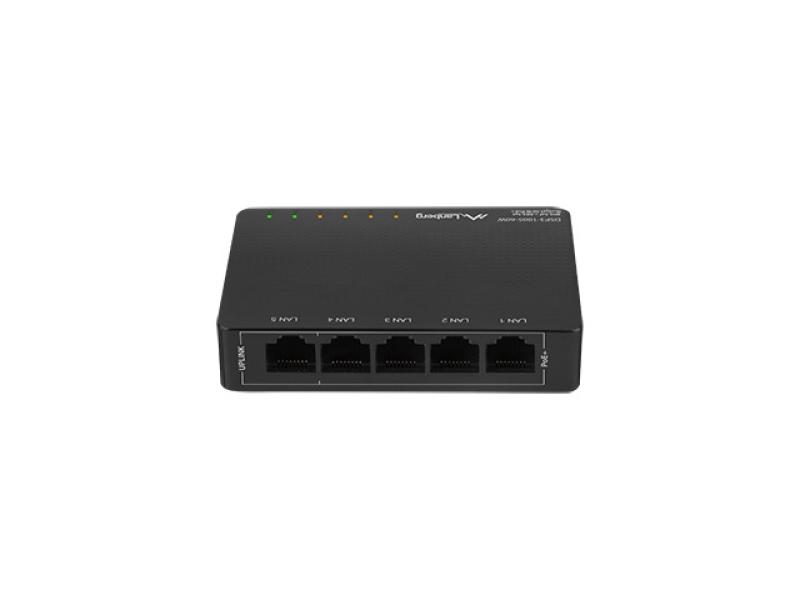

Switch DSP3-1005-60W 5x 1 Gb PoE+ (4 porturi PoE 30W/port, max. 60W), fara management, desktop

Specificații tehnice 44 caracteristici
AC input frequency
50 - 60 Hz
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Certification
CE, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
53 V
Depth
93 mm
Ethernet LAN data rates
10,1000 Mbit/s
Flow control support
Yes
Full duplex
Yes
Garantie
24
Gigabit Ethernet (copper) ports quantity
5
Half duplex
Yes
Height
22.3 mm
Housing material
Plastic
Input current
1.12 A
International Protection (IP) code
IP20
LED indicators
Activity, LAN, Link, PoE, Power
MAC address table
2000 entries
Montare in rack
Nu
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
0 - 85%
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
65 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
4
Power source
AC
Power supply included
Yes
Product colour
Black
Rack mounting
No
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
10 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
60 W
Uplink ports quantity
1
Viteza transfer
Gigabit
Wall mountable
Yes
Weight
540 g
Width
65.7 mm
Producator
LANBERG
