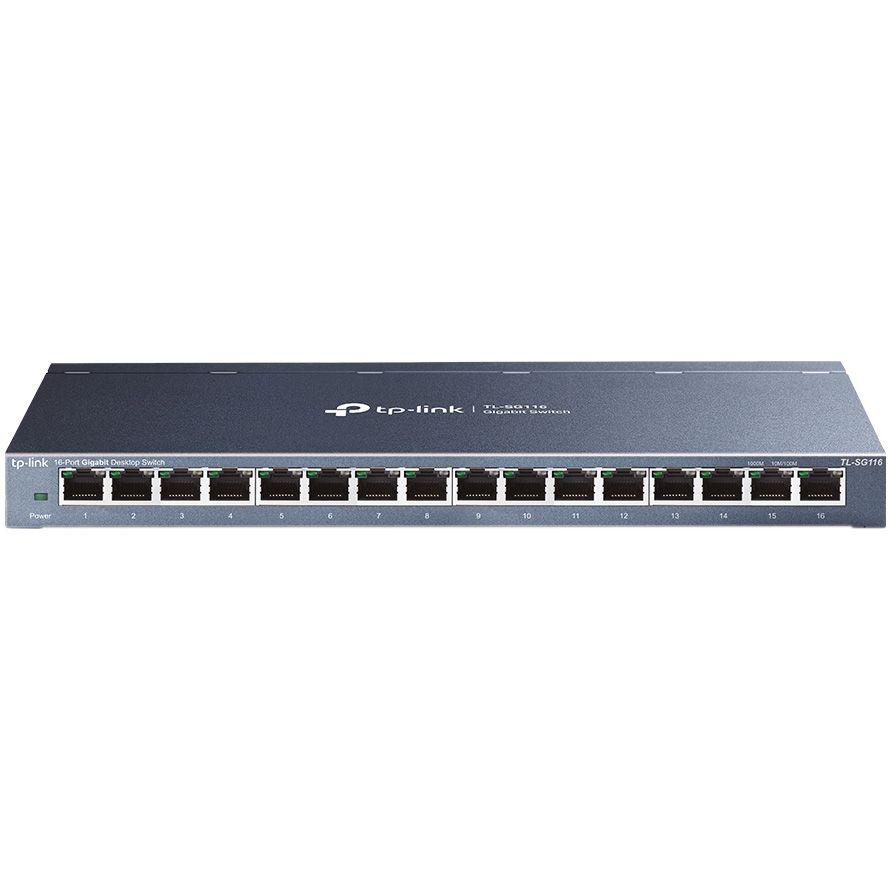

Switch TP-Link TL-SG116E, 16 port, 10/100/1000 Mbps

Switchuri

Switch TP-Link TL-SG116E, 16 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG116E

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SG116E, 16 port, 10/100/1000 Mbps Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 16 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control Yes — — Yes Yes
Cables included AC — AC AC AC
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e — —
Cloud-managed — — — Yes Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 111.7 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Fanless — Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support — Yes Yes Yes —
Forwarding rate 23.81 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Full duplex Yes Yes — — —
Garantie 60 36 36 60 24
Gigabit Ethernet (copper) ports quantity 16 — — — 24
Harmonized System (HS) code 85176990 85176990 85176990 — —
Heat dissipation 31.68 BTU/h 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 25.4 mm 22.5 mm 44 mm — 44 mm
Housing material Metal — Metal — —
IGMP snooping Yes — — Yes Yes
Input current 1 A 0.6 A — — —
IP-MAC-Port binding — — — Yes Yes
Jumbo frames 10000 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type Gigabit FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
Loop protection Yes — — Yes —
MAC address filtering — — — Yes Yes
MAC address table 8000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management nu nu nu Da —
Montare in rack Nu Nu Nu Nu Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of queues 4 — — 8 —
Number of VLANs 32 — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth 412 mm 139 mm 528 mm — —
Package height 70 mm 85 mm — — —
Package type — Box Box Box —
Package weight 1.36 kg 240 g 2.28 kg — —
Package width 170 mm 100 mm 250 mm — —
Packet buffer memory 4.1 MB 2 MB 2 MB 16 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 11-18 5-10 11-18 1-4 24-28
Porturi SFP N/A N/A N/A 5-8 3-4
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) 9.19 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) No No No No No
Power source DC DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour Black White Black — —
Quality of Service (QoS) support Yes — — Yes Yes
Quick start guide Yes Yes — Yes —
Rack mounting No No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Rate limiting Yes — — Yes —
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity — — — 8 4
SSH/SSL support — — — Yes Yes
Stackable — No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 32 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer L2 — — L2+/L3 L3
Switch type Unmanaged Unmanaged Unmanaged Managed Managed
Virtual LAN features Tagged VLAN, Protocol-based VLAN — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support Yes — — Yes Yes
Web-based management — — — Yes Yes
Width 286 mm 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
16x RJ-45
Porturi
16x RJ45
Viteza de transfer
10/100/1000 Mbps
Putere consumata
9.19 W
Alimentare
9VDC / 0.6A
Dimensiuni
286 x 111.7 x 25.4 mm
Memorie Buffer
4.1 Mb
Adrese MAC
8 K
Specificații tehnice 67 caracteristici
10G support
No
AC adapter included
Yes
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
16
Broadcast storm control
Yes
Cable length detection
Yes
Cables included
AC
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
111.7 mm
Forwarding rate
23.81 Mpps
Full duplex
Yes
Garantie
60
Gigabit Ethernet (copper) ports quantity
16
Harmonized System (HS) code
85176990
Heat dissipation
31.68 BTU/h
Height
25.4 mm
Housing material
Metal
IGMP snooping
Yes
Input current
1 A
Input voltage
12 V
Jumbo frames
10000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
8000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Number of queues
4
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
412 mm
Package height
70 mm
Package weight
1.36 kg
Package width
170 mm
Packet buffer memory
4.1 MB
Plug and Play
Yes
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
11-18
Porturi SFP
N/A
Power consumption (max)
9.19 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
No
Rate limiting
Yes
Rubber feet
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
32 Gbit/s
Switch layer
L2
Switch type
Unmanaged
Virtual LAN features
Tagged VLAN, Protocol-based VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Width
286 mm
Producator
TP-LINK
