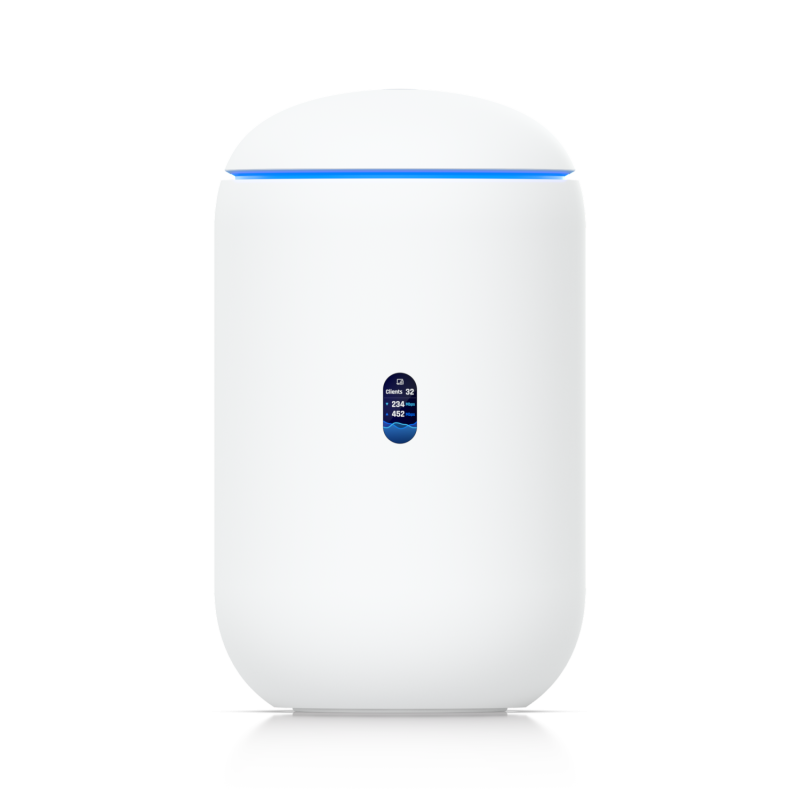

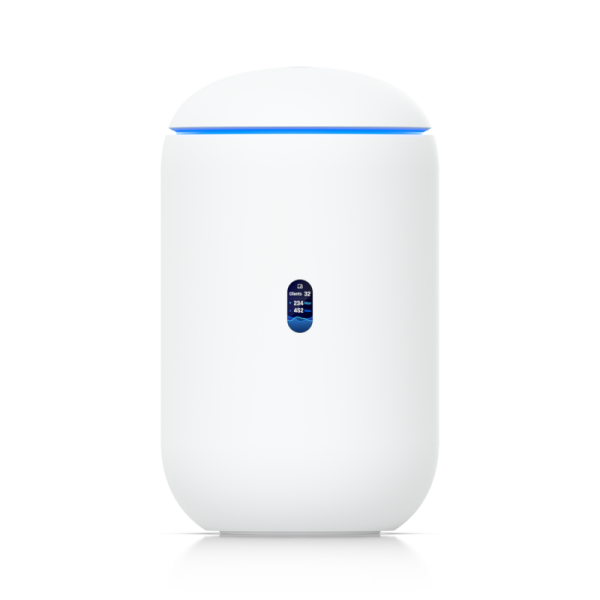

UBIQUITI UDR7 DESKTOP 10G CLOUD GATEWAY, WIFI 7, POE SWITCH,

Switchuri

UBIQUITI UDR7 DESKTOP 10G CLOUD GATEWAY, WIFI 7, POE SWITCH,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: UDR7 DESKTOP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică UBIQUITI UDR7 DESKTOP 10G CLOUD GATEWAY, WIFI 7, POE SWITCH, Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G CUDY 8-Port Gigabit Light Managed Switch, 8 10/100/1000M RJ45 Ports,
Alte caracteristici
10G support — — No Yes —
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
Authentication type — IEEE 802.1x, RADIUS — AAA, TACACS+ —
Auto MDI/MDI-X — Yes Yes — —
Basic switching RJ-45 Ethernet ports type — 24 48 No —
Broadcast storm control — — Yes Yes —
Cables included AC — — AC —
Certification — CE, FCC, IC UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL — —
Console port — — RJ-45 RJ-45/micro-USB —
Depth 110 mm 200 mm 322 mm 180 mm —
DHCP features — — DHCP client DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support — Yes Yes Yes —
Form factor — 1U 1U — —
Forwarding rate — 38.69 Mpps — 119.04 Mpps 11.904 Mpps
Garantie 24 24 24 60 24
Harmonized System (HS) code — 85176990 85176990 — —
Head-of-line (HOL) blocking — — Yes Yes —
Height 184.1 mm 43.7 mm 43.5 mm — —
IGMP snooping — — Yes Yes —
Internal memory 3000 MB — 32 MB — —
Jumbo frames support — Yes Yes Yes —
LAN ports 48 24 48 — 8
LAN port type Gigabit 10Gigabit Gigabit 10Gigabit Gigabit
Layer Layer-2 Layer-2 Layer-2 — Layer-2
LED indicators Status Activity, Link, PoE, Speed, System Yes Yes Power, Speed, Link, ACT
Link aggregation — — Yes Yes —
MAC address filtering — — Yes Yes —
MAC address table 2000 entries — 8000 entries 32000 entries —
Management Da Da Da Da Da
Management protocols — — IGMP, SNMP, FTP SNMPv1/v2c/v3, SNTP —
MIB support — — RFC 1213, RFC 1643, RFC 1493 RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 —
Montare in rack Nu Da Da Nu Nu
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.1Q IEEE 802.3af, IEEE 802.3at — IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x —
Operating relative humidity (H-H) 5 - 95% 10 - 90% 5 - 90% 10 - 90% —
Operating temperature (T-T) — — 0 - 40 °C 0 - 45 °C —
Packet buffer memory — — 6 MB 16 MB —
PoE Nu Da Nu Nu Nu
Port mirroring — Yes Yes Yes —
Porturi RJ 45 1-4 24-28 28+ 1-4 8 10/100/1000M RJ45 Ports
Porturi SFP N/A 1-2 1-2 5-8 N/A
Power connector — — DC-in jack DC-in jack —
Power over Ethernet (PoE) Yes Yes No No —
Power supply included — Yes — Yes —
Product colour White Silver Grey — —
Quality of Service (QoS) support Yes — Yes Yes —
Rackable Yes Yes Yes — No
Rack mounting — Yes Yes Yes —
Rate limiting — — Yes Yes —
Redundant PSU No No No — No
Security algorithms PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 — — HTTPS, SSH, SSH-2, SSL/TLS —
SFP module slots quantity — 2 — 8 —
Spanning tree protocol — Yes Yes Yes —
Stackable No Yes No — No
Static port security — — Yes Yes —
Static route — Yes — Yes —
Storage relative humidity (H-H) — — 5 - 95% 5 - 90% —
Storage temperature (T-T) — — -25 - 70 °C -40 - 70 °C —
Switching capacity — 52 Gbit/s — 160 Gbit/s —
Switch layer — — L2 L2+/L3 —
Switch type — Managed Managed Managed —
Throughput — 26000 Mpps 14.88 Mpps — —
Viteza transfer 10G+ Gigabit Gigabit 10G+ Gigabit
VLAN support — Yes Yes Yes —
Web-based management Yes — Yes Yes —
Weight 1.1 kg 3 kg 4.05 kg — —
Width 110 mm 442.4 mm 444 mm — —
Producator UBIQUITI UBIQUITI ALLIED TELESIS TP-LINK CUDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

UBIQUITI UDR7 DESKTOP 10G CLOUD GATEWAY, WIFI 7, POE SWITCH, MICROSD

Specificații tehnice 79 caracteristici
3G/4G USB modem compatibility
No
Antenna design
Internal
Antenna gain level (max)
7 dBi
Bluetooth
Yes
Built-in display
Yes
Built-in processor
Yes
Cables included
AC
Compatible memory cards
MicroSD (TransFlash)
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Depth
110 mm
DHCP server
Yes
Display type
LCM
DSL WAN
No
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
4
Ethernet LAN data rates
2500 Mbit/s
Ethernet LAN interface type
2.5 Gigabit Ethernet
Ethernet WAN
Yes
Filtering
Yes
Firewall
Yes
Garantie
24
Height
184.1 mm
Housing material
Polycarbonate (PC)
Internal memory
3000 MB
LAN ports
48
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Status
Load balancing system
Yes
MAC address table
2000 entries
Management
Da
Manual
Yes
Maximum coverage
160 m²
Maximum Tx power (2.4 GHz)
23 dBmW
Maximum Tx power (5 GHz)
26 dBmW
Memory card slot(s)
Yes
MIMO
Yes
Montare in rack
Nu
MU-MIMO technology
Yes
Multicast support
Yes
Networking standards
IEEE 802.1Q
Number of products included
1 pc(s)
Number of simultaneously connected devices (max)
300
Operating relative humidity (H-H)
5 - 95%
PoE
Nu
Policy-based routing
Yes
Porturi RJ 45
1-4
Porturi SFP
N/A
Power consumption (typical)
26 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
57 V
Power source type
AC, PoE
Power Supply
50 W
Processor architecture
ARM Cortex-A53
Processor cores
4
Processor frequency
1500 MHz
Product colour
White
Product type
Tabletop router
Quality of Service (QoS) support
Yes
Rackable
Yes
Redundant PSU
No
Reset button
Yes
Routing protocols
OSPF
Security algorithms
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
SIM card slot
No
Stackable
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
USB-Port
No
Viteza transfer
10G+
VPN server
Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
Web-based management
Yes
Weight
1.1 kg
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Width
110 mm
WLAN data transfer rate (first band)
688 Mbit/s
WLAN data transfer rate (max)
5700 Mbit/s
WLAN data transfer rate (second band)
4300 Mbit/s
WLAN data transfer rate (third band)
5700 Mbit/s
Producator
UBIQUITI
