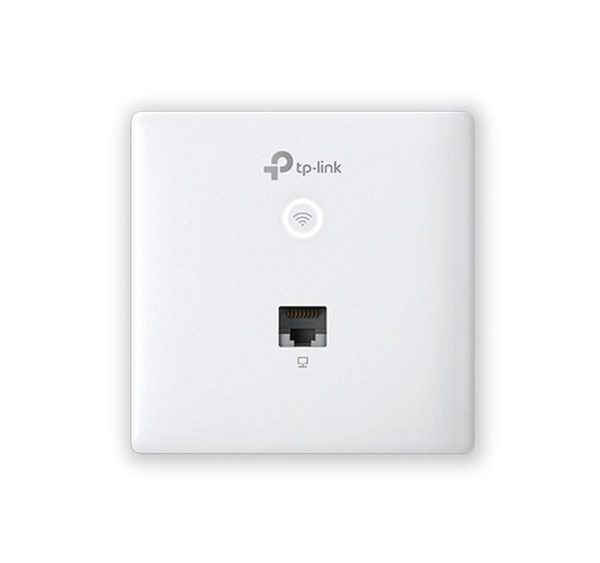

Access point TP-Link EAP230-WALL, Gigabit, PoE, Dual-band, WI-FI

Access point & Range Ext.

Access point TP-Link EAP230-WALL, Gigabit, PoE, Dual-band, WI-FI

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: EAP230-WALL

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Access point TP-Link EAP230-WALL, Gigabit, PoE, Dual-band, WI-FI Access point TP-Link EAP115-WALL, Fast Ethernet, Poe, Single-Band Access Point TP-Link EAP620 HD-Outdoor, AX1800, Dual-Band, Gigabit Access point TP-Link EAP772, Poe, Triple-band, WiFi 7 - BE Access point TP-Link EAP725-Outdoor, Gigabit, PoE, Dual-band, Wi-Fi 7
Alte caracteristici
2.4 GHz Yes Yes Yes Yes Yes
5 GHz Yes No Yes Yes Yes
6 GHz No No No Yes No
Access Control List (ACL) Yes Yes Yes Yes —
Airtime Fairness (ATF) — — Yes Yes —
Antena Interna & Externa Interna Interna Interna Interna & Externa
Antenna direction type — Omni-directional Omni-directional — —
Antenna features Integrated antenna Integrated antenna — — —
Antenna gain level (max) 3.6 dBi 18 dBi — — 13.2 dBi
Antennas quantity 2 2 — — 8
Antenna type Internal Internal Internal Internal Internal & external
AP-Type Managed — — — Standalone
Automatic channel scanning Yes — Yes — —
Automatic channel selection Yes Yes Yes — —
Band steering Yes — Yes — Yes
BeamForming Yes — Yes Yes Yes
Bluetooth — — — Yes Yes
Cabling technology 10/100/1000Base-T(X) 10/100Base-T(X) 10/100/1000Base-T(X) — 10/100/1000/2500Base-T
Compatibil Mesh Nu Nu N/A Da N/A
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 — — —
Compliance certificates CE, RoHS CE, RoHS — — BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI
Depth 86.8 mm 302 mm 160 mm 220 mm 160 mm
Ethernet LAN (RJ-45) ports 1 2 1 1 1
Ethernet LAN data rates 10,100,1000 Mbit/s 10,100 Mbit/s 10,100,1000 Mbit/s 2500 Mbit/s 10,100,1000,2500 Mbit/s
Frequency-Band 2.4 - 5 GHz 2.4 - 2.4835 GHz 2.4 - 5 GHz — —
Harmonized System (HS) code 85176990 85176990 — — —
Height 30.2 mm 86.8 mm 33 mm 32.5 mm 55 mm
LED indicators Operation Yes Yes Yes Status
MAC address filtering Yes Yes Yes Yes Yes
Maximum data transfer rate 1167 Mbit/s 300 Mbit/s 1201 Mbit/s 5760 Mbit/s 4324 Mbit/s
MIMO Yes — Yes Yes —
MIMO type Multi User MIMO — Multi User MIMO Multi User MIMO —
Mounting kit Yes Yes Yes Yes Yes
Networking standards IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n —
Numar porturi 1-3 1-3 1-3 1-3 1-3
Number of SSID supported 16 8 — 24 16
Number of users — — 1020 user(s) 380 user(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C -30 - 70 °C
Package depth 130 mm 130 mm — — —
Package height 47 mm 47 mm — — —
Package weight 210 g 190 g — — —
Package width 118 mm 118 mm — — —
Placement Wall Wall Ceiling, Wall Ceiling, Wall Pole, Wall
PoE — — — Da Yes
Power consumption (max) 255 W — — — 18.4 W
Power consumption (typical) 9 W 28 W — — —
Power over Ethernet (PoE) Yes Yes Yes — Yes
Power over Ethernet (PoE) type supported — Passive PoE Active PoE, Passive PoE — PoE+
Quality of Service (QoS) support Yes Yes Yes Yes Yes
Quantity per pack 2 pc(s) — 1 pc(s) 1 pc(s) 1 pc(s)
Quick start guide Yes Yes Yes — —
Rate limiting Yes Yes Yes — Yes
Remote Authentication Dial-In User Service (RADIUS) — — Yes Yes —
Reset button Yes Yes Yes — Yes
Security algorithms 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK — —
Service Set Identifier (SSID) features Multiple SSIDs Multiple SSIDs — Multiple SSIDs Multiple SSIDs
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Sustainability compliance Yes Yes — — —
Syslog Yes Yes Yes — Yes
Tehnologie WI-FI WI-FI N/A WiFi 6 - AX WiFi 7 - BE Wi-Fi 7
Virtual LAN features Port-based VLAN, VLAN mapping Port-based VLAN, VLAN mapping — — Management VLAN
Viteza Transport Gigabit Fast Ethernet Gigabit N/A Gigabit
VLAN support Yes Yes Yes Yes Yes
WAN connection Ethernet (RJ-45) Ethernet (RJ-45) — — —
Web-based management Yes Yes Yes Yes Yes
Wi-Fi Multimedia (WMM)/(WME) Yes Yes — — Yes
Width 86.8 mm 86.8 mm 160 mm 220 mm 208 mm
WiFi Frequency 2.4/5-GHz — — — 2.4/5-GHz
WiFI standard ac — — — be
Wireless isolation — Yes — — Yes
Laptopuri - Conectivitate
Versiune Bluetooth — — — 5.2 5.2
Laptopuri - Construcție
Culoare White White White White White
Laptopuri - Generale
Garanție comercială 60 60 24 60 60
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Wireless Access Point TP-Link EAP230-WALL, 1× 10/100/1000 Mbps Ethernet Port, 802.3af/802.3at PoE, 2 Dual-Band Antennas, 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 3.6 dBi, Mounting: Wall Plate Mounting, Wireless Standards: IEEE 802.11n/g/b/ac, 5 GHz: 867 Mbps, 2.4 GHz: 300 Mbps, Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point.

Specificații tehnice 67 caracteristici
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Access Control List (ACL)
Yes
Antena
Interna & Externa
Antenna features
Integrated antenna
Antenna gain level (max)
3.6 dBi
Antennas quantity
2
Antenna type
Internal
AP-Type
Managed
Automatic channel scanning
Yes
Automatic channel selection
Yes
Band steering
Yes
BeamForming
Yes
Cabling technology
10/100/1000Base-T(X)
Compatibil Mesh
Nu
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Compliance certificates
CE, RoHS
Depth
86.8 mm
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency-Band
2.4 - 5 GHz
Harmonized System (HS) code
85176990
Height
30.2 mm
LED indicators
Operation
MAC address filtering
Yes
Maximum data transfer rate
1167 Mbit/s
MIMO
Yes
MIMO type
Multi User MIMO
Mounting kit
Yes
Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Numar porturi
1-3
Number of SSID supported
16
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
130 mm
Package height
47 mm
Package weight
210 g
Package width
118 mm
Placement
Wall
Power consumption (max)
255 W
Power consumption (typical)
9 W
Power over Ethernet (PoE)
Yes
Quality of Service (QoS) support
Yes
Quantity per pack
2 pc(s)
Quick start guide
Yes
Rate limiting
Yes
Reset button
Yes
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Service Set Identifier (SSID) features
Multiple SSIDs
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Syslog
Yes
Tehnologie WI-FI
WI-FI
Virtual LAN features
Port-based VLAN, VLAN mapping
Viteza Transport
Gigabit
VLAN support
Yes
WAN connection
Ethernet (RJ-45)
Web-based management
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Width
86.8 mm
WiFi Frequency
2.4/5-GHz
WiFI standard
ac
Culoare
White
Garanție comercială
60
Producător
TP-LINK
