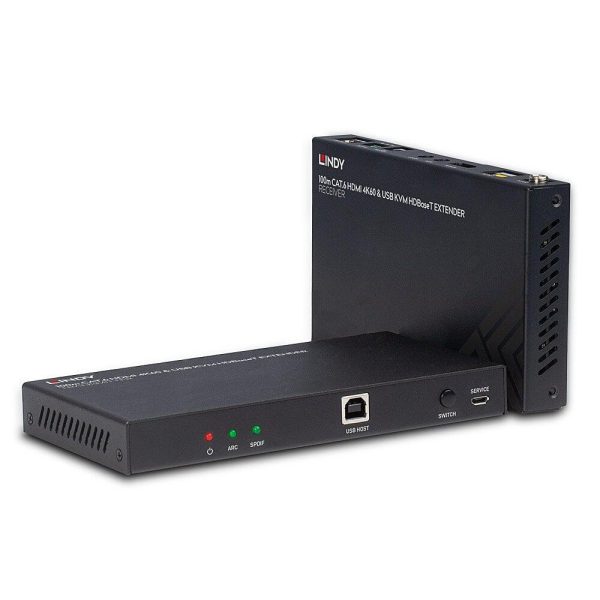

Lindy LY-38343 KVM Extender 100m Cat.6 HDMI 4K60, Audio, IR

Switchuri KVM

Lindy LY-38343 KVM Extender 100m Cat.6 HDMI 4K60, Audio, IR

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: LY-38343

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Lindy LY-38343 KVM Extender 100m Cat.6 HDMI 4K60, Audio, IR KVM-LCD Aten KL1508AIN-AXA-XG. Diagonala afișajului: 48,3 cm (19"), Ecran: LCD. ATEN KH1508AI-AX-G. Tastatură de tip port: USB, PS/2, Mouse tip ATEN VM0404HA. Tipul de produs: Comutator matrice AV, Rata de ATEN SN0108CO-AXA-G. Console port: RJ-45/Mini-USB. Dimensions (WxDxH): 329.8 x 437.2
Alte caracteristici
AC input frequency — — 50 - 60 Hz 50 - 60 Hz —
Built-in display — — No No —
Certification CE, UKCA, FCC, RoHS & REACH — — — RoHS
Depth — 701.2 mm 163.6 mm 432.4 mm —
Ethernet LAN (RJ-45) ports — — 8 1 2
Harmonized System (HS) code 84733080 — 85176200 — —
Height — 44 mm 44 mm 44 mm —
Housing material — — Metal Metal —
Input current — 1 A 1 A 1 A 1 A
Interfata HDMI Da Nu Nu Da Nu
Keyboard port type — USB, PS/2 USB, PS/2 — —
KVM-Ports 2 8 8 8 8
KVM-Type — Analog Analog Analog Analog
LED indicators — Yes Yes — —
Manual — Yes Yes — —
Master (outer) case gross weight — 19.2 kg 11.4 kg 6.62 kg —
Master (outer) case height — 135 mm 258 mm 130 mm —
Master (outer) case length — 833 mm 565 mm 575 mm —
Master (outer) case net weight — 15.6 kg 9.54 kg 5.45 kg —
Master (outer) case width — 668 mm 420 mm 506 mm —
MAXIMUM-RESOLUTION — 1920 x 1200 pixels 1920 x 1200 pixels 1920 x 1080 pixels —
Mouse port type — USB, PS/2 USB, PS/2 — —
Numar porturi HDMI 1-2 N/A N/A 5-10 N/A
Numar porturi USB 1-2 1-2 1-2 1-2 3-4
Number of computers controlled — 8 8 — —
Operating relative humidity (H-H) 20 - 90% 0 - 80% 0 - 80% 0 - 80% 0 - 80%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 70 mm 833 mm 540 mm 575 mm 575 mm
Package height 210 mm 135 mm 233 mm 130 mm 130 mm
Package weight 1.29 kg 18.9 kg 3.58 kg 6.62 kg 6.25 kg
Package width 265 mm 668 mm 131 mm 506 mm 453 mm
Power consumption (typical) — 27.5 W 8.7 W 34.9 W —
Products per master (outer) case — 1 pc(s) 3 pc(s) — —
Quick installation guide — Yes Yes — —
Rack capacity — 1U — 1U —
Rack mounting — Yes — Yes —
Rezolutie 3840 x 2160 1920 x 1200 1920 x 1200 1920 x 1080 N/A
Serial ports quantity — 1 — — 8
Storage relative humidity (H-H) — — 0 - 80% — 0 - 80%
Storage temperature (T-T) -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C
Video port type — VGA VGA — —
Width — 480 mm 437.2 mm 378.2 mm —
Laptopuri - Construcție
Culoare Black Black Black — Black
Greutate 335 g 15.6 kg 3.18 kg 5.12 kg 5.26 kg
Laptopuri - Generale
Garanție comercială 24 24 24 24 24
Producător LINDY ATEN ATEN ATEN ATEN
Laptopuri - Porturi
Număr porturi USB 2.0 2 — — — 3

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lindy 100m Cat.6 HDMI 4K60 HDBaseT KVM Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR ARC Support as well as USB, RS-232, CEC & Ethernet pass-through & bi- directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0, USB 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) – 3840×2160@60Hz 4:4:4 8bit 100m (328.08ft) – 1920×1080@60Hz Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through TosLink (Optical) Up to 5.1Ch 3.5mm Up to 2.0Ch Separate Audio Ports: TosLink (Optical), 3.5mm IR Support: 20 – 60KHz CEC Support: Pass-through Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: VS2310TX-A1 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) ARC Support Connectors Transmitter Input: HDMI Type A (Female), USB Type B (Female), 3.5mm IR (Female) Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 165x88x20mm (6.5×3.46×0.79in) per unit Housing Material: Metal Net Weight: 0.335kg (0.74lb) Operating Temperature: 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 265x70x210mm (10.43×2.76×8.27in) Gross Weight: 1.29kg (2.84lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI KVM Extender, Transmitter HDBaseT HDMI KVM Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38343 EAN: 4002888383431 https://www.lindy-international.com/100m-Cat-6-HDMI-4K60-Audio-IR-RS- 232-HDBaseT-KVM-Extender.htm?websale8=ld0101.ld021102&pi=38343 &ci=10

Specificații tehnice 37 caracteristici
Cable types supported
Cat6
Certification
CE, UKCA, FCC, RoHS & REACH
Connectivity technology
Wired
Harmonized System (HS) code
84733080
Interfata HDMI
Da
KVM-Ports
2
Material
Metal
Maximum digital resolution
3840 x 2160 pixels
Maximum transfer distance
100 m
Numar porturi HDMI
1-2
Numar porturi USB
1-2
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
70 mm
Package height
210 mm
Package weight
1.29 kg
Package width
265 mm
Receiver depth
8.8 cm
Receiver height
2 cm
Receiver local video port type
HDMI
Receiver weight
335 g
Receiver width
16.5 cm
Rezolutie
3840 x 2160
RJ-45 ports quantity (receiver)
1
RJ-45 ports quantity (transmitter)
1
Storage temperature (T-T)
-20 - 60 °C
Transmitter depth
8.8 cm
Transmitter height
2 cm
Transmitter video port type
HDMI
Transmitter weight
335 g
Transmitter width
16.5 cm
Culoare
Black
Greutate
335 g
Rată maximă de reîmprospătare
60 Hz
Garanție comercială
24
Producător
LINDY
Număr porturi USB 2.0
2
