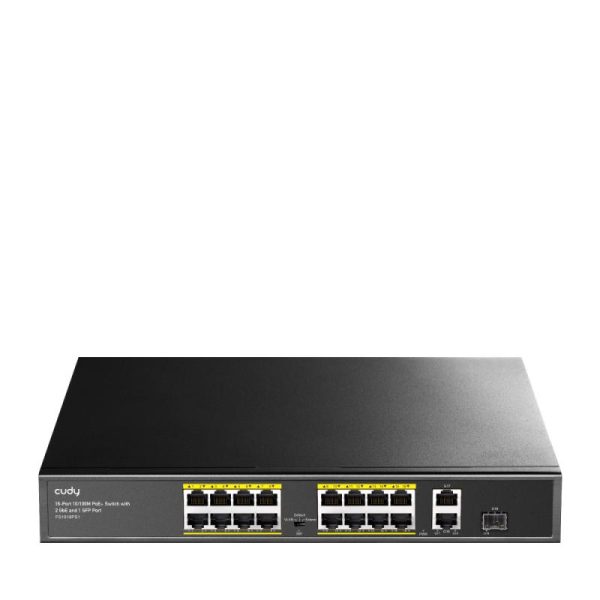

CUDY 16-Port 10/100M PSE RJ-45 +2 Gigabit RJ- 45 +1SFP

Switchuri

CUDY 16-Port 10/100M PSE RJ-45 +2 Gigabit RJ- 45 +1SFP

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: FS1018PS1

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică CUDY 16-Port 10/100M PSE RJ-45 +2 Gigabit RJ- 45 +1SFP Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support — No No No Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz —
Auto-negotiation — Yes Yes — —
Auto MDI/MDI-X — — Yes Yes —
Basic switching RJ-45 Ethernet ports type 18 8 Fast Ethernet (10/100) 48 24
Broadcast storm control — — — Yes Yes
Cables included AC — AC — AC
Cable types supported — Cat5, Cat5e, Cat6 Cat3, Cat4, Cat5, Cat5e — —
Certification — CE, FCC — UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL —
Cloud-managed — No — — Yes
Combo SFP ports quantity 1 — — 4 —
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45 RJ-45
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX 1000BASE-T, 100BASE-TX —
Depth 180 mm 8.2 mm 180 mm 322 mm 180 mm
DHCP features — — — DHCP client DHCP relay, DHCP server
Ethernet LAN data rates 10,100 Mbit/s — 10,100 Mbit/s — —
Fanless Yes — Yes — Yes
Flash memory — — — 4 MB 512 MB
Flow control support — — Yes Yes —
Form factor — 1U 1U 1U —
Forwarding rate — — 2.38 Mpps — 95.23 Mpps
Gigabit Ethernet (copper) ports quantity 2 — — — 24
Harmonized System (HS) code — — 85176990 85176990 —
Heat dissipation — — 7.03 BTU/h — 66.87 BTU/h
Height 44 mm 27 mm 44 mm 43.5 mm 44 mm
Housing material Metal Metal Metal — —
IGMP snooping — — — Yes Yes
Jumbo frames support — — — Yes Yes
LAN ports 5 — — 48 —
LAN port type Gigabit Gigabit FastEthernet Gigabit —
Layer Layer-2 — — Layer-2 —
LED indicators Activity, Link, PoE, Power Yes Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 4000 entries 4096 entries 8000 entries 8000 entries 16000 entries
Management nu nu nu Da —
Mean time between failures (MTBF) — — — 263000 h 519.543 h
Montare in rack Da Nu Nu Da Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u IEEE 802.3af IEEE 802.3i, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Operating relative humidity (H-H) 0 - 85% 10 - 80% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C -5 - 45 °C
Packet buffer memory — — 2 MB 6 MB 12 MB
PoE Nu Da Nu Nu —
Port mirroring — No — Yes Yes
Porturi RJ 45 11-18 5-10 11-18 28+ 24-28
Porturi SFP 1-2 N/A N/A 1-2 3-4
Power connector AC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) — — 2.23 W — 19.6 W
Power over Ethernet (PoE) Yes Yes No No No
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power source AC AC AC — AC
Power supply included Yes Yes Yes — Yes
Quality of Service (QoS) support — No — Yes Yes
Rackable No — — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit Yes — Yes — Yes
Redundant PSU No — — No —
Stackable No No No No Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -25 - 70 °C -40 - 70 °C
Store-and-forward — — Yes — Yes
Switching capacity 7.2 Gbit/s 16 Gbit/s 32 Gbit/s — 128 Gbit/s
Switch layer — L2 — L2 L3
Switch type — Unmanaged Unmanaged Managed Managed
Total Power over Ethernet (PoE) budget 200 W 60 W — — —
Viteza transfer Gigabit Gigabit Fast Ethernet Gigabit Gigabit
VLAN support Yes — — Yes Yes
Web-based management — No — Yes Yes
Width 280 mm 192 mm 440 mm 444 mm 440 mm
Laptopuri - Construcție
Culoare Grey Black Black Grey —
Greutate — 500 g — 4.05 kg —
Laptopuri - Generale
Garanție comercială 24 60 36 24 24
Producător CUDY EXTRALINK TP-LINK ALLIED TELESIS TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM — — — 32 MB 2000 MB

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

CUDY 16-Port 10/100M PSE RJ-45 +2 Gigabit RJ- 45 +1SFP Port with 16 POE Ports Switch with Built-in power supply, support 16-port IEEE 802.3at PoE+ Injector,Rack-mountable Steel case, 200W Internal

Specificații tehnice 49 caracteristici
Basic switching RJ-45 Ethernet ports type
18
Cables included
AC
Combo SFP ports quantity
1
Depth
180 mm
Ethernet LAN data rates
10,100 Mbit/s
Fanless
Yes
Gigabit Ethernet (copper) ports quantity
2
Height
44 mm
Housing material
Metal
Installed SFP modules quantity
1
LAN ports
5
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Activity, Link, PoE, Power
MAC address table
4000 entries
Management
nu
Montare in rack
Da
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Operating relative humidity (H-H)
0 - 85%
Operating temperature (T-T)
0 - 40 °C
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Plug and Play
Yes
PoE
Nu
Porturi RJ 45
11-18
Porturi SFP
1-2
Power connector
AC-in jack
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
16
Power source
AC
Power supply included
Yes
Rackable
No
Rack mounting
Yes
Rack mount kit
Yes
Redundant PSU
No
Stackable
No
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
7.2 Gbit/s
Total Power over Ethernet (PoE) budget
200 W
Uplink ports quantity
2
Viteza transfer
Gigabit
VLAN support
Yes
Width
280 mm
Culoare
Grey
Garanție comercială
24
Producător
CUDY
