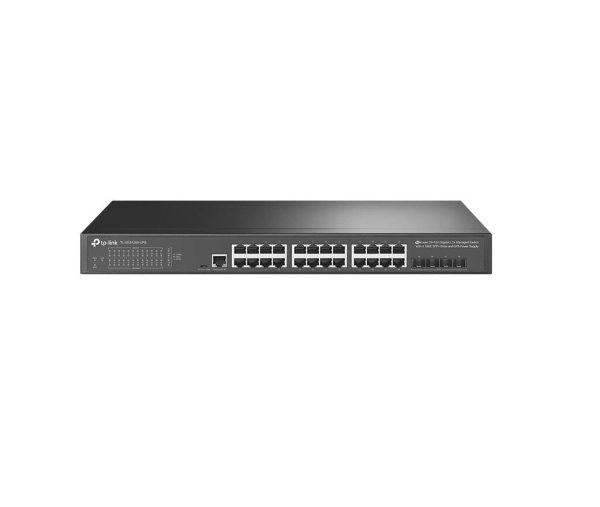

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+
2.501,99 lei
"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: TL-SG3428X-UPS
Livrare și beneficii
Compară cu produse similare
"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
1.472,99 lei 2.334,99 lei
Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
2.315,99 lei 3.781,00 lei
Vezi comparația completă
| Caracteristică | "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps | "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G | Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | Yes | No | No | Yes | Yes |
| Access Control List (ACL) | Yes | — | — | Yes | Yes |
| AC input frequency | — | 50 - 60 Hz | 50 - 60 Hz | — | — |
| ARP inspection | Yes | — | — | Yes | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication | — | — | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication | — |
| Authentication type | AAA, TACACS+ | — | — | AAA, TACACS+ | — |
| Auto-negotiation | — | Yes | Yes | — | — |
| Auto MDI/MDI-X | — | Yes | Yes | — | — |
| Basic switching RJ-45 Ethernet ports type | 24 | Fast Ethernet (10/100) | Fast Ethernet (10/100) | No | 24 |
| BPDU filtering/protection | Yes | — | — | Yes | — |
| Broadcast storm control | Yes | — | — | Yes | Yes |
| Cables included | AC | — | AC | AC | AC |
| Cloud-managed | Yes | — | — | Yes | Yes |
| Compliance certificates | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS | — | CE, Federal Communications Commission (FCC), RoHS |
| Configuring Location Settings (CLI) | Yes | — | — | Yes | — |
| Console port | RJ-45/micro-USB | — | — | RJ-45/micro-USB | RJ-45 |
| Copper ethernet cabling technology | — | 10BASE-T, 100BASE-TX | 10BASE-T, 100BASE-TX | — | — |
| Depth | 180 mm | 7.9 mm | 180 mm | 180 mm | 180 mm |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — | — | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | DHCP relay, DHCP server |
| Fanless | — | Yes | Yes | — | Yes |
| Fast Ethernet (copper) ports quantity | — | 8 | 16 | — | — |
| Flow control support | Yes | Yes | Yes | Yes | — |
| Form factor | 1U | — | 1U | — | — |
| Forwarding rate | 95.23 Mpps | — | 2.38 Mpps | 119.04 Mpps | 95.23 Mpps |
| Harmonized System (HS) code | — | 85176990 | 85176990 | — | — |
| Head-of-line (HOL) blocking | Yes | — | — | Yes | — |
| Heat dissipation | 108.84 BTU/h | 6.99 BTU/h | 7.03 BTU/h | 52.75 BTU/h | 66.87 BTU/h |
| Height | 44 mm | 22.5 mm | 44 mm | — | 44 mm |
| IGMP snooping | Yes | — | — | Yes | Yes |
| IP-MAC-Port binding | Yes | — | — | Yes | Yes |
| IP routing | Yes | — | — | Yes | — |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert | — | — | IPv6 Telnet, IPv6 ping, IPv6 tracert | — |
| Jumbo frames | 9000 | — | — | 9000 | 9000 |
| Jumbo frames support | Yes | — | — | Yes | Yes |
| LAN port type | Gigabit | FastEthernet | FastEthernet | 10Gigabit | — |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| Link aggregation | Yes | — | — | Yes | Yes |
| Loop protection | Yes | — | — | Yes | — |
| MAC address filtering | Yes | — | — | Yes | Yes |
| MAC address table | 16000 entries | 1000 entries | 8000 entries | 32000 entries | 16000 entries |
| Management | Da | nu | nu | Da | — |
| Management protocols | SNMPv1/v2c/v3, SNTP | — | — | SNMPv1/v2c/v3, SNTP | — |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 | — | — | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 | — |
| Montare in rack | Da | Nu | Nu | Nu | Da |
| Multicast Listener Discovery (MLD) snooping | Y | — | — | Y | — |
| Multicast support | Yes | — | — | Yes | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | IEEE 802.3u, IEEE 802.3x | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of queues | 8 | — | — | 8 | — |
| Number of VLANs | 4000 | — | — | 4000 | 4000 |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C | 0 - 40 °C | 0 - 40 °C | 0 - 45 °C | -5 - 45 °C |
| Package depth | — | 139 mm | 528 mm | — | — |
| Package type | Box | Box | Box | Box | — |
| Package weight | — | 240 g | 2.28 kg | — | — |
| Package width | — | 100 mm | 250 mm | — | — |
| Packet buffer memory | 12 MB | 2 MB | 2 MB | 16 MB | 12 MB |
| PoE | Nu | Nu | Nu | Nu | — |
| Port mirroring | Yes | — | — | Yes | Yes |
| Porturi RJ 45 | 24-28 | 5-10 | 11-18 | 1-4 | 24-28 |
| Porturi SFP | 3-4 | N/A | N/A | 5-8 | 3-4 |
| Power connector | DC-in jack | DC-in jack | DC-in jack | DC-in jack | — |
| Power consumption (max) | 31.9 W | 2.2 W | 2.23 W | 15.46 W | 19.6 W |
| Power over Ethernet (PoE) | No | No | No | No | No |
| Power source | AC | DC | AC | AC | AC |
| Power supply included | Yes | No | Yes | Yes | Yes |
| Quality of Service (QoS) support | Yes | — | — | Yes | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) | — | — | SP, WRR+SP, Weighted Round Robin (WRR) | — |
| Quick start guide | Yes | Yes | — | Yes | — |
| Rack mounting | Yes | No | Yes | Yes | Yes |
| Rack mount kit | Yes | — | Yes | Yes | Yes |
| Rate limiting | Yes | — | — | Yes | — |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS | — | — | HTTPS, SSH, SSH-2, SSL/TLS | SNMP, SNMPv2, SNMPv3 |
| SFP module slots quantity | 4 | — | — | 8 | 4 |
| Spanning tree protocol | Yes | — | — | Yes | — |
| SSH/SSL support | Yes | — | — | Yes | Yes |
| Stackable | Yes | No | No | — | Yes |
| Static port security | Yes | — | — | Yes | Yes |
| Static route | Yes | — | — | Yes | — |
| Storage relative humidity (H-H) | 5 - 90% | 5 - 95% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | — | Yes | Yes | — | Yes |
| Sustainability compliance | — | Yes | Yes | — | — |
| Switching capacity | 128 Gbit/s | 16 Gbit/s | 32 Gbit/s | 160 Gbit/s | 128 Gbit/s |
| Switch layer | — | — | — | L2+/L3 | L3 |
| Switch type | Managed | Unmanaged | Unmanaged | Managed | Managed |
| System event log | Yes | — | — | Yes | — |
| Traffic classification | Yes | — | — | Yes | — |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Voice VLAN | — | — | Private VLAN, Protocol-based VLAN, Voice VLAN | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Viteza transfer | Gigabit | Fast Ethernet | Fast Ethernet | 10G+ | Gigabit |
| VLAN support | Yes | — | — | Yes | Yes |
| Web-based management | Yes | — | — | Yes | Yes |
| Width | 440 mm | 134.5 mm | 440 mm | — | 440 mm |
| Laptopuri - Construcție | |||||
| Culoare | Black | White | Black | — | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 36 | 36 | 60 | 24 |
| Producător | TP-LINK | TP-LINK | TP-LINK | TP-LINK | TP-LINK |
Analiză inteligentă a produsului
Descriere oficială
“JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Taca cs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”
Specificații tehnice 83 caracteristici ⌄
- 10G support
- Yes
- Access Control List (ACL)
- Yes
- ARP inspection
- Yes
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
- Authentication type
- AAA, TACACS+
- Basic switching RJ-45 Ethernet ports type
- 24
- BPDU filtering/protection
- Yes
- Broadcast storm control
- Yes
- Cables included
- AC
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- Console port
- RJ-45/micro-USB
- Depth
- 180 mm
- DHCP features
- DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Flow control support
- Yes
- Form factor
- 1U
- Forwarding rate
- 95.23 Mpps
- Head-of-line (HOL) blocking
- Yes
- Heat dissipation
- 108.84 BTU/h
- Height
- 44 mm
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- IP routing
- Yes
- IPv4 & IPv6 features
- IPv6 Telnet, IPv6 ping, IPv6 tracert
- Jumbo frames
- 9000
- Jumbo frames support
- Yes
- LAN port type
- Gigabit
- LED indicators
- Yes
- Link aggregation
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- MAC address table
- 16000 entries
- Management
- Da
- Management protocols
- SNMPv1/v2c/v3, SNTP
- Manual
- Yes
- MIB support
- RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
- Montare in rack
- Da
- Multicast Listener Discovery (MLD) snooping
- Y
- Multicast support
- Yes
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
- Number of queues
- 8
- Number of VLANs
- 4000
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 45 °C
- Package type
- Box
- Packet buffer memory
- 12 MB
- PoE
- Nu
- Port mirroring
- Yes
- Porturi RJ 45
- 24-28
- Porturi SFP
- 3-4
- Power connector
- DC-in jack
- Power consumption (max)
- 31.9 W
- Power over Ethernet (PoE)
- No
- Power source
- AC
- Power supply included
- Yes
- Quality of Service (QoS) support
- Yes
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR)
- Quick start guide
- Yes
- Rack mounting
- Yes
- Rack mount kit
- Yes
- Rate limiting
- Yes
- Reset button
- Yes
- Security algorithms
- HTTPS, SSH, SSH-2, SSL/TLS
- SFP module slots quantity
- 4
- Spanning tree protocol
- Yes
- SSH/SSL support
- Yes
- Stackable
- Yes
- Static port security
- Yes
- Static route
- Yes
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Switching capacity
- 128 Gbit/s
- Switch type
- Managed
- System event log
- Yes
- Traffic classification
- Yes
- Virtual LAN features
- Private VLAN, Protocol-based VLAN, Voice VLAN
- Viteza transfer
- Gigabit
- VLAN support
- Yes
- Web-based management
- Yes
- Width
- 440 mm
- Culoare
- Black
- Garanție comercială
- 24
- Producător
- TP-LINK
