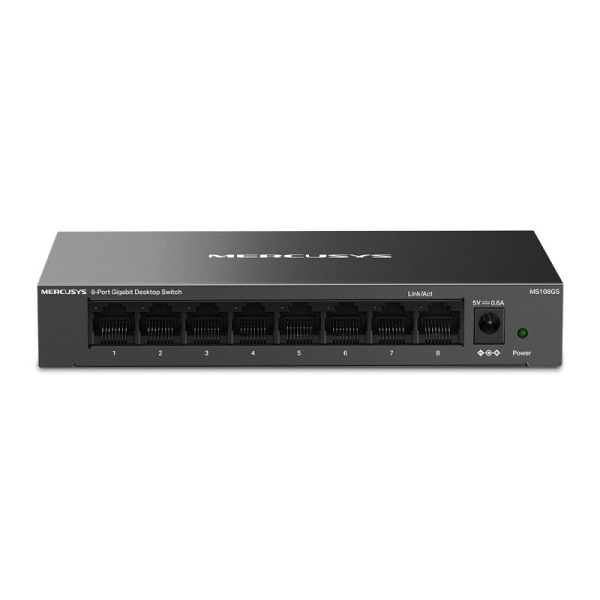

Mercusys MS108GS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports
66,99 lei 104,99 lei
Mercusys MS108GS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: MS108GS
Livrare și beneficii
Compară cu produse similare
Mercusys MS108GS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports
Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
694,99 lei
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
1.472,99 lei 2.334,99 lei
Vezi comparația completă
| Caracteristică | Mercusys MS108GS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports | Extralink KRATOS PoE Switch 7x Gigabit PoE 1x | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps | "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | No | No | No | Yes |
| AC input frequency | — | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz | — |
| AC input voltage | 220 V | — | — | — | 220 V |
| Auto-negotiation | Yes | Yes | Yes | Yes | — |
| Auto MDI/MDI-X | Yes | — | Yes | Yes | — |
| Basic switching RJ-45 Ethernet ports type | 8 | 8 | Fast Ethernet (10/100) | Fast Ethernet (10/100) | No |
| Cables included | AC | — | — | AC | AC |
| Cable types supported | — | Cat5, Cat5e, Cat6 | — | Cat3, Cat4, Cat5, Cat5e | — |
| Certification | CE, RoHS | CE, FCC | — | — | — |
| Cloud-managed | — | No | — | — | Yes |
| Compliance certificates | — | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS | — |
| Configuring Location Settings (CLI) | — | No | — | — | Yes |
| Copper ethernet cabling technology | — | — | 10BASE-T, 100BASE-TX | 10BASE-T, 100BASE-TX | — |
| DC input voltage | 5 V | — | 5 V | — | — |
| Depth | 99.1 mm | 8.2 mm | 7.9 mm | 180 mm | 180 mm |
| Fanless | Yes | — | Yes | Yes | — |
| Fast Ethernet (copper) ports quantity | — | — | 8 | 16 | — |
| Flow control support | Yes | — | Yes | Yes | Yes |
| Form factor | — | 1U | — | 1U | — |
| Forwarding rate | — | — | — | 2.38 Mpps | 119.04 Mpps |
| Full duplex | Yes | — | Yes | — | — |
| Half duplex | Yes | — | Yes | — | — |
| Harmonized System (HS) code | — | — | 85176990 | 85176990 | — |
| Heat dissipation | 14.348 BTU/h | — | 6.99 BTU/h | 7.03 BTU/h | 52.75 BTU/h |
| Height | 252 mm | 27 mm | 22.5 mm | 44 mm | — |
| Housing material | Metal | Metal | — | Metal | — |
| Input current | 0.6 A | 2.5 A | 0.6 A | — | — |
| Jumbo frames | 15000 | — | — | — | 9000 |
| Jumbo frames support | Yes | — | — | — | Yes |
| LAN port type | — | Gigabit | FastEthernet | FastEthernet | 10Gigabit |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| MAC address table | 8000 entries | 4096 entries | 1000 entries | 8000 entries | 32000 entries |
| Management | — | nu | nu | nu | Da |
| Montare in rack | Nu | Nu | Nu | Nu | Nu |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x | IEEE 802.3af | IEEE 802.3u, IEEE 802.3x | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 80% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 45 °C |
| Package depth | — | — | 139 mm | 528 mm | — |
| Package type | — | — | Box | Box | Box |
| Package weight | — | — | 240 g | 2.28 kg | — |
| Package width | — | — | 100 mm | 250 mm | — |
| Packet buffer memory | 0.5 MB | — | 2 MB | 2 MB | 16 MB |
| PoE | — | Da | Nu | Nu | Nu |
| Port mirroring | — | No | — | — | Yes |
| Porturi RJ 45 | 5-10 | 5-10 | 5-10 | 11-18 | 1-4 |
| Porturi SFP | N/A | N/A | N/A | N/A | 5-8 |
| Power connector | DC-in jack | DC-in jack | DC-in jack | DC-in jack | DC-in jack |
| Power consumption (max) | 4.22 W | — | 2.2 W | 2.23 W | 15.46 W |
| Power over Ethernet (PoE) | No | Yes | No | No | No |
| Power source | DC | AC | DC | AC | AC |
| Power supply included | Yes | Yes | No | Yes | Yes |
| Quality of Service (QoS) support | — | No | — | — | Yes |
| Quick start guide | Yes | — | Yes | — | Yes |
| Rack mounting | No | No | No | Yes | Yes |
| Rack mount kit | — | — | — | Yes | Yes |
| Stackable | No | No | No | No | — |
| Storage relative humidity (H-H) | 5 - 95% | 5 - 90% | 5 - 95% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | Yes | — | Yes | Yes | — |
| Sustainability compliance | — | — | Yes | Yes | — |
| Switching capacity | 16 Gbit/s | 16 Gbit/s | 16 Gbit/s | 32 Gbit/s | 160 Gbit/s |
| Switch layer | — | L2 | — | — | L2+/L3 |
| Switch type | Unmanaged | Unmanaged | Unmanaged | Unmanaged | Managed |
| System event log | — | No | — | — | Yes |
| Traffic classification | — | No | — | — | Yes |
| Viteza transfer | Gigabit | Gigabit | Fast Ethernet | Fast Ethernet | 10G+ |
| Web-based management | — | No | — | — | Yes |
| Width | 158 mm | 192 mm | 134.5 mm | 440 mm | — |
| Laptopuri - Construcție | |||||
| Culoare | Black | Black | White | Black | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 60 | 36 | 36 | 60 |
| Producător | MERCUSYS | EXTRALINK | TP-LINK | TP-LINK | TP-LINK |
Analiză inteligentă a produsului
Descriere oficială
Mercusys MS108GS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack. Wall mountable
Specificații tehnice 51 caracteristici ⌄
- 10G support
- No
- AC input voltage
- 220 V
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports type
- 8
- Cables included
- AC
- Certification
- CE, RoHS
- DC input voltage
- 5 V
- Depth
- 99.1 mm
- Fanless
- Yes
- Flow control support
- Yes
- Full duplex
- Yes
- Half duplex
- Yes
- Heat dissipation
- 14.348 BTU/h
- Height
- 252 mm
- Housing material
- Metal
- Input current
- 0.6 A
- Jumbo frames
- 15000
- Jumbo frames support
- Yes
- LED indicators
- Yes
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
- MAC address table
- 8000 entries
- Manual
- Yes
- Montare in rack
- Nu
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Packet buffer memory
- 0.5 MB
- Porturi RJ 45
- 5-10
- Porturi SFP
- N/A
- Power connector
- DC-in jack
- Power consumption (max)
- 4.22 W
- Power over Ethernet (PoE)
- No
- Power source
- DC
- Power supply included
- Yes
- Quick start guide
- Yes
- Rack mounting
- No
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 70 °C
- Store-and-forward
- Yes
- Switching capacity
- 16 Gbit/s
- Switch type
- Unmanaged
- Transmission distance (max)
- 0.1 km
- Viteza transfer
- Gigabit
- Wall mountable
- Yes
- Width
- 158 mm
- Culoare
- Black
- Garanție comercială
- 24
- Producător
- MERCUSYS
