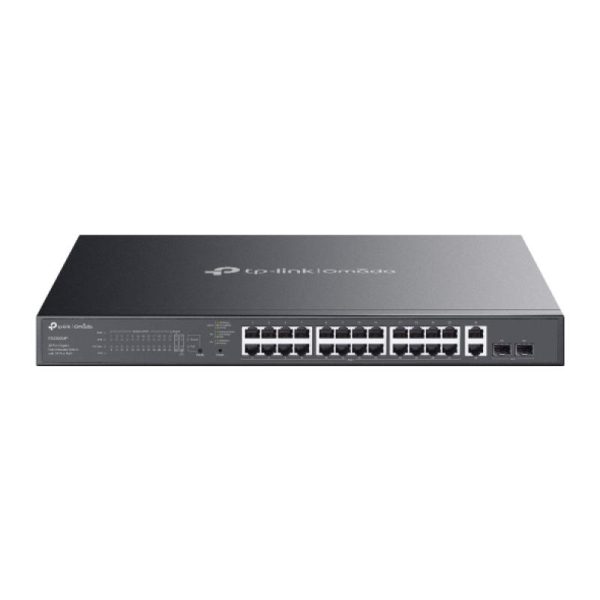

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT:
1.772,99 lei 2.460,99 lei
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT:
(0)
În stoc
Vândut de RITC.ro
Cod produs: ES228GMP
Livrare și beneficii
Compară cu produse similare
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT:
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
1.472,99 lei 2.334,99 lei
Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
2.315,99 lei 3.781,00 lei
Vezi comparația completă
| Caracteristică | Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT: | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps | "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G | Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | No | No | Yes | Yes |
| Access Control List (ACL) | — | — | — | Yes | Yes |
| AC input frequency | — | 50 - 60 Hz | 50 - 60 Hz | — | — |
| ARP inspection | — | — | — | Yes | Yes |
| Auto-negotiation | — | Yes | Yes | — | — |
| Auto MDI/MDI-X | Yes | Yes | Yes | — | — |
| Basic switching RJ-45 Ethernet ports type | 26 | Fast Ethernet (10/100) | Fast Ethernet (10/100) | No | 24 |
| Broadcast storm control | Yes | — | — | Yes | Yes |
| Cables included | AC | — | AC | AC | AC |
| Cloud-managed | Yes | — | — | Yes | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS | — | CE, Federal Communications Commission (FCC), RoHS |
| Console port | — | — | — | RJ-45/micro-USB | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X | 10BASE-T, 100BASE-TX | 10BASE-T, 100BASE-TX | — | — |
| Depth | 330 mm | 7.9 mm | 180 mm | 180 mm | 180 mm |
| DHCP features | DHCP client | — | — | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | DHCP relay, DHCP server |
| Ethernet LAN data rates | 10,100,1000 Mbit/s | — | 10,100 Mbit/s | — | — |
| Fanless | No | Yes | Yes | — | Yes |
| Fast Ethernet (copper) ports quantity | — | 8 | 16 | — | — |
| Firmware upgradeable | Yes | — | — | — | Yes |
| Flash memory | 64 MB | — | — | — | 512 MB |
| Flow control support | Yes | Yes | Yes | Yes | — |
| Forwarding rate | 41.66 Mpps | — | 2.38 Mpps | 119.04 Mpps | 95.23 Mpps |
| Gigabit Ethernet (copper) ports quantity | 26 | — | — | — | 24 |
| Harmonized System (HS) code | — | 85176990 | 85176990 | — | — |
| Heat dissipation | 1546.15 BTU/h | 6.99 BTU/h | 7.03 BTU/h | 52.75 BTU/h | 66.87 BTU/h |
| Height | 44 mm | 22.5 mm | 44 mm | — | 44 mm |
| Housing material | Metal | — | Metal | — | — |
| IGMP snooping | Yes | — | — | Yes | Yes |
| IP-MAC-Port binding | — | — | — | Yes | Yes |
| Jumbo frames | 15000 | — | — | 9000 | 9000 |
| Jumbo frames support | Yes | — | — | Yes | Yes |
| LAN port type | FastEthernet | FastEthernet | FastEthernet | 10Gigabit | — |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| Link aggregation | Yes | — | — | Yes | Yes |
| MAC address filtering | — | — | — | Yes | Yes |
| MAC address table | 8000 entries | 1000 entries | 8000 entries | 32000 entries | 16000 entries |
| Management | — | nu | nu | Da | — |
| Mean time between failures (MTBF) | 224143 h | — | — | — | 519.543 h |
| Montare in rack | Da | Nu | Nu | Nu | Da |
| Multicast support | Yes | — | — | Yes | Yes |
| Networking standards | — | IEEE 802.3u, IEEE 802.3x | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of VLANs | 32 | — | — | 4000 | 4000 |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | -5 - 45 °C | 0 - 40 °C | 0 - 40 °C | 0 - 45 °C | -5 - 45 °C |
| Package depth | — | 139 mm | 528 mm | — | — |
| Package type | — | Box | Box | Box | — |
| Package weight | — | 240 g | 2.28 kg | — | — |
| Package width | — | 100 mm | 250 mm | — | — |
| Packet buffer memory | 4 MB | 2 MB | 2 MB | 16 MB | 12 MB |
| PoE | — | Nu | Nu | Nu | — |
| Port mirroring | Yes | — | — | Yes | Yes |
| Porturi RJ 45 | 24-28 | 5-10 | 11-18 | 1-4 | 24-28 |
| Porturi SFP | 1-2 | N/A | N/A | 5-8 | 3-4 |
| Power connector | — | DC-in jack | DC-in jack | DC-in jack | — |
| Power consumption (max) | 454.8 W | 2.2 W | 2.23 W | 15.46 W | 19.6 W |
| Power over Ethernet (PoE) | Yes | No | No | No | No |
| Power source | AC | DC | AC | AC | AC |
| Power supply included | Yes | No | Yes | Yes | Yes |
| Quality of Service (QoS) support | Yes | — | — | Yes | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) | — | — | SP, WRR+SP, Weighted Round Robin (WRR) | — |
| Quick start guide | Yes | Yes | — | Yes | — |
| Rack mounting | Yes | No | Yes | Yes | Yes |
| Rack mount kit | Yes | — | Yes | Yes | Yes |
| Security algorithms | — | — | — | HTTPS, SSH, SSH-2, SSL/TLS | SNMP, SNMPv2, SNMPv3 |
| SFP module slots quantity | 2 | — | — | 8 | 4 |
| SSH/SSL support | — | — | — | Yes | Yes |
| Stackable | No | No | No | — | Yes |
| Static port security | — | — | — | Yes | Yes |
| Storage relative humidity (H-H) | 5 - 90% | 5 - 95% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | Yes | Yes | Yes | — | Yes |
| Surge protection | Yes | — | — | — | Yes |
| Surge protection voltage | 6 kV | — | — | — | 6 kV |
| Sustainability compliance | — | Yes | Yes | — | — |
| Switching capacity | 56 Gbit/s | 16 Gbit/s | 32 Gbit/s | 160 Gbit/s | 128 Gbit/s |
| Switch layer | L2 | — | — | L2+/L3 | L3 |
| Switch type | Managed | Unmanaged | Unmanaged | Managed | Managed |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN | — | — | Private VLAN, Protocol-based VLAN, Voice VLAN | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Viteza transfer | Gigabit | Fast Ethernet | Fast Ethernet | 10G+ | Gigabit |
| VLAN support | Yes | — | — | Yes | Yes |
| Web-based management | Yes | — | — | Yes | Yes |
| Width | 440 mm | 134.5 mm | 440 mm | — | 440 mm |
| Laptopuri - Construcție | |||||
| Culoare | Black | White | Black | — | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 36 | 36 | 60 | 24 |
| Producător | TP-LINK | TP-LINK | TP-LINK | TP-LINK | TP-LINK |
Analiză inteligentă a produsului
Descriere oficială
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 2× Gigabit SFP Ports SPEC: 802.3at/af, 384W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Fast PoE, Perpetual PoE, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Specificații tehnice 76 caracteristici ⌄
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports type
- 26
- Broadcast storm control
- Yes
- Cables included
- AC
- Cloud-managed
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
- Depth
- 330 mm
- DHCP features
- DHCP client
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Fanless
- No
- Fast leave
- Yes
- Firmware upgradeable
- Yes
- Flash memory
- 64 MB
- Flow control support
- Yes
- Forwarding rate
- 41.66 Mpps
- Gigabit Ethernet (copper) ports quantity
- 26
- Heat dissipation
- 1546.15 BTU/h
- Height
- 44 mm
- Housing material
- Metal
- IGMP snooping
- Yes
- Jumbo frames
- 15000
- Jumbo frames support
- Yes
- LAN ports
- 8
- LAN port type
- FastEthernet
- LED indicators
- Yes
- Link aggregation
- Yes
- MAC address table
- 8000 entries
- Manual
- Yes
- Mean time between failures (MTBF)
- 224143 h
- Montare in rack
- Da
- Multicast support
- Yes
- Noise level
- 46.2 dB
- Number of fans
- 2 fan(s)
- Number of VLANs
- 32
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- -5 - 45 °C
- Packet buffer memory
- 4 MB
- Port mirroring
- Yes
- Porturi RJ 45
- 24-28
- Porturi SFP
- 1-2
- Power consumption (max)
- 454.8 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet (PoE) type supported
- PoE+
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Power source
- AC
- Power supply included
- Yes
- Quality of Service (QoS) support
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- Quick start guide
- Yes
- Rackable
- No
- Rack mounting
- Yes
- Rack mount kit
- Yes
- Redundant PSU
- No
- SFP module slots quantity
- 2
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Store-and-forward
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
- Switching capacity
- 56 Gbit/s
- Switch layer
- L2
- Switch type
- Managed
- Total Power over Ethernet (PoE) budget
- 384 W
- Unified static configuration
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- Viteza transfer
- Gigabit
- VLAN support
- Yes
- Web-based management
- Yes
- Width
- 440 mm
- Culoare
- Black
- Garanție comercială
- 36
- Producător
- TP-LINK
