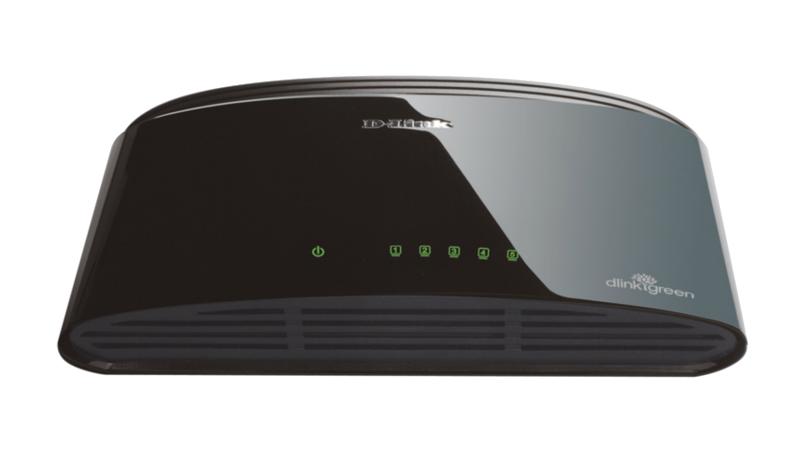

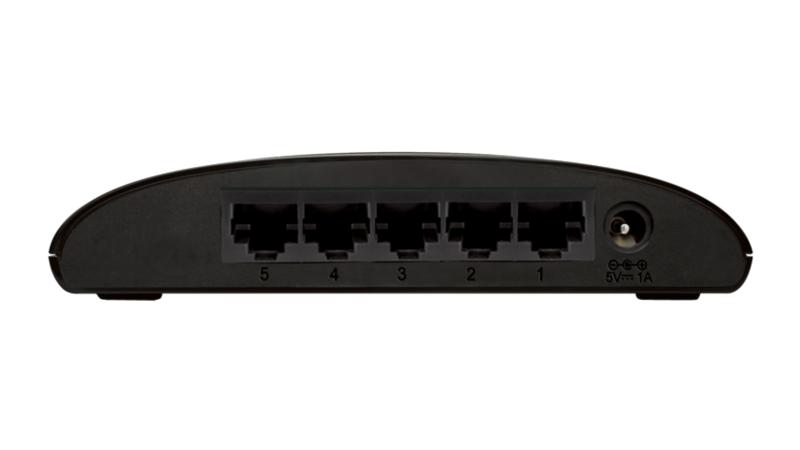

Switch D-Link DES-1005D, 5 port, 10/100 Mbps

Switchuri

Switch D-Link DES-1005D, 5 port, 10/100 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DES-1005D

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch D-Link DES-1005D, 5 port, 10/100 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
Alte caracteristici
10G support No No No No No
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Auto-negotiation Yes Yes Yes Yes Yes
Auto MDI/MDI-X Yes Yes — Yes Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 8 Fast Ethernet (10/100) Fast Ethernet (10/100)
Cables included AC AC — — AC
Cable types supported Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e
Certification RoHS, FCC, CE — CE, FCC — —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology 100BASE-TX, 10BASE-T — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
Fanless — — — Yes Yes
Fast Ethernet (copper) ports quantity — — — 8 16
Flow control support Yes Yes — Yes Yes
Forwarding rate 0.1488 Mpps 35.7 Mpps — — 2.38 Mpps
Full duplex Yes Yes — Yes —
Harmonized System (HS) code 85176990 85176990 — 85176990 85176990
Heat dissipation 8.528 BTU/h 44.63 BTU/h — 6.99 BTU/h 7.03 BTU/h
Input current — — 2.5 A 0.6 A —
LAN port type FastEthernet Gigabit Gigabit FastEthernet FastEthernet
LED indicators LAN, Power Yes Yes Yes Yes
MAC address table 2000 entries 8000 entries 4096 entries 1000 entries 8000 entries
Management nu nu nu nu nu
Maximum data transfer rate 0.2 Gbit/s 1 Gbit/s — — —
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 80% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 105 mm 400 mm — 139 mm 528 mm
Package height 98 mm 80 mm — 85 mm —
Package type — Box — Box Box
Package weight 170 g 1.95 kg — 240 g 2.28 kg
Package width 65 mm 250 mm — 100 mm 250 mm
Packet buffer memory 0.046875 MB — — 2 MB 2 MB
PoE Nu Nu Da Nu Nu
Porturi RJ 45 5-10 24-28 5-10 5-10 11-18
Porturi SFP N/A N/A N/A N/A N/A
Power connector DC-in jack DC-in jack DC-in jack DC-in jack DC-in jack
Power consumption (max) — 13.08 W — 2.2 W 2.23 W
Power over Ethernet (PoE) No No Yes No No
Power source — AC AC DC AC
Power supply included — Yes Yes No Yes
Quality of Service (QoS) support — Yes No — —
Rack mounting No Yes No No Yes
Rack mount kit — Yes — — Yes
Stackable No Yes No No No
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes — Yes Yes
Supported data transfer rates 10/20/100/200 Mb/s 10/100/100 Mbps — — —
Supported network protocols — CSMA/CD, TCP/IP — CSMA/CD, TCP/IP —
Sustainability compliance — — — Yes Yes
Switching capacity 1 Gbit/s 48 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
User guide Yes Yes — — —
Viteza transfer Fast Ethernet Gigabit Gigabit Fast Ethernet Fast Ethernet
Laptopuri - Caracteristici fizice 25.09
Adâncime 83.4 mm 180 mm 8.2 mm 7.9 mm 180 mm
Lățime 125.3 mm 294 mm 192 mm 134.5 mm 440 mm
Material carcasă — — Metal — Metal
Înălțime 29.1 mm 44 mm 27 mm 22.5 mm 44 mm
Laptopuri - Construcție
Culoare Black Grey Black White Black
Laptopuri - Generale
Garanție comercială 24 60 60 36 36
Producător D-LINK TP-LINK EXTRALINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U — 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
5x RJ-45
Porturi
5x RJ45
Viteza de transfer
10/100 Mbps
Compatibilitate
IEEE 802.3, IEEE 802.3U, IEEE 802.3x
Putere consumata
4.5 W
Dimensiuni
142 x 108 x 32 mm
Greutate
0.21 Kg
Specificații tehnice 68 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cables included
AC
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Certification
RoHS, FCC, CE
Copper ethernet cabling technology
100BASE-TX, 10BASE-T
Flow control support
Yes
Forwarding rate
0.1488 Mpps
Full duplex
Yes
Harmonized System (HS) code
85176990
Heat dissipation
8.528 BTU/h
LAN port type
FastEthernet
LED indicators
LAN, Power
MAC address auto-learning supported
Yes
MAC address table
2000 entries
Management
nu
Manual
Yes
Master (outer) cases per pallet
48 pc(s)
Maximum data transfer rate
0.2 Gbit/s
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Package depth
105 mm
Package height
98 mm
Package weight
170 g
Package width
65 mm
Packet buffer memory
0.046875 MB
Packet transfer speed
14880 - 148800 p/s
Pallet gross length
110 cm
Pallet gross weight (air)
465.2 kg
Pallet gross weight (sea)
465.2 kg
Pallet gross width
120 cm
Pallet height (air)
197.5 cm
Pallet height (sea)
197.5 cm
Plug and Play
Yes
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (typical)
2.5 W
Power LED
Yes
Power over Ethernet (PoE)
No
Products per pallet (air)
2400 pc(s)
Products per pallet (sea)
2400 pc(s)
Products per shipping (inner) case
50 pc(s)
Rack mounting
No
Shipping (inner) case gross weight
9.25 kg
Shipping (inner) case height
23 cm
Shipping (inner) case length
51.5 cm
Shipping (inner) case net weight
8.5 kg
Shipping (inner) case width
35 cm
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Store-and-forward
Yes
Supported data transfer rates
10/20/100/200 Mb/s
Switching capacity
1 Gbit/s
Switch type
Unmanaged
User guide
Yes
Viteza transfer
Fast Ethernet
Adâncime
83.4 mm
Lățime
125.3 mm
Înălțime
29.1 mm
Culoare
Black
Garanție comercială
24
Producător
D-LINK
