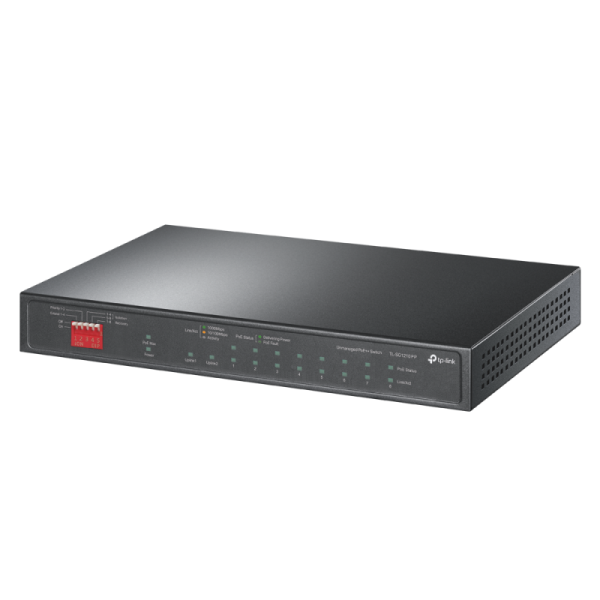

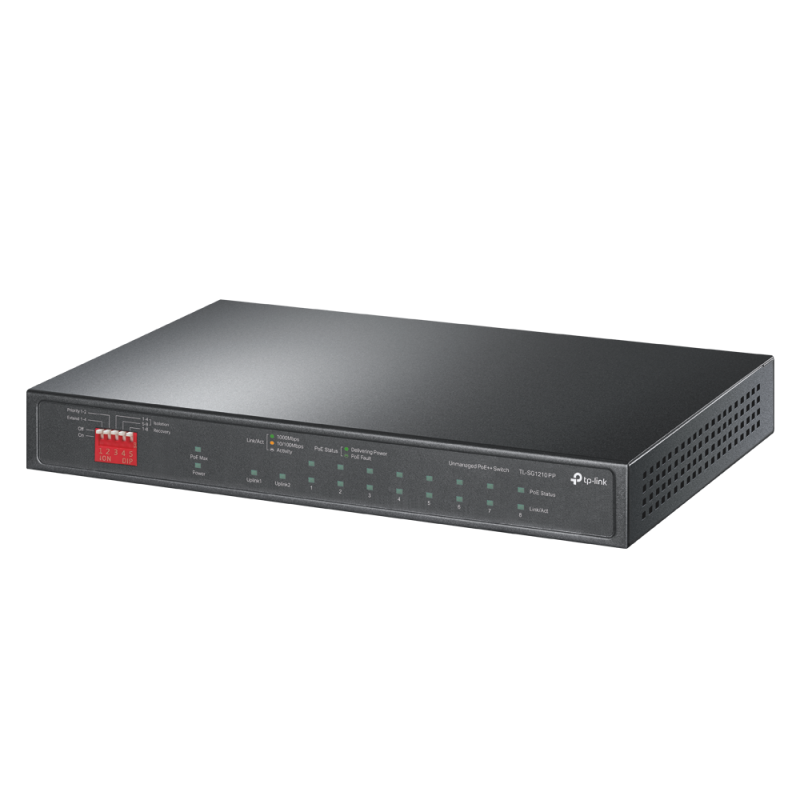

Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++

Switchuri

Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TL-SG1210PP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++ Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency 50 Hz 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 10 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included AC AC AC AC —
Cable types supported Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e — — —
Cloud-managed — — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX — — — 10BASE-T, 100BASE-TX
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 14.88 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Gigabit Ethernet (copper) ports quantity 10 24 — — —
Half duplex — — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 482.17 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping Yes — Yes Yes —
Input current 2.43 A — — — 0.6 A
IP-MAC-Port binding — — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports 8 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer Unmanaged Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 4000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management Unmanaged nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type Box Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory — — 12 MB 16 MB 2 MB
PoE Yes Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 144.1 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet 4PPoE (PoE++) ports quantity 6 — — 8 —
Power over Ethernet plus (PoE+) ports quantity 2 — 48 16 —
Power source DC/PoE AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable No No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU No Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 20 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget 123 W — 500 W 500 W —
User guide Yes Yes — — —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 126 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 209 mm 294 mm — — 134.5 mm
Înălțime 26 mm 44 mm — — 22.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++ PORT: 2× Gigabit PoE++ Ports, 6× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3af/at/bt type3, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-4, Priority Mode for Port1-2, Isolation Mode for Port1-4/5-8, PoE Auto Recovery for Port1-8, Plug and Play

Specificații tehnice 62 caracteristici
10G support
No
AC input frequency
50 Hz
AC input voltage
90 - 220 V
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
10
Cables included
AC
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Combo SFP ports quantity
1
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Fanless
Yes
Flow control support
Yes
Forwarding rate
14.88 Mpps
Gigabit Ethernet (copper) ports quantity
10
Harmonized System (HS) code
85176990
Heat dissipation
482.17 BTU/h
IGMP snooping
Yes
Input current
2.43 A
Input voltage
53.5 V
LAN ports
8
LAN port type
Gigabit
Layer
Unmanaged
LED indicators
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
4000 entries
Management
Unmanaged
Montare in rack
Nu
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of power supply units
1
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package type
Box
PoE
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power consumption (max)
144.1 W
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
6
Power over Ethernet plus (PoE+) ports quantity
2
Power source
DC/PoE
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
20 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
123 W
User guide
Yes
Viteza transfer
Gigabit
Adâncime
126 mm
Lățime
209 mm
Material carcasă
Steel
Înălțime
26 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
