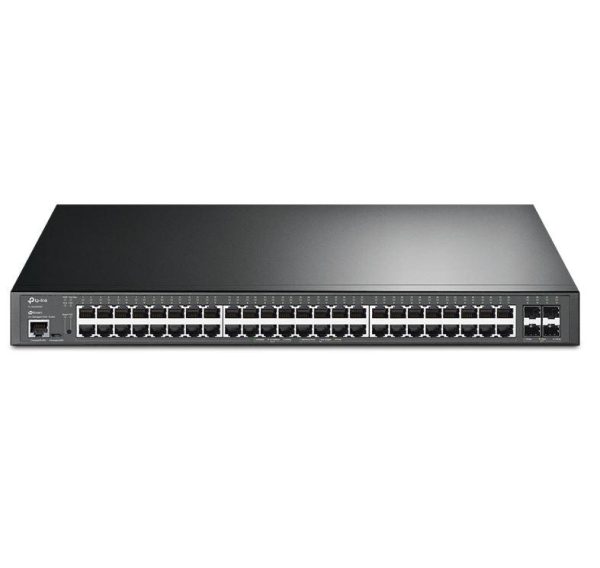

"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

Switchuri

"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG3452XP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
Alte caracteristici
10G support Yes No Yes No Yes
Access Control List (ACL) Yes — Yes — Yes
AC input frequency — 50 - 60 Hz — 50 - 60 Hz —
ARP inspection Yes — Yes — Yes
Authentication Auto VLAN, Guest VLAN — Guest VLAN, MAC-based authentication, Port-based authentication — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type — — AAA, IEEE 802.1x, RADIUS, TACACS+ — AAA, TACACS+
Auto-negotiation — Yes — Yes —
Auto MDI/MDI-X — Yes — Yes —
Basic switching RJ-45 Ethernet ports type 48 24 24 Fast Ethernet (10/100) No
BPDU filtering/protection Yes — Yes — Yes
Broadcast storm control Yes — Yes — Yes
Cables included AC AC AC AC AC
Cable types supported — Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e —
Cloud-managed Yes — Yes — Yes
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS —
Configuring Location Settings (CLI) Yes — Yes — Yes
Console port RJ-45/micro-USB — RJ-45/micro-USB — RJ-45/micro-USB
Depth 330 mm 180 mm 330 mm 180 mm 180 mm
DHCP features DHCP client, DHCP relay, DHCP server — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates — — 10,100,1000,2500,10000 Mbit/s 10,100 Mbit/s —
Flow control support Yes Yes Yes Yes Yes
Form factor 1U — 1U 1U —
Forwarding rate 130.9 Mpps 35.7 Mpps 148.8 Mpps 2.38 Mpps 119.04 Mpps
Full duplex — Yes Yes — —
Harmonized System (HS) code — 85176990 — 85176990 —
Head-of-line (HOL) blocking Yes — Yes — Yes
Heat dissipation 2169.2 BTU/h 44.63 BTU/h 2153.45 BTU/h 7.03 BTU/h 52.75 BTU/h
Height — 44 mm — 44 mm —
IGMP snooping Yes — Yes — Yes
IP-MAC-Port binding Yes — Yes — Yes
IPv4 & IPv6 features — — IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert — IPv6 Telnet, IPv6 ping, IPv6 tracert
Jumbo frames 9000 10000 9000 — 9000
Jumbo frames support Yes Yes Yes — Yes
LAN ports 48 24 24 — —
LAN port type Gigabit Gigabit Gigabit FastEthernet 10Gigabit
Layer Layer-2 Unmanaged Layer-2 — —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes — Yes
Loop protection — — Yes — Yes
MAC address filtering Yes — — — Yes
MAC address table 16000 entries 8000 entries 32000 entries 8000 entries 32000 entries
Management Da nu Da nu Da
MIB support — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Montare in rack Da Nu Da Nu Nu
Multicast Listener Discovery (MLD) snooping — — MLD v1/v2 — Y
Multicast support Yes — Yes — Yes
Networking standards — IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of fans 3 fan(s) — 3 fan(s) — —
Number of queues — — 8 — 8
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C
Package depth — 400 mm — 528 mm —
Package type — Box — Box Box
Package weight — 1.95 kg — 2.28 kg —
Package width — 250 mm — 250 mm —
Packet buffer memory 12 MB — 16 MB 2 MB 16 MB
PoE Da Nu Da Nu Nu
Port mirroring Yes — Yes — Yes
Porturi RJ 45 28+ 24-28 24-28 11-18 1-4
Porturi SFP 1-2 N/A 1-2 N/A 5-8
Power connector AC-in jack DC-in jack — DC-in jack DC-in jack
Power consumption (max) 635.7 W 13.08 W 629.1 W 2.23 W 15.46 W
Power over Ethernet (PoE) Yes No Yes No No
Power over Ethernet plus (PoE+) ports quantity 48 — 16 — —
Power source AC AC AC/PoE AC AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes — Yes
Queue scheduling algorithms — — SP, WRR+SP, Weighted Round Robin (WRR) — SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide Yes — Yes — Yes
Rackable Yes No Yes — —
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — Yes Yes Yes Yes
Rate limiting Yes — Yes — Yes
Redundant PSU No Yes Yes — —
Security algorithms — — HTTPS, SSH, SSH-2, SSL/TLS — HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity 4 — 4 — 8
Spanning tree protocol Yes — Yes — Yes
SSH/SSL support Yes — Yes — Yes
Stackable No Yes No No —
Static port security Yes — Yes — Yes
Static route — — Yes — Yes
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Sustainability compliance — — Yes Yes —
Switching capacity 176 Gbit/s 48 Gbit/s 200 Gbit/s 32 Gbit/s 160 Gbit/s
Switch type Managed Unmanaged Managed Unmanaged Managed
System event log Yes — Yes — Yes
Total Power over Ethernet (PoE) budget 500 W — 500 W — —
Virtual LAN features — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer 10G+ Gigabit 2.5G Fast Ethernet 10G+
VLAN support Yes — Yes — Yes
Web-based management Yes — Yes — Yes
Width — 294 mm — 440 mm —
Laptopuri - Construcție
Culoare — Grey — Black —
Laptopuri - Generale
Garanție comercială 60 60 24 36 60
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificații tehnice 71 caracteristici
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Auto VLAN, Guest VLAN
Basic switching RJ-45 Ethernet ports type
48
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/micro-USB
Depth
330 mm
DHCP features
DHCP client, DHCP relay, DHCP server
Flow control support
Yes
Form factor
1U
Forwarding rate
130.9 Mpps
Head-of-line (HOL) blocking
Yes
Heat dissipation
2169.2 BTU/h
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN ports
48
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Yes
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
16000 entries
Management
Da
Montare in rack
Da
Multicast support
Yes
Number of fans
3 fan(s)
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
12 MB
PoE
Da
Port mirroring
Yes
Porturi RJ 45
28+
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
635.7 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
48
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rackable
Yes
Rack mounting
Yes
Rate limiting
Yes
Redundant PSU
No
Reset button
Yes
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
No
Static port security
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
176 Gbit/s
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
500 W
Viteza transfer
10G+
VLAN support
Yes
Web-based management
Yes
Garanție comercială
60
Producător
TP-LINK
