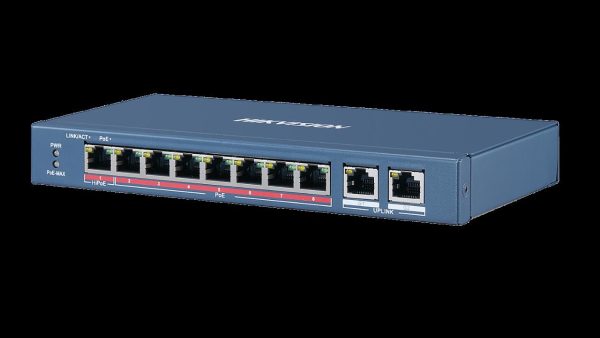

Switch Hikvision DS-3E0310HP-E, 8-port, PoE

Switchuri

Switch Hikvision DS-3E0310HP-E, 8-port, PoE

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DS-3E0310HP-E

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Hikvision DS-3E0310HP-E, 8-port, PoE Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support No No No No No
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 Hz
Auto-negotiation — Yes Yes Yes Yes
Auto MDI/MDI-X Yes — Yes Yes Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 8 Fast Ethernet (10/100) Fast Ethernet (10/100) Fast Ethernet (10/100)
Cable types supported — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage 48 V — 5 V — 53.5 V
Depth 103.3 mm 8.2 mm 7.9 mm 180 mm 98 mm
Fanless — — Yes Yes Yes
Fast Ethernet (copper) ports quantity — — 8 16 —
Flow control support — — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate 41.66 Mpps — — 2.38 Mpps 0.744 Mpps
Full duplex Yes — Yes — Yes
Half duplex — — Yes — Yes
Harmonized System (HS) code — — 85176990 85176990 85176990
Heat dissipation — — 6.99 BTU/h 7.03 BTU/h 5.73 BTU/h
Height 278 mm 27 mm 22.5 mm 44 mm 25 mm
Housing material Metal Metal — Metal —
Input current 2.5 A 2.5 A 0.6 A — 1.31 A
LAN port type — Gigabit FastEthernet FastEthernet —
LED indicators Yes Yes Yes Yes Yes
MAC address table 16000 entries 4096 entries 1000 entries 8000 entries 2000 entries
Management nu nu nu nu nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards — IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3x
Operating relative humidity (H-H) — 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -10 - 55 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — 139 mm 528 mm 196 mm
Package height — — 85 mm — 121 mm
Package type — — Box Box Box
Package weight 1.22 kg — 240 g 2.28 kg 760 g
Package width — — 100 mm 250 mm 131 mm
Packet buffer memory — — 2 MB 2 MB —
PoE Da Da Nu Nu Da
Porturi RJ 45 5-10 5-10 5-10 11-18 5-10
Porturi SFP N/A N/A N/A N/A N/A
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) 120 W — 2.2 W 2.23 W 63.51 W
Power over Ethernet (PoE) Yes Yes No No Yes
Power over Ethernet (PoE) ports quantity 8 — — — 4
Power over Ethernet (PoE) power per port 60 W 30 W — — —
Power source — AC DC AC DC/PoE
Power supply included — Yes No Yes Yes
Rack mounting — No No Yes No
Stackable — No No No No
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 85 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes Yes
Sustainability compliance — — Yes Yes Yes
Switching capacity 56 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 1 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
Total Power over Ethernet (PoE) budget 110 W 60 W — — 58 W
Viteza transfer Fast Ethernet Gigabit Fast Ethernet Fast Ethernet Fast Ethernet
Width 217.6 mm 192 mm 134.5 mm 440 mm 99.8 mm
Laptopuri - Construcție
Culoare Blue Black White Black Black
Greutate 550 g 500 g — — —
Laptopuri - Generale
Garanție comercială 36 60 36 36 60
Producător HIKVISION EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Hikvision unmanaged network switch, DS-3E0310HP-E; 1× 10/100 Mbps HiPoE port, 7× 10/100 Mbps PoE ports, and 2× 10/100/1000 Mbps RJ45 ports; IEEE 802.3at/af/bt standard for HiPoE port (Max. 60W port power), IEEE 802.3at/af for PoE ports, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z; PoE port with 6KV surge protection; AF/AT camera can reach up to 250m in extend mode; HiPoE camera can reach up to 150m; 120W, 48VDC, 2.5A;

Specificații tehnice 37 caracteristici
10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
DC input voltage
48 V
Depth
103.3 mm
Forwarding rate
41.66 Mpps
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
2
Height
278 mm
Housing material
Metal
Input current
2.5 A
LED indicators
Yes
MAC address table
16000 entries
Management
nu
Montare in rack
Nu
Operating temperature (T-T)
-10 - 55 °C
Package weight
1.22 kg
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
120 W
Power consumption (typical)
10 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
60 W
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Store-and-forward
Yes
Switching capacity
56 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
110 W
Viteza transfer
Fast Ethernet
Width
217.6 mm
Culoare
Blue
Greutate
550 g
Garanție comercială
36
Producător
HIKVISION
