Switch Hikvision DS-3E0505-O: 5 × Gigabit RJ45 ports, 10 Gbps,

Switchuri

Switch Hikvision DS-3E0505-O: 5 × Gigabit RJ45 ports, 10 Gbps,

(0) În stoc
Vândut de RITC.ro Cod produs: DS-3E0505-O

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Hikvision DS-3E0505-O: 5 × Gigabit RJ45 ports, 10 Gbps, Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support No No No No No
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 Hz
Auto-negotiation — Yes Yes Yes Yes
Auto MDI/MDI-X — — Yes Yes Yes
Basic switching RJ-45 Ethernet ports type 5 8 Fast Ethernet (10/100) Fast Ethernet (10/100) Fast Ethernet (10/100)
Cable types supported — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e
Compliance certificates Electromagnetic Compatibility (EMC), REACH, RoHS, WEEE — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage 5 V — 5 V — 53.5 V
Depth 831 mm 8.2 mm 7.9 mm 180 mm 98 mm
Ethernet LAN data rates 1000 Mbit/s — — 10,100 Mbit/s —
Fanless Yes — Yes Yes Yes
Fast Ethernet (copper) ports quantity — — 8 16 —
Flow control support — — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate 7.44 Mpps — — 2.38 Mpps 0.744 Mpps
Full duplex — — Yes — Yes
Garantie 36 60 36 36 60
Half duplex — — Yes — Yes
Harmonized System (HS) code — — 85176990 85176990 85176990
Heat dissipation — — 6.99 BTU/h 7.03 BTU/h 5.73 BTU/h
Height 27.6 mm 27 mm 22.5 mm 44 mm 25 mm
Housing material Metal Metal — Metal —
Input current 0.6 A 2.5 A 0.6 A — 1.31 A
LAN port type — Gigabit FastEthernet FastEthernet —
LED indicators Yes Yes Yes Yes Yes
MAC address table 2000 entries 4096 entries 1000 entries 8000 entries 2000 entries
Management nu nu nu nu nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards — IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3x
Operating relative humidity (H-H) 5 - 95% 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — 139 mm 528 mm 196 mm
Package height — — 85 mm — 121 mm
Package type — — Box Box Box
Package weight 350 g — 240 g 2.28 kg 760 g
Package width — — 100 mm 250 mm 131 mm
Packet buffer memory — — 2 MB 2 MB —
PoE Nu Da Nu Nu Da
Porturi RJ 45 5-10 5-10 5-10 11-18 5-10
Porturi SFP N/A N/A N/A N/A N/A
Power connector DC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 3 W — 2.2 W 2.23 W 63.51 W
Power over Ethernet (PoE) No Yes No No Yes
Power source DC AC DC AC DC/PoE
Power supply included Yes Yes No Yes Yes
Product colour — Black White Black Black
Quick start guide Yes — Yes — —
Rack mounting No No No Yes No
Stackable No No No No No
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 85 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes Yes
Sustainability compliance — — Yes Yes Yes
Switching capacity 10 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 1 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
Total Power over Ethernet (PoE) budget — 60 W — — 58 W
Viteza transfer Gigabit Gigabit Fast Ethernet Fast Ethernet Fast Ethernet
Weight 170 g 500 g — — —
Width 105 mm 192 mm 134.5 mm 440 mm 99.8 mm
Producator HIKVISION EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

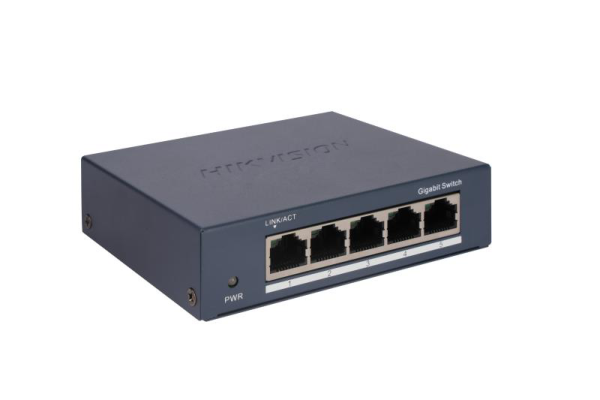

Switch Hikvision DS-3E0505-O: 5 × Gigabit RJ45 ports, 10 Gbps, 1000M network access, alimentare: 5VDC, 0.6A, dimensiuni: 105.00 mm × 27.60 mm × 83.10 mm, greutate: 0.17kg, montare pe birou sau pe perete.

Specificații tehnice 45 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
5
Compliance certificates
Electromagnetic Compatibility (EMC), REACH, RoHS, WEEE
DC input voltage
5 V
Depth
831 mm
Ethernet LAN data rates
1000 Mbit/s
Fanless
Yes
Forwarding rate
7.44 Mpps
Garantie
36
Gigabit Ethernet (copper) ports quantity
5
Height
27.6 mm
Housing material
Metal
Input current
0.6 A
LED indicators
Yes
MAC address table
2000 entries
Management
nu
Montare in rack
Nu
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Package weight
350 g
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
3 W
Power consumption (typical)
0.25 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Quick start guide
Yes
Rack mounting
No
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Stackable
No
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Switching capacity
10 Gbit/s
Switch type
Unmanaged
Viteza transfer
Gigabit
Wall mountable
Yes
Weight
170 g
Width
105 mm
Producator
HIKVISION
