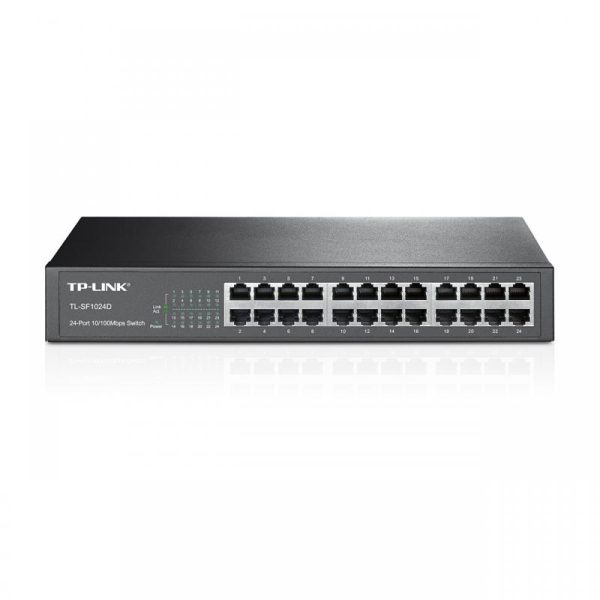

Switch TP-Link TL-SF1024D, 24 port, 10/100Mbps

Switchuri

Switch TP-Link TL-SF1024D, 24 port, 10/100Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SF1024D

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător De confirmat Producător: De confirmat

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SF1024D, 24 port, 10/100Mbps Switch TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 2.5G, 8 porturi Switch TP-LINK LiteWave LS106LP, Fast Ethernet, 6 porturi, PoE Switch TP-LINK JetStream TL-SG3428X-M2, 2.5G, 24 porturi Switch TP-LINK Omada SG2210XMP-M2, 8 porturi, 10G+
Culoare produs — Black Black Black Black
2.5G Ethernet (copper) ports quantity — 8 — 24 —
Access Control List (ACL) — Yes — Yes Yes
AC input frequency — 50/60 Hz 50 Hz 50/60 Hz —
AC input voltage 100 - 240 V 100 - 240 V 220 V 100 - 240 V —
ARP inspection — Yes — Yes Yes
Authentication — MAC-based authentication, Port-based authentication — Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication MAC-based authentication, Port-based authentication
Auto MDI/MDI-X Yes — Yes — —
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 2.5G Ethernet (100/1000/2500), 8 6, Fast Ethernet (10/100) 2.5G Ethernet (100/1000/2500), 24 2.5G Ethernet (100/1000/2500), 8
BPDU filtering/protection — Yes — Yes —
Broadcast storm control — Yes — Yes Yes
Cables included AC AC — LAN (RJ-45) —
Certification — CE, FCC, RoHS CE, FCC, RoHS CE, FCC, RoHS —
Cloud-managed — Yes — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — Yes — Yes Yes
Console port — RJ-45/micro-USB — RJ-45/micro-USB —
Copper ethernet cabling technology 10GBASE-T, 100BASE-TX — 10BASE-T, 100BASE-TX — —
DHCP features — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Fanless Yes Yes Yes — —
Flow control support — Yes Yes Yes Yes
GARP VLAN Registration Protocol (GVRP) — Yes — Yes —
Harmonized System (HS) code 85176990 85176990 — — —
Head-of-line (HOL) blocking — Yes — Yes —
Heat dissipation 10.88 BTU/h 51.18 BTU/h 162.38 BTU/h 154.38 BTU/h 614.58 BTU/h
IGMP snooping — Yes — Yes Yes
IP-MAC-Port binding — Yes — Yes —
Jumbo frames — 9000 — 9000 9000
Jumbo frames support — Yes Yes Yes Yes
LAN port type FastEthernet FastEthernet Gigabit Gigabit FastEthernet
LED indicators — Yes Yes Yes Yes
Link aggregation — Yes — Yes Yes
Loop protection — Yes — Yes Yes
MAC address table 8000 entries 16000 entries 2000 entries 32000 entries 16000 entries
Management protocols — SNMPv1/v2c/v3, SNTP — SNMP v1/v2c/v3, SNTP —
MIB support — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 — Yes Y
Multicast Listener Discovery (MLD) snooping — Y — Y —
Multicast support — Yes — Yes Yes
Networking standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1s, IEEE 802.1w IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Number of static routes — 48 — 48 —
Number of VLANs — 4000 — — 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 400 mm 250 mm — 250 mm —
Package height — 80 mm — 80 mm —
Package weight 2 kg 2.84 kg — 3 kg —
Package width 250 mm 528 mm — 528 mm —
Packet buffer memory 2 MB 12 MB — 16 MB 9 MB
Port mirroring — Yes — Yes Yes
Power connector AC-in jack AC-in jack — AC-in jack AC/DC
Power consumption (max) — — 47.76 W 45.1 W 180.1 W
Power consumption (typical) 3.53 W 15 W — — —
Quick start guide — Yes — Yes Yes
Rackable — — — Yes No
Rate limiting — Yes — Yes Yes
Redundant PSU — — — Yes No
Security algorithms — HTTPS, SSH, SSH-2, SSL/TLS — — SNMP, SNMPv2, SNMPv3
SFP module slots quantity — 2 — 4 2
Spanning tree protocol — Yes — Yes Yes
SSH/SSL support — Yes — Yes —
Static route — Yes — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes —
Switch layer — L2 — L2 L2/L2+
Switch type Unmanaged Managed Unmanaged Managed Managed
System event log — Yes — Yes Yes
Virtual LAN features — MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN Protocol-based VLAN, Tagged VLAN, Voice VLAN
Wall mountable — — Yes — Yes
Web-based management — Yes — Yes Yes
Management nu nu nu Da Da
Montare in rack Nu Nu Nu Da Da
PoE Nu Nu Da Nu Nu
Porturi LAN — — — 24 8
Porturi RJ 45 24-28 5-10 5-10 24-28 5-10
Porturi SFP N/A 1-2 N/A 3-4 1-2
Viteză transfer Fast Ethernet 2.5G Fast Ethernet 2.5G 10G+
Sursă inclusă Yes Yes Yes Yes Yes
Sursă de alimentare AC AC DC/PoE AC AC
Alimentare PoE No — Yes No Yes
Capacitate switching 4.8 Gbit/s 80 Gbit/s 12 Gbit/s 200 Gbit/s 80 Gbit/s
Metode autentificare — AAA, TACACS+ — AAA, RADIUS, TACACS+ RADIUS
Montare rack — Yes — Yes Yes
Rată forwarding 3.57 Mpps 59.52 Mpps 0.8928 Mpps 14.88 Mpps 59.52 Mpps
Stivuibil No — — No No
Suport 10G No Yes No Yes No
Suport QoS — Yes Yes Yes Yes
Suport VLAN — Yes — Yes Yes
Adâncime 180 mm 180 mm 101 mm 180 mm 131 mm
Lățime 294 mm 294 mm 158 mm 440 mm 226 mm
Înălțime — 44 mm 25 mm 44 mm 35 mm
Viteză rețea LAN 10,100 Mbit/s 100,1000,2500 Mbit/s — — 10,100,1000,2500 Mbit/s
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Construcție laptop — 1U — 1U Desktop/Wall-Mounting
Număr ventilatoare — 2 fan(s) 0 fan(s) 1 fan(s) —
Tipuri cabluri suportate Cat3, Cat5e, Cat4, Cat5 — Cat3, Cat4, Cat5, Cat5e — —
Tip ambalare Box Box Box — —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
24x RJ-45
Porturi
24x RJ45
Viteza de transfer
10/100 Mbps
Alimentare
100-240VAC, 50/60Hz
Dimensiuni
294 × 180 × 44 mm
Montare in rack
13 inch
Functii LED
Power, Link/Act, 100Mbps
Adrese MAC
8000
Specificații tehnice 48 caracteristici
AC input voltage
100 - 240 V
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cables included
AC
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology
10GBASE-T, 100BASE-TX
Fanless
Yes
Fast Ethernet (copper) ports quantity
24
Harmonized System (HS) code
85176990
Heat dissipation
10.88 BTU/h
LAN port type
FastEthernet
MAC address table
8000 entries
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
400 mm
Package weight
2 kg
Package width
250 mm
Packet buffer memory
2 MB
Power connector
AC-in jack
Power consumption (typical)
3.53 W
Rack mount kit
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Supported network protocols
CSMA/CD, TCP/IP
Switch type
Unmanaged
Debit de transfer
3.57 Mpps
Management
nu
Montare in rack
Nu
PoE
Nu
Porturi RJ 45
24-28
Porturi SFP
N/A
Viteză transfer
Fast Ethernet
Sursă inclusă
Yes
Sursă de alimentare
AC
Alimentare PoE
No
Capacitate switching
4.8 Gbit/s
Rată forwarding
3.57 Mpps
Stivuibil
No
Suport 10G
No
Adâncime
180 mm
Lățime
294 mm
Material carcasă
Metal
Viteză rețea LAN
10,100 Mbit/s
Producător
TP-LINK
Tipuri cabluri suportate
Cat3, Cat5e, Cat4, Cat5
Tip ambalare
Box
