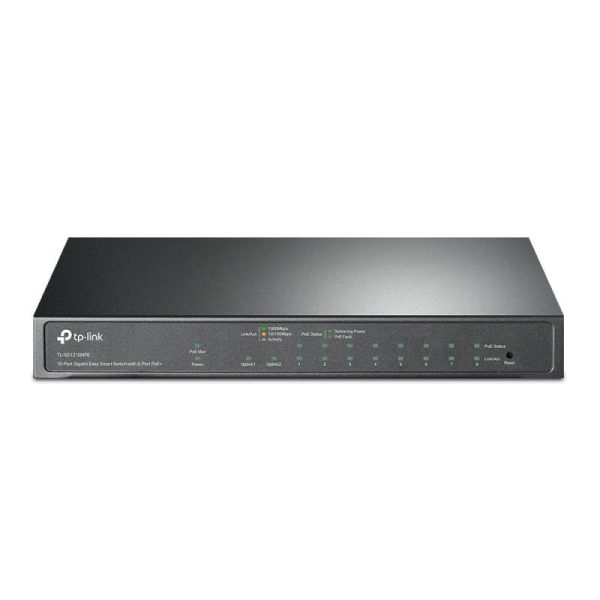

Switch TP-Link TL-SG1210MPE, 9 port, 10/100/1000 Mbps

Switchuri

Switch TP-Link TL-SG1210MPE, 9 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG1210MPE

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător De confirmat Producător: De confirmat

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SG1210MPE, 9 port, 10/100/1000 Mbps Switch TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 2.5G, 8 porturi Switch TP-LINK LiteWave LS106LP, Fast Ethernet, 6 porturi, PoE Switch TP-LINK JetStream TL-SG3428X-M2, 2.5G, 24 porturi Switch TP-LINK Omada SG2210XMP-M2, 8 porturi, 10G+
Culoare produs Black Black Black Black Black
2.5G Ethernet (copper) ports quantity — 8 — 24 —
Access Control List (ACL) — Yes — Yes Yes
AC input frequency — 50/60 Hz 50 Hz 50/60 Hz —
AC input voltage — 100 - 240 V 220 V 100 - 240 V —
ARP inspection — Yes — Yes Yes
Authentication — MAC-based authentication, Port-based authentication — Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication MAC-based authentication, Port-based authentication
Basic switching RJ-45 Ethernet ports type 9, Gigabit Ethernet (10/100/1000) 2.5G Ethernet (100/1000/2500), 8 6, Fast Ethernet (10/100) 2.5G Ethernet (100/1000/2500), 24 2.5G Ethernet (100/1000/2500), 8
BPDU filtering/protection — Yes — Yes —
Broadcast storm control Yes Yes — Yes Yes
Cables included — AC — LAN (RJ-45) —
Certification — CE, FCC, RoHS CE, FCC, RoHS CE, FCC, RoHS —
Cloud-managed — Yes — Yes Yes
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — Yes — Yes Yes
Console port — RJ-45/micro-USB — RJ-45/micro-USB —
DC input voltage 53.5 V — 53.5 V — —
DHCP features — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Fanless — Yes Yes — —
Flow control support — Yes Yes Yes Yes
GARP VLAN Registration Protocol (GVRP) — Yes — Yes —
Harmonized System (HS) code 85176990 85176990 — — —
Head-of-line (HOL) blocking — Yes — Yes —
Heat dissipation — 51.18 BTU/h 162.38 BTU/h 154.38 BTU/h 614.58 BTU/h
IGMP snooping Yes Yes — Yes Yes
Input current 2.43 A — 0.81 A — —
IP-MAC-Port binding — Yes — Yes —
Jumbo frames 16000 9000 — 9000 9000
Jumbo frames support Yes Yes Yes Yes Yes
LAN port type Gigabit FastEthernet Gigabit Gigabit FastEthernet
LED indicators Yes Yes Yes Yes Yes
Link aggregation — Yes — Yes Yes
Loop protection Yes Yes — Yes Yes
MAC address table 4000 entries 16000 entries 2000 entries 32000 entries 16000 entries
Management protocols — SNMPv1/v2c/v3, SNTP — SNMP v1/v2c/v3, SNTP —
MIB support — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 — Yes Y
Multicast Listener Discovery (MLD) snooping — Y — Y —
Multicast support — Yes — Yes Yes
Networking standards — IEEE 802.1D, IEEE 802.1s, IEEE 802.1w IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Number of static routes — 48 — 48 —
Number of VLANs — 4000 — — 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 315 mm 250 mm — 250 mm —
Package height 70 mm 80 mm — 80 mm —
Package weight 15.8 kg 2.84 kg — 3 kg —
Package width 240 mm 528 mm — 528 mm —
Packet buffer memory — 12 MB — 16 MB 9 MB
Port mirroring Yes Yes — Yes Yes
Power connector DC-in jack AC-in jack — AC-in jack AC/DC
Power consumption (max) — — 47.76 W 45.1 W 180.1 W
Power over Ethernet (PoE) power per port 30 W — 15.4 W — —
Power over Ethernet plus (PoE+) ports quantity 8 — — — 8
Quick start guide — Yes — Yes Yes
Rackable — — — Yes No
Rate limiting Yes Yes — Yes Yes
Redundant PSU — — — Yes No
Security algorithms — HTTPS, SSH, SSH-2, SSL/TLS — — SNMP, SNMPv2, SNMPv3
SFP module slots quantity — 2 — 4 2
Spanning tree protocol — Yes — Yes Yes
SSH/SSL support — Yes — Yes —
Static route — Yes — Yes Yes
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes —
Switch layer L2 L2 — L2 L2/L2+
Switch type Managed Managed Unmanaged Managed Managed
System event log — Yes — Yes Yes
Virtual LAN features — MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN Protocol-based VLAN, Tagged VLAN, Voice VLAN
Wall mountable — — Yes — Yes
Web-based management — Yes — Yes Yes
Management Da nu nu Da Da
Montare in rack Nu Nu Nu Da Da
PoE Da Nu Da Nu Nu
Porturi LAN — — — 24 8
Porturi RJ 45 5-10 5-10 5-10 24-28 5-10
Porturi SFP 1-2 1-2 N/A 3-4 1-2
Viteză transfer Gigabit 2.5G Fast Ethernet 2.5G 10G+
Sursă inclusă Yes Yes Yes Yes Yes
Sursă de alimentare — AC DC/PoE AC AC
Alimentare PoE Yes — Yes No Yes
Capacitate switching 20 Gbit/s 80 Gbit/s 12 Gbit/s 200 Gbit/s 80 Gbit/s
Metode autentificare — AAA, TACACS+ — AAA, RADIUS, TACACS+ RADIUS
Montare rack No Yes — Yes Yes
Rată forwarding 14.88 Mpps 59.52 Mpps 0.8928 Mpps 14.88 Mpps 59.52 Mpps
Stivuibil — — — No No
Suport 10G No Yes No Yes No
Suport QoS Yes Yes Yes Yes Yes
Suport VLAN — Yes — Yes Yes
Adâncime 126 mm 180 mm 101 mm 180 mm 131 mm
Lățime 209 mm 294 mm 158 mm 440 mm 226 mm
Înălțime 26 mm 44 mm 25 mm 44 mm 35 mm
Viteză rețea LAN — 100,1000,2500 Mbit/s — — 10,100,1000,2500 Mbit/s
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Construcție laptop — 1U — 1U Desktop/Wall-Mounting
Număr ventilatoare — 2 fan(s) 0 fan(s) 1 fan(s) —
Tip ambalare — Box Box — —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“10-Port Gigabit Easy Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case FEATURE: PoE Auto Recovery, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play”

Specificații tehnice 49 caracteristici
Culoare produs
Black
Basic switching RJ-45 Ethernet ports type
9, Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
DC input voltage
53.5 V
Fiber ports quantity
1
Harmonized System (HS) code
85176990
IGMP snooping
Yes
Input current
2.43 A
Jumbo frames
16000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
Loop protection
Yes
MAC address table
4000 entries
Manual
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
315 mm
Package height
70 mm
Package weight
15.8 kg
Package width
240 mm
Port mirroring
Yes
Power connector
DC-in jack
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Rate limiting
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch layer
L2
Switch type
Managed
Conector fibră optică
SFP
Management
Da
Montare in rack
Nu
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
1-2
Viteză transfer
Gigabit
Sursă inclusă
Yes
Alimentare PoE
Yes
Capacitate switching
20 Gbit/s
Montare rack
No
Rată forwarding
14.88 Mpps
Suport 10G
No
Suport QoS
Yes
Adâncime
126 mm
Lățime
209 mm
Înălțime
26 mm
Producător
TP-LINK
