TELTONIKA INDUSTRIAL 8Port Unmanaged POE TSW200, Interfata: 8 x ETH

Switchuri

TELTONIKA INDUSTRIAL 8Port Unmanaged POE TSW200, Interfata: 8 x ETH

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TSW200

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică TELTONIKA INDUSTRIAL 8Port Unmanaged POE TSW200, Interfata: 8 x ETH Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
Alte caracteristici
10G support — No No — No
AC input frequency — 50 - 60 Hz 50 Hz 50 - 60 Hz 50 - 60 Hz
Auto-negotiation — Yes Yes — Yes
Auto MDI/MDI-X Yes — Yes Yes Yes
Basic switching RJ-45 Ethernet ports type 8 8 Fast Ethernet (10/100) 24 24
Cable types supported — Cat5, Cat5e, Cat6 Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e
Certification — CE, FCC — CE, FCC, IC —
DC input voltage 7 - 57 V — 53.5 V 44 - 57 V —
Depth 442 mm 8.2 mm 98 mm 200 mm 180 mm
Flow control support — — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate — — 0.744 Mpps 38.69 Mpps 35.7 Mpps
Full duplex — — Yes Yes Yes
Harmonized System (HS) code — — 85176990 85176990 85176990
Heat dissipation — — 5.73 BTU/h — 44.63 BTU/h
Height 132 mm 27 mm 25 mm 43.7 mm 44 mm
Housing material Aluminium Metal — — —
Input current — 2.5 A 1.31 A — —
Jumbo frames 9216 — 2000 — 10000
Jumbo frames support Yes — Yes Yes Yes
LAN ports — — — 24 24
LAN port type Gigabit Gigabit — 10Gigabit Gigabit
Layer — — — Layer-2 Unmanaged
LED indicators LAN, PoE, Status Yes Yes Activity, Link, PoE, Speed, System Yes
MAC address table 2000 entries 4096 entries 2000 entries — 8000 entries
Management nu nu nu Da nu
Montare in rack Nu Nu Nu Da Nu
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u IEEE 802.3af IEEE 802.3af, IEEE 802.3x IEEE 802.3af, IEEE 802.3at IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) — 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -40 - 75 °C 0 - 40 °C 0 - 40 °C — 0 - 40 °C
Package depth — — 196 mm — 400 mm
Package height — — 121 mm — 80 mm
Package type — — Box — Box
Package weight — — 760 g — 1.95 kg
Package width — — 131 mm — 250 mm
PoE Da Da Da Da Nu
Port mirroring — No — Yes —
Porturi RJ 45 5-10 5-10 5-10 24-28 24-28
Porturi SFP 1-2 N/A N/A 1-2 N/A
Power connector — DC-in jack — — DC-in jack
Power consumption (max) 106 W — 63.51 W — 13.08 W
Power over Ethernet (PoE) Yes Yes Yes Yes No
Power over Ethernet (PoE) ports quantity 8 — 4 — —
Power over Ethernet (PoE) power per port 30 W 30 W — 32 W —
Power over Ethernet (PoE) voltage 57 V 24 - 48 V — — —
Power over Ethernet plus (PoE+) ports quantity — — 4 16 —
Power source DC AC DC/PoE — AC
Power supply included No Yes Yes Yes Yes
Quality of Service (QoS) support — No — — Yes
Rackable — — — Yes No
Rack mounting Yes No No Yes Yes
Redundant PSU — — — No Yes
SFP module slots quantity 2 — — 2 —
Stackable — No No Yes Yes
Storage relative humidity (H-H) — 5 - 90% 5 - 90% — 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C — -40 - 70 °C
Store-and-forward — — Yes — Yes
Switching capacity — 16 Gbit/s 1 Gbit/s 52 Gbit/s 48 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Managed Unmanaged
Total Power over Ethernet (PoE) budget 240 W 60 W 58 W 92 W —
User guide — — Yes — Yes
Viteza transfer Gigabit Gigabit Fast Ethernet Gigabit Gigabit
Width 95.1 mm 192 mm 99.8 mm 442.4 mm 294 mm
Laptopuri - Construcție
Culoare Aluminium Black Black Silver Grey
Greutate 456 g 500 g — 3 kg —
Laptopuri - Generale
Garanție comercială 24 60 60 24 60
Producător TELTONIKA EXTRALINK TP-LINK UBIQUITI TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

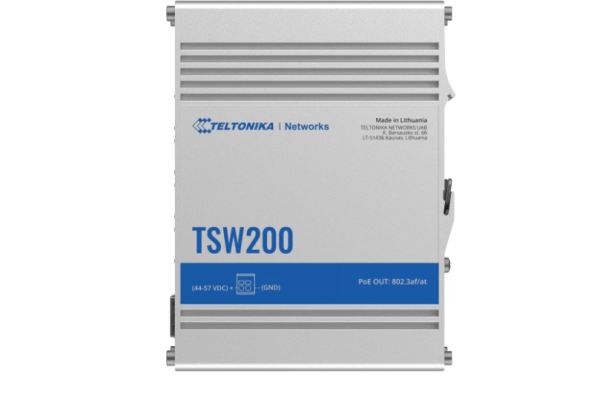

TELTONIKA INDUSTRIAL 8Port Unmanaged POE TSW200, Interfata: 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, 2 x SFP ports, Standarde wireless: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, Porturi POE: 1-8, Buget POE: 240W, Latime de banda: 20 Gbps, Carcasa aluminiu, Dimensiuni: 132 x 44.2 x 95.1 mm, Greutate: 517 g, IP30.

Specificații tehnice 40 caracteristici
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
8
DC input voltage
7 - 57 V
Depth
442 mm
DIN rail mounting
Yes
Height
132 mm
Housing material
Aluminium
International Protection (IP) code
IP30
Jumbo frames
9216
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
LAN, PoE, Status
MAC address table
2000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Operating temperature (T-T)
-40 - 75 °C
Packet buffer memory
0.128 MB
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
1-2
Power consumption (max)
106 W
Power consumption (typical)
18 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) voltage
57 V
Power source
DC
Power supply included
No
Rack mounting
Yes
SFP module slots quantity
2
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
240 W
Viteza transfer
Gigabit
Wall mountable
Yes
Width
95.1 mm
Culoare
Aluminium
Greutate
456 g
Garanție comercială
24
Producător
TELTONIKA
