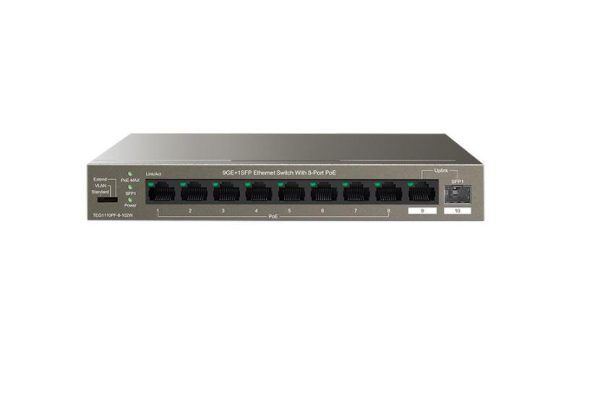

Tenda switch TEG1110PF-8-102W, 9GE+1SFP Ethernet Switch, 8-Port PoE, interfata: 8

Switchuri

Tenda switch TEG1110PF-8-102W, 9GE+1SFP Ethernet Switch, 8-Port PoE, interfata: 8

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TEG1110PF-8-102W

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Tenda switch TEG1110PF-8-102W, 9GE+1SFP Ethernet Switch, 8-Port PoE, interfata: 8 "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
Alte caracteristici
10G support No Yes No No No
AC input frequency — — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Auto-negotiation — — Yes Yes Yes
Auto MDI/MDI-X — — — Yes Yes
Basic switching RJ-45 Ethernet ports type 9 48 8 Fast Ethernet (10/100) 24
Cables included — AC — — AC
Cable types supported — — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e
Cloud-managed — Yes No — —
Compliance certificates Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS —
Configuring Location Settings (CLI) — Yes No — —
DC input voltage 51 V — — 5 V —
Flow control support — Yes — Yes Yes
Forwarding rate — 130.9 Mpps — — 35.7 Mpps
Full duplex — — — Yes Yes
Harmonized System (HS) code — — — 85176990 85176990
Heat dissipation — 2169.2 BTU/h — 6.99 BTU/h 44.63 BTU/h
Input current 2 A — 2.5 A 0.6 A —
Jumbo frames — 9000 — — 10000
Jumbo frames support — Yes — — Yes
LAN ports — 48 — — 24
LAN port type Gigabit Gigabit Gigabit FastEthernet Gigabit
Layer — Layer-2 — — Unmanaged
LED indicators Link, Power Yes Yes Yes Yes
MAC address table 16000 entries 16000 entries 4096 entries 1000 entries 8000 entries
Management nu Da nu nu nu
Montare in rack Nu Da Nu Nu Nu
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) — 10 - 90% 10 - 80% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — — 139 mm 400 mm
Package height — — — 85 mm 80 mm
Package type — — — Box Box
Package weight — — — 240 g 1.95 kg
Package width — — — 100 mm 250 mm
Packet buffer memory — 12 MB — 2 MB —
PoE Da Da Da Nu Nu
Port mirroring — Yes No — —
Porturi RJ 45 5-10 28+ 5-10 5-10 24-28
Porturi SFP 1-2 1-2 N/A N/A N/A
Power connector DC-in jack AC-in jack DC-in jack DC-in jack DC-in jack
Power consumption (max) — 635.7 W — 2.2 W 13.08 W
Power over Ethernet (PoE) Yes Yes Yes No No
Power over Ethernet (PoE) power per port 30 W 30 W 30 W — —
Power source DC AC AC DC AC
Power supply included Yes Yes Yes No Yes
Quality of Service (QoS) support — Yes No — Yes
Quick start guide — Yes — Yes —
Rackable — Yes — — No
Rack mounting No Yes No No Yes
Redundant PSU — No — — Yes
Reset button — Yes Yes — —
Stackable — No No No Yes
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes — Yes Yes
Supported network protocols — — — CSMA/CD, TCP/IP CSMA/CD, TCP/IP
Sustainability compliance Yes — — Yes —
Switching capacity 20 Gbit/s 176 Gbit/s 16 Gbit/s 16 Gbit/s 48 Gbit/s
Switch type Managed Managed Unmanaged Unmanaged Unmanaged
System event log — Yes No — —
Total Power over Ethernet (PoE) budget 92 W 500 W 60 W — —
Viteza transfer Gigabit 10G+ Gigabit Fast Ethernet Gigabit
Web-based management — Yes No — —
Laptopuri - Caracteristici fizice 25.09
Adâncime 104 mm 330 mm 8.2 mm 7.9 mm 180 mm
Lățime 177.5 mm — 192 mm 134.5 mm 294 mm
Înălțime 26 mm — 27 mm 22.5 mm 44 mm
Laptopuri - Construcție
Culoare — — Black White Grey
Laptopuri - Generale
Garanție comercială 36 60 60 36 60
Producător TENDA TP-LINK EXTRALINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — 1U 1U — —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Tenda switch TEG1110PF-8-102W, 9GE+1SFP Ethernet Switch, 8-Port PoE, interfata: 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power), 1 * 10/100/1000 Mbps Base-T Ethernet port (Data), 1 * 100/1000 Mbps Base-X SFP port, standarde retea: IEEE 802.3 IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, dimensiuni: 177.5mmx104.0mmx26.0mm(L*W*H), capacitate: 20 Gbps, buffer: 2m, buget POE: Single port: AF: 15.4W, AT: 30W.

Specificații tehnice 38 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
9
Compliance certificates
Federal Communications Commission (FCC), RoHS
DC input voltage
51 V
Input current
2 A
Installed SFP modules quantity
1
LAN port type
Gigabit
LED indicators
Link, Power
MAC address table
16000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Packet forwarding rate (1 Gbps)
14.9 pps
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
1-2
Power connector
DC-in jack
Power consumption (typical)
9.2 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Power source
DC
Power supply included
Yes
Rack mounting
No
Storage relative humidity (H-H)
5 - 90%
Store-and-forward
Yes
Sustainability compliance
Yes
Switching capacity
20 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
92 W
Viteza transfer
Gigabit
Wall mountable
Yes
Adâncime
104 mm
Lățime
177.5 mm
Înălțime
26 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Garanție comercială
36
Producător
TENDA
