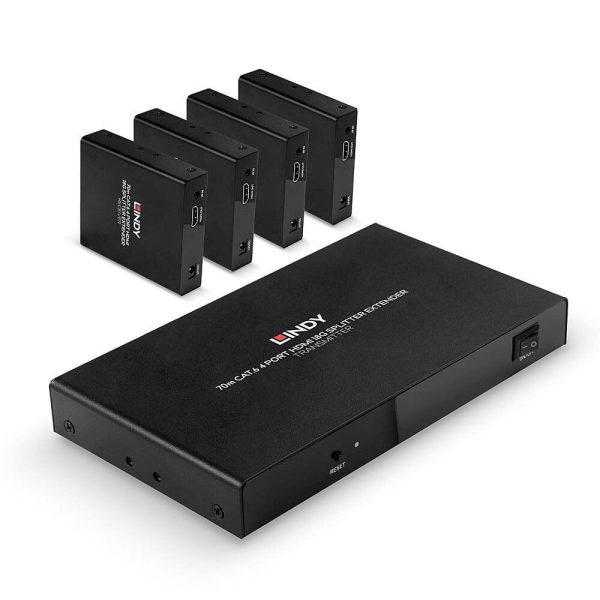

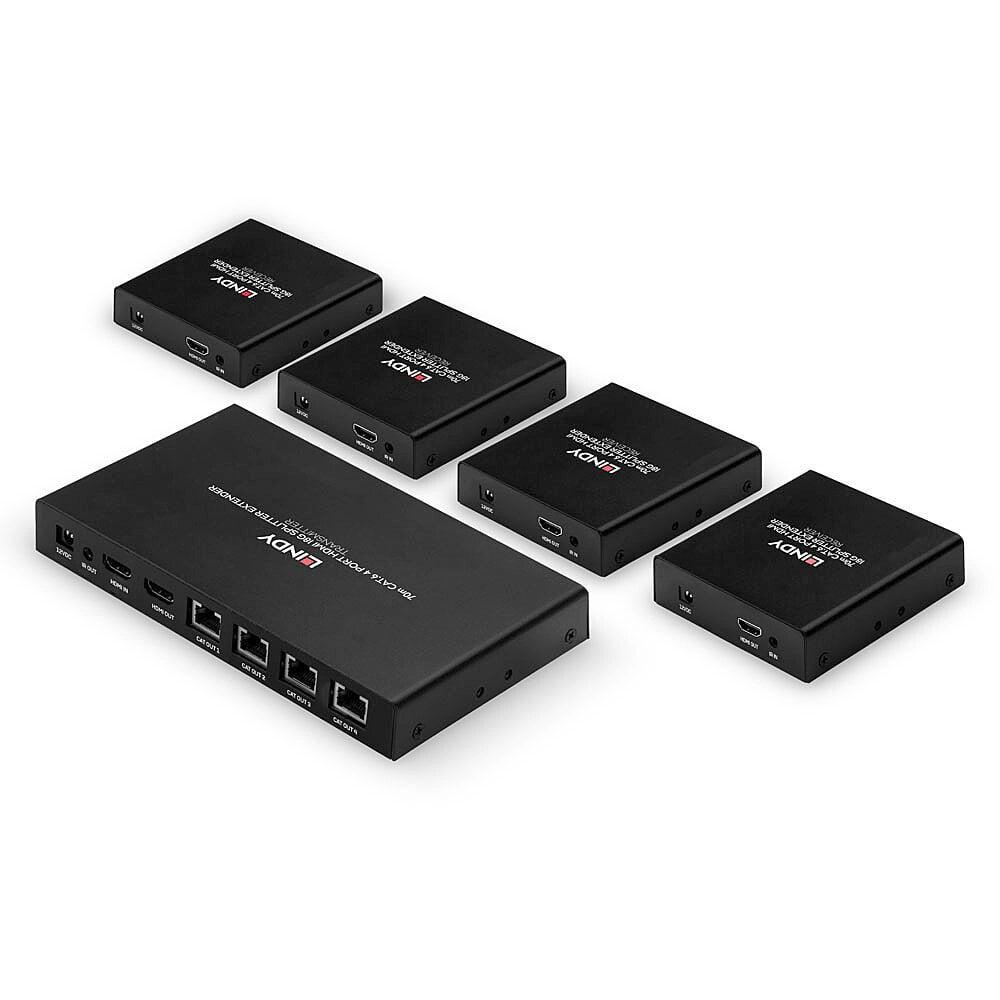

Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender
1.992,99 lei 2.419,99 lei
Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: LY-38262
Livrare și beneficii
Compară cu produse similare
Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender
Splitter semnal video Lindy 4x HDMI 2.0 18G, latime de
294,99 lei 432,99 lei
Lindy 2 Port HDMI 2.0 18G Splitter
349,99 lei 524,99 lei
Splitter Lindy 8 Port HDMI 2.0, latime de banda suportata
580,99 lei 878,99 lei
Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender
1.301,98 lei 1.579,99 lei
Vezi comparația completă
| Caracteristică | Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender | Splitter semnal video Lindy 4x HDMI 2.0 18G, latime de | Lindy 2 Port HDMI 2.0 18G Splitter | Splitter Lindy 8 Port HDMI 2.0, latime de banda suportata | Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| AC adapter included | — | — | Yes | Yes | Yes |
| AC input voltage | — | 5 V | — | 12 V | — |
| Cables included | IR, IR sensor | — | — | — | IR |
| Cable types supported | Cat6 | — | — | — | Cat6 |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 | CE, FCC, REACH & California Proposition 65 | — | CE, FCC, REACH & California Proposition 65 | CE, FCC, RoHS, REACH |
| Compliance certificates | — | RoHS | — | RoHS | — |
| Connectivity technology | Wired | — | — | — | Wired |
| DC-in jack | Yes | Yes | Yes | Yes | — |
| Depth | — | 63 mm | 14.4 mm | 10.2 mm | — |
| Garantie | 24 | 24 | 24 | 24 | 24 |
| Harmonized System (HS) code | — | 85176990 | 85176990 | 85176990 | 84733080 |
| HDCP | Yes | Yes | Yes | Yes | — |
| HDMI version | 2.0 | 2.0 | 2.0 | — | — |
| HD type | — | 4K Ultra HD | 4K Ultra HD | 4K Ultra HD | — |
| Height | — | 16 mm | 63 mm | 16 mm | — |
| Housing material | — | Metal | Metal | Metal | — |
| LED indicators | — | Yes | Yes | Yes | Yes |
| Manual | Yes | Yes | Yes | Yes | Yes |
| MAXIMUM-RESOLUTION | 3840 x 2160 pixels | 3840 x 2160 pixels | 4096 x 2160 pixels | 3840 x 2160 pixels | — |
| Maximum refresh rate | 60 Hz | 60 Hz | 60 Hz | — | — |
| Maximum transfer distance | 70 m | — | — | — | 50 m |
| Number of displays supported | — | — | — | 8 | 4 |
| Operating relative humidity (H-H) | 5 - 90% | 20 - 90% | 20 - 90% | 20 - 90% | 20 - 90% |
| Operating temperature (T-T) | 0 - 50 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | 60 mm | 55 mm | 65 mm | 183 mm | — |
| Package height | 354 mm | 183 mm | 115 mm | 68 mm | — |
| Package type | Box | Box | Box | Box | — |
| Package weight | 2 kg | 526 g | 128 g | 913 g | — |
| Package width | 423 mm | 248 mm | 205 mm | 277 mm | — |
| Porturi Video: | 4 | 4 | 2 | 8 | 4 |
| Product colour | Black | Black | Black | Black | Black |
| Receiver weight | 199 g | — | — | — | 131 g |
| Refresh rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Rezolutie maxima | 3840 x 2160 pixels | 3840 x 2160 pixels | 3840 x 2160 pixels | 3840 x 2160 pixels | 1920 x 1080 pixels |
| Storage temperature (T-T) | — | -20 - 60 °C | — | -20 - 60 °C | -20 - 60 °C |
| Transmitter weight | 390 g | — | — | — | 443 g |
| Video out | — | 4x HDMI | 2x HDMI | 8x HDMI | — |
| Video ports quantity | — | 5 | 3 | 9 | — |
| Video port type | — | HDMI | HDMI | HDMI | — |
| Weight | — | 373 g | 40 g | 728 g | — |
| Width | — | 163 mm | 120 mm | 243 mm | — |
| Producator | LINDY | LINDY | LINDY | LINDY | LINDY |
Analiză inteligentă a produsului
Descriere oficială
Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender Description Distribute 4K HDMI signals to up to 4 displays in multiple locations Supports resolutions up to 4K@60Hz, with additional support for HDR Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18Gbps Maximum Distance: 70m (229.66ft) Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID management: Preset Supported Audio: LPCM 2CH Separate Audio Ports: – IR Support: 20-60KHz CEC Support: – Serial Interface: – Transmission Protocol: – Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: GSV2006 & GSV5100 Special Features: PoC (Power over Cable) Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: – Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: Transmitter: 180x103x23mm (7.09×4.06×0.91in) , Receiver: 100x88x23mm (3.94×3.46×0.91in) Housing Material: Metal Net Weight: Transmitter: 0.39kg (0.86lb), Receiver: 0.199kg (0.44lb) Operating Temperature: 0°C – 50°C (32°F – 122°F) Storage Temperature: -10°C – 80°C (14°F – 176°F) Humidity: 5 – 90% RH (non-condensing) Power Requirements: 12VDC 2A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 423x60x354mm (16.65×2.36×13.94in) Gross Weight: 2kg (4.41lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Propositon 65 Package Contents 70m Cat.6 4 Port HDMI 4K60 Splitter Extender 4 x Cat.6 HDMI Receivers IR Emitter Cable, 1.2m 4 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 8 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38262 EAN: 4002888382625 https://www.lindy-international.com/70m-Cat-6-4-Port-HDMI-4K60-Splitter- Extender-.htm?websale8=ld0101.ld021102&pi=38262&ci=10
Specificații tehnice 41 caracteristici ⌄
- Audio formats supported
- LPCM
- Bandwidth
- 18 Gbit/s
- Cables included
- IR, IR sensor
- Cable types supported
- Cat6
- Certification
- CE, UKCA, FCC, RoHS, REACH & California Propositon 65
- Chipset
- GSV2006, GSV5100
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Extended display identification data (EDID)
- Yes
- Garantie
- 24
- HDCP
- Yes
- HDCP version
- 2.2
- HDMI in
- 1
- HDMI version
- 2.0
- Manual
- Yes
- Material
- Metal
- MAXIMUM-RESOLUTION
- 3840 x 2160 pixels
- Maximum refresh rate
- 60 Hz
- Maximum transfer distance
- 70 m
- Mounting brackets included
- Yes
- Number of HDMI outputs
- 5
- Operating relative humidity (H-H)
- 5 - 90%
- Operating temperature (T-T)
- 0 - 50 °C
- Package depth
- 60 mm
- Package height
- 354 mm
- Package type
- Box
- Package weight
- 2 kg
- Package width
- 423 mm
- Porturi Video:
- 4
- Product colour
- Black
- Receiver dimensions (WxDxH)
- 100 x 88 x 23 mm
- Receiver weight
- 199 g
- Refresh rate
- 60 Hz
- Remote (IR) input
- 4
- Remote (IR) output
- 1
- Rezolutie maxima
- 3840 x 2160 pixels
- RJ-45 input ports
- 4
- RJ-45 output ports
- 4
- Transmitter dimensions (WxDxH)
- 180 x 103 x 23 mm
- Transmitter weight
- 390 g
- Producator
- LINDY
