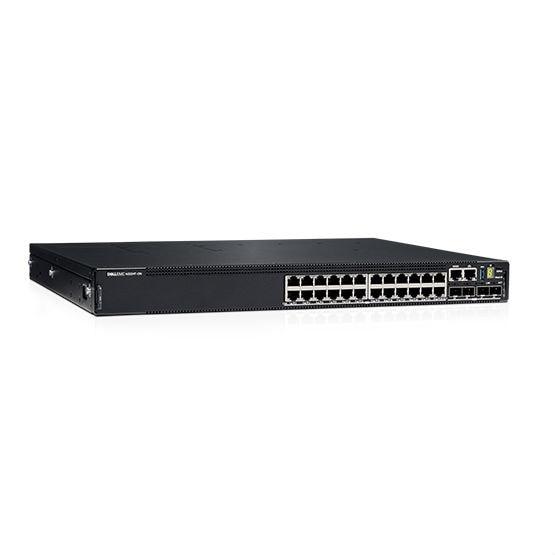

Dell EMC Switch N3224T-ON, 24x1G RJ-45, 4x10G SFP+, 2x100G QSFP28,

Switchuri

Dell EMC Switch N3224T-ON, 24x1G RJ-45, 4x10G SFP+, 2x100G QSFP28,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: 210-ASPF17031794

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Dell EMC Switch N3224T-ON, 24x1G RJ-45, 4x10G SFP+, 2x100G QSFP28, CUDY 8-Port Gigabit Light Managed Switch, 8 10/100/1000M RJ45 Ports, ZYXEL GS1100-24ES 24PORT GBE UNMG SWITCH "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
Alte caracteristici
10G support — — — Yes No
Alimentare Sursa interna 550W DC 5V 0.55A 100 - 240 V — —
Basic switching RJ-45 Ethernet ports type — — — No 48
Broadcast storm control — — — Yes Yes
Console port — — — RJ-45/micro-USB RJ-45
Depth — — — 180 mm 322 mm
DHCP features — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client
Dimensiuni 434 x 43.4 x 400 mm 138 x 78 x 25 mm 267 x 162 x 44 mm — —
Flow control support — — — Yes Yes
Forwarding rate — 11.904 Mpps 35.7 Mpps 119.04 Mpps —
Garantie — 24 60 60 24
Greutate 6.24 kg 214.5 g 1.83 kg — —
Head-of-line (HOL) blocking — — — Yes Yes
IGMP snooping — — — Yes Yes
Jumbo frames support — — — Yes Yes
LAN ports — 8 24 — 48
LAN port type — Gigabit Gigabit 10Gigabit Gigabit
Layer — Layer-2 Unmanaged — Layer-2
LED indicators — Power, Speed, Link, ACT — Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table — — — 32000 entries 8000 entries
Management Da Da Unmanaged Da Da
Management protocols — — — SNMPv1/v2c/v3, SNTP IGMP, SNMP, FTP
Memorie Buffer — 4 Mbit 1 M — —
MIB support — — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 RFC 1213, RFC 1643, RFC 1493
Montare in rack Da Nu Da Nu Da
Multicast support — — — Yes Yes
Numar porturi 24x RJ454x SFP+ (uplink)2x QSFP28 8x RJ45 24x RJ45 — —
Operating relative humidity (H-H) — — — 10 - 90% 5 - 90%
Operating temperature (T-T) — — — 0 - 45 °C 0 - 40 °C
Packet buffer memory — — — 16 MB 6 MB
PoE Nu Nu No Nu Nu
Port mirroring — — — Yes Yes
Porturi RJ 45 24-28 8 10/100/1000M RJ45 Ports 24 1-4 28+
Porturi SFP 3-4 N/A 1-2 5-8 1-2
Power connector — — — DC-in jack DC-in jack
Power over Ethernet (PoE) — — — No No
Protocoale de rutare OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast IGMP Snooping, Loop Prevention, DHCP Snooping, STP/RSTP, LLDP Config and Neighbors, MTU VLAN, Port-Based VLAN, 802.1Q VLAN, Voice VLAN, DSCP QoS, 802.1p QoS, Port-Based QoS — — —
Putere consumata (W) 201W Max: 2.75 WIdle: 2.2 W 12.21 W — —
Quality of Service (QoS) support — — — Yes Yes
Rackable — No Yes — Yes
Rack mounting — — — Yes Yes
Rate limiting — — — Yes Yes
Redundant PSU — No No — No
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2 WEB Management, SNMP V1/V2 — — —
Spanning tree protocol — — — Yes Yes
Stackable Da No No — No
Standarde — IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1ab, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z — —
Static port security — — — Yes Yes
Storage relative humidity (H-H) — — — 5 - 90% 5 - 95%
Storage temperature (T-T) — — — -40 - 70 °C -25 - 70 °C
Switch capacity 528 Gbps 16 Gbps 48 Gbit/s — —
Switch layer — — — L2+/L3 L2
Switch type — — — Managed Managed
Tabela de adrese MAC 32K 8 K 16K — —
Tehnologie de cablare RJ45 Base-T RJ45 Base-T — — —
Tip Switch Retea RJ45 Retea RJ45 Retea RJ45 — —
Viteza transfer 10G+ Gigabit Gigabit 10G+ Gigabit
Viteza transfer LAN 10/100/1000 Mbps 1 Gbps 10/100/1000 Mbps — —
VLAN support — — — Yes Yes
Web-based management — — — Yes Yes
Producator DELL CUDY ZYXEL TP-LINK ALLIED TELESIS

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Dell EMC Switch N3224T-ON, 24x1G RJ-45, 4x10G SFP+, 2x100G QSFP28, 1xAC PSU, IO/PS, OS6, 3Yr ProSupport + NBD

Specificații tehnice 26 caracteristici
Alimentare
Sursa interna 550W
Dimensiuni
434 x 43.4 x 400 mm
Greutate
6.24 kg
Management
Da
Memorie
4 GB
Memorie Flash
8 GB
Metoda forwarding
733 Mpps
Montare in rack
Da
Numar porturi
24x RJ454x SFP+ (uplink)2x QSFP28
PoE
Nu
Porturi RJ 45
24-28
Porturi SFP
3-4
Protocoale de rutare
OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast
Putere consumata (W)
201W
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2
Rutare IP
IPv4: 1024IPv6: 1024
Securitate
MD5, AES, SSL, TLS, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Stackable
Da
Switch capacity
528 Gbps
Tabela de adrese MAC
32K
Tehnologie de cablare
RJ45 Base-T
Tip Switch
Retea RJ45
Viteza transfer
10G+
Viteza transfer LAN
10/100/1000 Mbps
VLANs
4094
Producator
DELL
