"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch

Switchuri

"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TL-SG3428XPP-M2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support Yes No No Yes Yes
Access Control List (ACL) Yes — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection Yes — — Yes Yes
Authentication Guest VLAN, MAC-based authentication, Port-based authentication — — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication —
Authentication type AAA, IEEE 802.1x, RADIUS, TACACS+ — — AAA, TACACS+ —
Auto-negotiation — Yes Yes — —
Auto MDI/MDI-X — Yes Yes — —
Basic switching RJ-45 Ethernet ports type 24 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
BPDU filtering/protection Yes — — Yes —
Broadcast storm control Yes — — Yes Yes
Cables included AC — AC AC AC
Cloud-managed Yes — — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — — Yes —
Console port RJ-45/micro-USB — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 330 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s — 10,100 Mbit/s — —
Fanless — Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flash memory 32 MB — — — 512 MB
Flow control support Yes Yes Yes Yes —
Form factor 1U — 1U — —
Forwarding rate 148.8 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Full duplex Yes Yes — — —
Garantie 24 36 36 60 24
Half duplex Yes Yes — — —
Harmonized System (HS) code — 85176990 85176990 — —
Head-of-line (HOL) blocking Yes — — Yes —
Heat dissipation 2153.45 BTU/h 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height — 22.5 mm 44 mm — 44 mm
IGMP snooping Yes — — Yes Yes
Internal memory 256 MB — — — 2000 MB
IP-MAC-Port binding Yes — — Yes Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert — — IPv6 Telnet, IPv6 ping, IPv6 tracert —
Jumbo frames 9000 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type Gigabit FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
Loop protection Yes — — Yes —
MAC address filtering — — — Yes Yes
MAC address table 32000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management Da nu nu Da —
Memory type DRAM — — — DRAM
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 —
Montare in rack Da Nu Nu Nu Da
Multicast Listener Discovery (MLD) snooping MLD v1/v2 — — Y —
Multicast support Yes — — Yes Yes
Networking standards — IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of queues 8 — — 8 —
Number of VLANs — — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth — 139 mm 528 mm — —
Package type — Box Box Box —
Package weight — 240 g 2.28 kg — —
Package width — 100 mm 250 mm — —
Packet buffer memory 16 MB 2 MB 2 MB 16 MB 12 MB
Password protection Yes — — — Yes
PoE Da Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 24-28 5-10 11-18 1-4 24-28
Porturi SFP 1-2 N/A N/A 5-8 3-4
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) 629.1 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) Yes No No No No
Power source AC/PoE DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour — White Black — —
Quality of Service (QoS) support Yes — — Yes Yes
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide Yes Yes — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit Yes — Yes Yes Yes
Rate limiting Yes — — Yes —
Security algorithms HTTPS, SSH, SSH-2, SSL/TLS — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity 4 — — 8 4
Spanning tree protocol Yes — — Yes —
SSH/SSL support Yes — — Yes Yes
Stackable No No No — Yes
Static port security Yes — — Yes Yes
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance Yes Yes Yes — —
Switching capacity 200 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Managed Unmanaged Unmanaged Managed Managed
System event log Yes — — Yes —
Virtual LAN features MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer 2.5G Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support Yes — — Yes Yes
Web-based management Yes — — Yes Yes
Width — 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

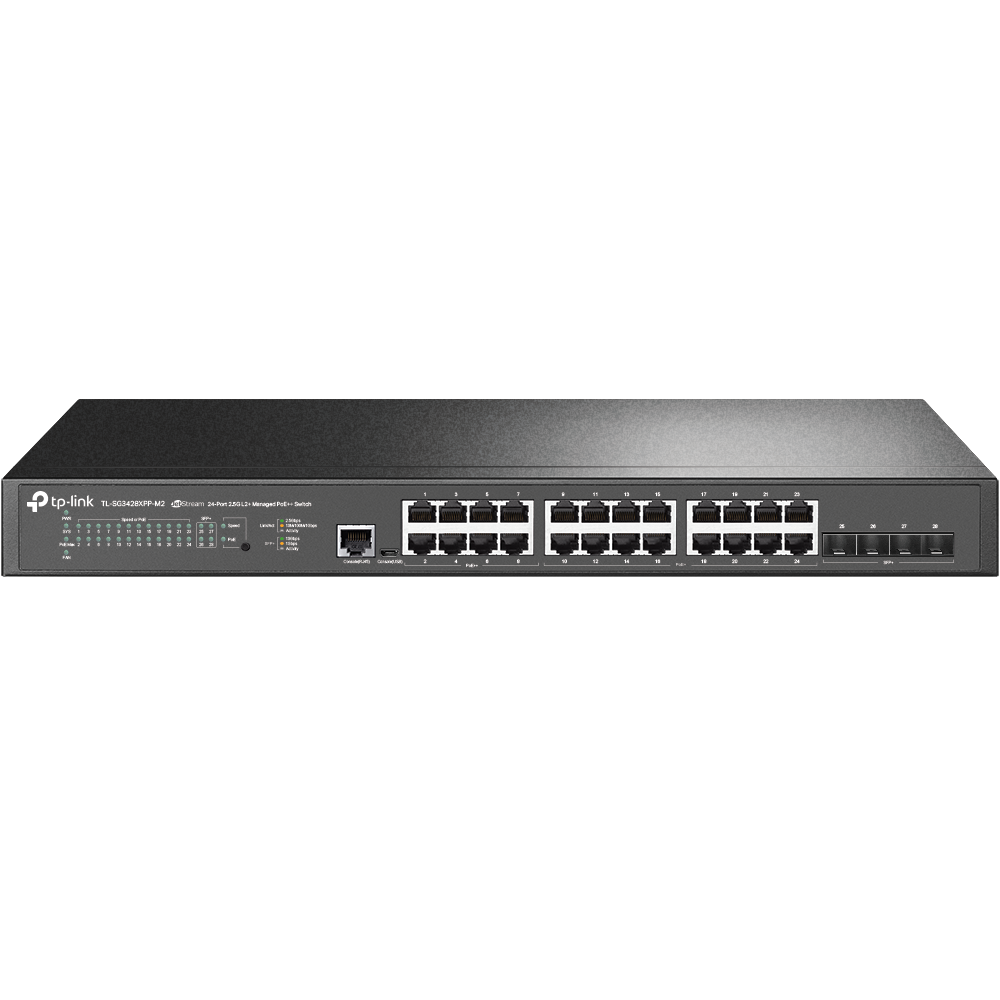

“JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G RJ45 Ports (8× 2.5G PoE++ Ports & 16× 2.5G PoE+ Ports), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificații tehnice 96 caracteristici
2.5G Ethernet (copper) ports quantity
24
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type
AAA, IEEE 802.1x, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports type
24
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/micro-USB
Depth
330 mm
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Flash memory
32 MB
Flow control support
Yes
Form factor
1U
Forwarding rate
148.8 Mpps
Full duplex
Yes
Garantie
24
GARP VLAN Registration Protocol (GVRP)
Yes
Half duplex
Yes
Head-of-line (HOL) blocking
Yes
Heat dissipation
2153.45 BTU/h
IGMP snooping
Yes
Internal memory
256 MB
IP-MAC-Port binding
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
IPv4 routes
48
IPv6 routes
48
Jumbo frames
9000
Jumbo frames support
Yes
LAN ports
24
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
32000 entries
Management
Da
Memory type
DRAM
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Montare in rack
Da
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Multicast support
Yes
Number of fans
3 fan(s)
Number of IP interfaces
32
Number of queues
8
Number of static routes
48
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
16 MB
Password protection
Yes
PoE
Da
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
1-2
Power consumption (max)
629.1 W
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Power over Ethernet plus (PoE+) ports quantity
16
Power source
AC/PoE
Power supply included
Yes
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide
Yes
Rackable
Yes
Rack mounting
Yes
Rack mount kit
Yes
Rate limiting
Yes
Redundant fans support
Yes
Redundant power supply (RPS) support
Yes
Redundant PSU
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
No
Static port security
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Sustainability compliance
Yes
Switching capacity
200 Gbit/s
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
500 W
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Viteza transfer
2.5G
VLAN support
Yes
Web-based management
Yes
Producator
TP-LINK
