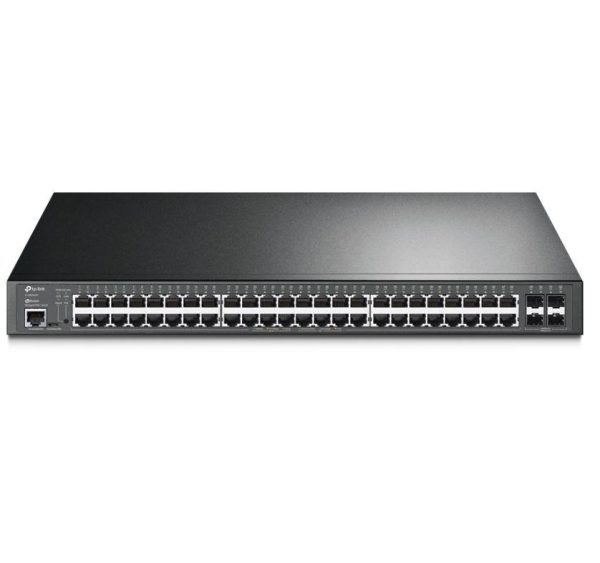

"JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT:

Switchuri

"JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT:

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG3452P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT: Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) Yes — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection Yes — — Yes Yes
Authentication MAC-based authentication, Port-based authentication — — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication —
Auto-negotiation — Yes Yes — —
Auto MDI/MDI-X — Yes Yes — —
Basic switching RJ-45 Ethernet ports type 48 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
BPDU filtering/protection Yes — — Yes —
Broadcast storm control Yes — — Yes Yes
Cables included AC — AC AC AC
Cloud-managed Yes — — Yes Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port RJ-45/micro-USB — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 330 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Ethernet LAN data rates 10,100,1000 Mbit/s — 10,100 Mbit/s — —
Fanless — Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support Yes Yes Yes Yes —
Form factor 1U — 1U — —
Forwarding rate 77.4 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Garantie 60 36 36 60 24
Harmonized System (HS) code 85176990 85176990 85176990 — —
Head-of-line (HOL) blocking Yes — — Yes —
Heat dissipation 1656.19 BTU/h 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 44 mm 22.5 mm 44 mm — 44 mm
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
IP routing Yes — — Yes —
Jumbo frames 9000 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type Gigabit FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
Loop protection Yes — — Yes —
MAC address filtering — — — Yes Yes
MAC address table 16000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management Da nu nu Da —
Management protocols SNMPv1/v2c/v3, SNTP — — SNMPv1/v2c/v3, SNTP —
MIB support Yes — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 —
Montare in rack Da Nu Nu Nu Da
Multicast support Yes — — Yes Yes
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs 4000 — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth 528 mm 139 mm 528 mm — —
Package height 100 mm 85 mm — — —
Package type Box Box Box Box —
Package weight 6.77 kg 240 g 2.28 kg — —
Package width 440 mm 100 mm 250 mm — —
Packet buffer memory 12 MB 2 MB 2 MB 16 MB 12 MB
Password protection Yes — — — Yes
PoE Da Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 28+ 5-10 11-18 1-4 24-28
Porturi SFP 1-2 N/A N/A 5-8 3-4
Power connector AC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 485.4 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) Yes No No No No
Power source AC DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour Black White Black — —
Quality of Service (QoS) support Yes — — Yes Yes
Quick start guide Yes Yes — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Rate limiting Yes — — Yes —
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity 4 — — 8 4
Spanning tree protocol Yes — — Yes —
SSH/SSL support Yes — — Yes Yes
Stackable — No No — Yes
Static port security — — — Yes Yes
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 104 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Managed Unmanaged Unmanaged Managed Managed
System event log Yes — — Yes —
Virtual LAN features MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support Yes — — Yes Yes
Web-based management Yes — — Yes Yes
Width 440 mm 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificații tehnice 86 caracteristici
10G support
No
Access Control List (ACL)
Yes
Active link detection
Yes
ARP inspection
Yes
Authentication
MAC-based authentication, Port-based authentication
Basic switching RJ-45 Ethernet ports type
48
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Console port
RJ-45/micro-USB
Depth
330 mm
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Form factor
1U
Forwarding rate
77.4 Mpps
Garantie
60
GARP VLAN Registration Protocol (GVRP)
Yes
Harmonized System (HS) code
85176990
Head-of-line (HOL) blocking
Yes
Heat dissipation
1656.19 BTU/h
Height
44 mm
IGMP snooping
Yes
IP routing
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
16000 entries
Management
Da
Management protocols
SNMPv1/v2c/v3, SNTP
Manual
Yes
MIB support
Yes
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of fans
3 fan(s)
Number of static routes
48
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
528 mm
Package height
100 mm
Package type
Box
Package weight
6.77 kg
Package width
440 mm
Packet buffer memory
12 MB
Password protection
Yes
PoE
Da
Policy-based routing
Yes
Port mirroring
Yes
Porturi RJ 45
28+
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
485.4 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
48
Power source
AC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
Yes
Rate limiting
Yes
Reset button
Yes
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
104 Gbit/s
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
384 W
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Width
440 mm
Producator
TP-LINK
