Omada 16-Port Gigabit Switch PORT: 16× Gigabit RJ45 Ports SPEC:

Switchuri

Omada 16-Port Gigabit Switch PORT: 16× Gigabit RJ45 Ports SPEC:

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DS1016G

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 16-Port Gigabit Switch PORT: 16× Gigabit RJ45 Ports SPEC: Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 16 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control — — — Yes Yes
Cables included Power — AC AC AC
Cloud-managed — — — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 140 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Ethernet LAN data rates 10,100,1000 Mbit/s — 10,100 Mbit/s — —
Fanless Yes Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support — Yes Yes Yes —
Form factor 1U — 1U — —
Forwarding rate 23.8 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Garantie 36 36 36 60 24
Harmonized System (HS) code — 85176990 85176990 — —
Heat dissipation 36.31 BTU/h 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height — 22.5 mm 44 mm — 44 mm
Housing material Steel — Metal — —
IGMP snooping — — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames 10 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type FastEthernet FastEthernet FastEthernet 10Gigabit —
LED indicators — Yes Yes Yes Yes
Link aggregation — — — Yes Yes
Loop protection Yes — — Yes —
MAC address filtering — — — Yes Yes
MAC address table 8000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management nu nu nu Da —
Montare in rack Nu Nu Nu Nu Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — — 4000 4000
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth — 139 mm 528 mm — —
Package type — Box Box Box —
Package weight — 240 g 2.28 kg — —
Package width — 100 mm 250 mm — —
Packet buffer memory — 2 MB 2 MB 16 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring — — — Yes Yes
Porturi RJ 45 N/A 5-10 11-18 1-4 24-28
Porturi SFP N/A N/A N/A 5-8 3-4
Power connector AC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 10.68 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) No No No No No
Power source AC DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour — White Black — —
Quality of Service (QoS) support Yes — — Yes Yes
Quick start guide — Yes — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit Yes — Yes Yes Yes
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity — — — 8 4
SSH/SSL support — — — Yes Yes
Stackable — No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 32 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Unmanaged Unmanaged Unmanaged Managed Managed
Virtual LAN features — — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support — — — Yes Yes
Web-based management — — — Yes Yes
Width — 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

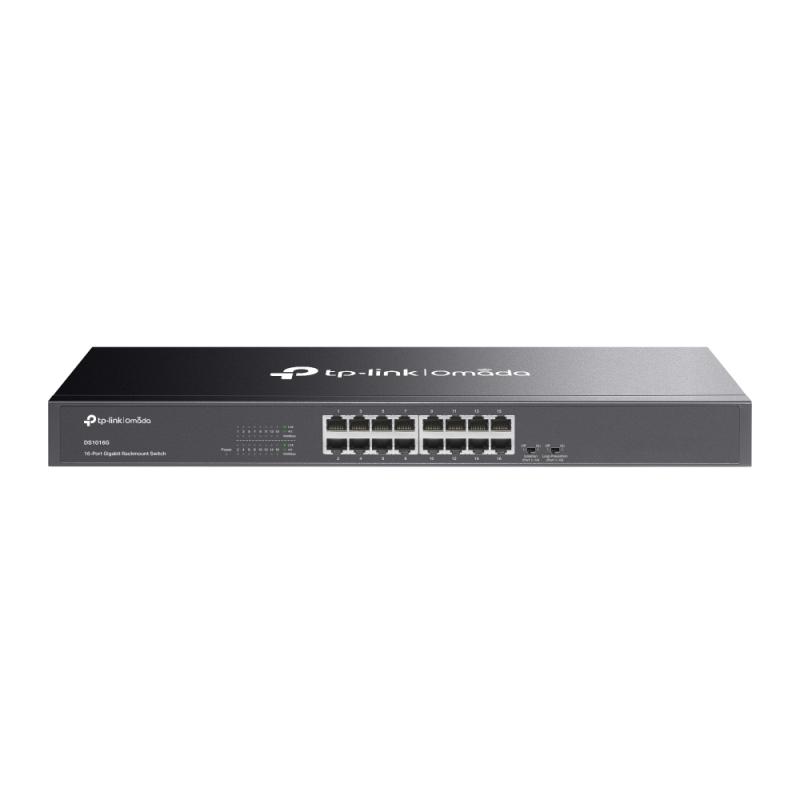

Omada 16-Port Gigabit Switch PORT: 16× Gigabit RJ45 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play

Specificații tehnice 42 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
16
Cables included
Power
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
140 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Fanless
Yes
Form factor
1U
Forwarding rate
23.8 Mpps
Garantie
36
Heat dissipation
36.31 BTU/h
Housing material
Steel
Jumbo frames
10
Jumbo frames support
Yes
LAN port type
FastEthernet
Loop protection
Yes
MAC address table
8000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
PoE
Nu
Porturi RJ 45
N/A
Porturi SFP
N/A
Power connector
AC-in jack
Power consumption (max)
10.68 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Rack mount kit
Yes
Reset button
Yes
Rubber feet
Yes
Storage relative humidity (H-H)
5 - 90%
Store-and-forward
Yes
Switching capacity
32 Gbit/s
Switch type
Unmanaged
Viteza transfer
Gigabit
Producator
TP-LINK
