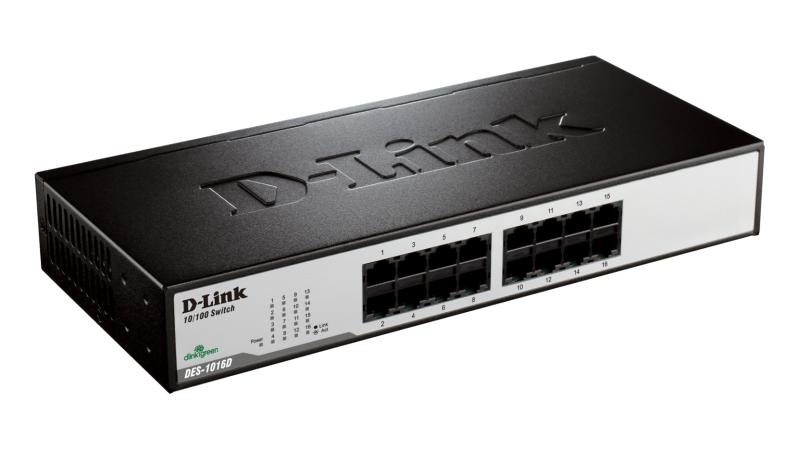

Switch D-Link DES-1016D, 16 porturi, 10/100 Mbps

Switchuri

Switch D-Link DES-1016D, 16 porturi, 10/100 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: DES-1016D

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch D-Link DES-1016D, 16 porturi, 10/100 Mbps Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support — No No No No
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 Hz
Auto-negotiation — Yes Yes — Yes
Auto MDI/MDI-X — Yes Yes Yes Yes
Basic switching RJ-45 Ethernet ports type 16 Fast Ethernet (10/100) Fast Ethernet (10/100) 48 Fast Ethernet (10/100)
Cable types supported — — Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Connectivity technology Wired — — Wired —
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 1000BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage — 5 V — — 53.5 V
Depth — 7.9 mm 180 mm 322 mm 98 mm
Dimensions (WxDxH) 324 x 231 x 44.5 mm — — 444 x 322 x 43.5 mm —
Fanless — Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support — Yes Yes Yes Yes
Form factor — — 1U 1U —
Forwarding rate — — 2.38 Mpps — 0.744 Mpps
Full duplex Yes Yes — — Yes
Garantie 24 36 36 24 60
Half duplex — Yes — — Yes
Harmonized System (HS) code 85176990 85176990 85176990 85176990 85176990
Heat dissipation — 6.99 BTU/h 7.03 BTU/h — 5.73 BTU/h
Height — 22.5 mm 44 mm 43.5 mm 25 mm
Input current — 0.6 A — — 1.31 A
Internal memory 2 MB — — 32 MB —
Jumbo frames support — — — Yes Yes
LAN port type FastEthernet FastEthernet FastEthernet Gigabit —
LED indicators Power Yes Yes Yes Yes
MAC address table 8000 entries 1000 entries 8000 entries 8000 entries 2000 entries
Management nu nu nu Da nu
Maximum data transfer rate 0.1 Gbit/s — — 1 Gbit/s —
Montare in rack Nu Nu Nu Da Nu
Networking standards — IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af, IEEE 802.3x
Operating relative humidity (H-H) 5 - 90% 10 - 90% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 376 mm 139 mm 528 mm — 196 mm
Package height 78 mm 85 mm — — 121 mm
Package type — Box Box — Box
Package weight 18.2 kg 240 g 2.28 kg — 760 g
Package width 282 mm 100 mm 250 mm — 131 mm
Packet buffer memory — 2 MB 2 MB 6 MB —
PoE Nu Nu Nu Nu Da
Porturi RJ 45 11-18 5-10 11-18 28+ 5-10
Porturi SFP N/A N/A N/A 1-2 N/A
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) — 2.2 W 2.23 W — 63.51 W
Power over Ethernet (PoE) No No No No Yes
Power source — DC AC — DC/PoE
Power supply included — No Yes — Yes
Product colour — White Black Grey Black
Rack mounting — No Yes Yes No
Stackable — No No No No
Storage relative humidity (H-H) — 5 - 95% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -25 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes — Yes
Sustainability compliance — Yes Yes — Yes
Switching capacity — 16 Gbit/s 32 Gbit/s — 1 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Managed Unmanaged
Viteza transfer Fast Ethernet Fast Ethernet Fast Ethernet Gigabit Fast Ethernet
Width — 134.5 mm 440 mm 444 mm 99.8 mm
Producator D-LINK TP-LINK TP-LINK ALLIED TELESIS TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
16x RJ-45
Porturi
16x RJ45
Viteza de transfer
10/100 Mbps
Compatibilitate
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
Putere consumata
6W

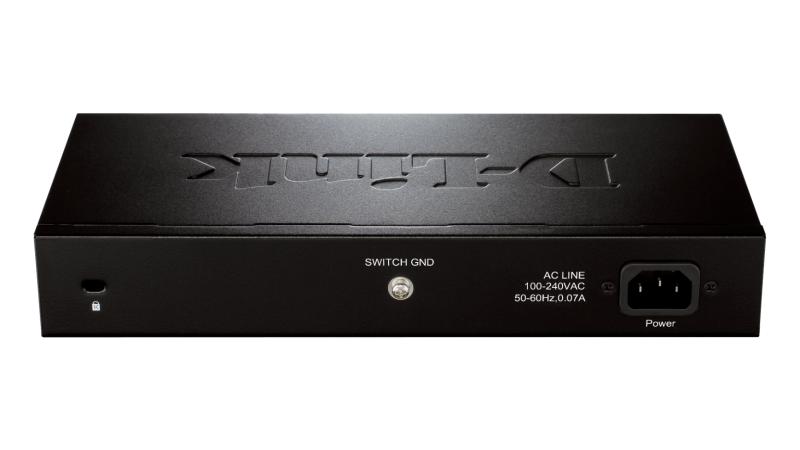

Alimentare
100 – 240 VAC, 50/60 Hz 0.3A
Dimensiuni
280 x 180 x 44 mm
Greutate
2.8Kg
Montare in rack
19 inch
Functii LED
Power
Link/Activity
Full-duplex/Collision
100Mbps speed
Altele
Auto Speed Sensing
Auto Negotiation (Full or Half Duplex)
Auto MDI/MDIX Crossover
Wire-speed Performance
Secure store-and-forward switching scheme
Per-port auto-correction
Specificații tehnice 42 caracteristici
Basic switching RJ-45 Ethernet ports type
16
Connectivity technology
Wired
Data transfer rate
100 Mbit/s
Dimensions (WxDxH)
324 x 231 x 44.5 mm
Full duplex
Yes
Garantie
24
Harmonized System (HS) code
85176990
Internal memory
2 MB
LAN port type
FastEthernet
LED indicators
Power
MAC address table
8000 entries
Management
nu
Master (outer) cases per pallet
24 pc(s)
Maximum data transfer rate
0.1 Gbit/s
Montare in rack
Nu
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Package depth
376 mm
Package height
78 mm
Package weight
18.2 kg
Package width
282 mm
Pallet gross length
120 cm
Pallet gross weight (air)
256.4 kg
Pallet gross weight (sea)
376.1 kg
Pallet gross width
110 cm
Pallet height (air)
137.9 cm
Pallet height (sea)
2.03 m
PoE
Nu
Porturi RJ 45
11-18
Porturi SFP
N/A
Power over Ethernet (PoE)
No
Products per pallet (air)
120 pc(s)
Products per pallet (sea)
180 pc(s)
Products per shipping (inner) case
5 pc(s)
Shipping (inner) case gross weight
9.97 kg
Shipping (inner) case height
31.1 cm
Shipping (inner) case length
42 cm
Shipping (inner) case net weight
9.11 kg
Shipping (inner) case width
39.2 cm
Switch type
Unmanaged
Viteza transfer
Fast Ethernet
Producator
D-LINK
