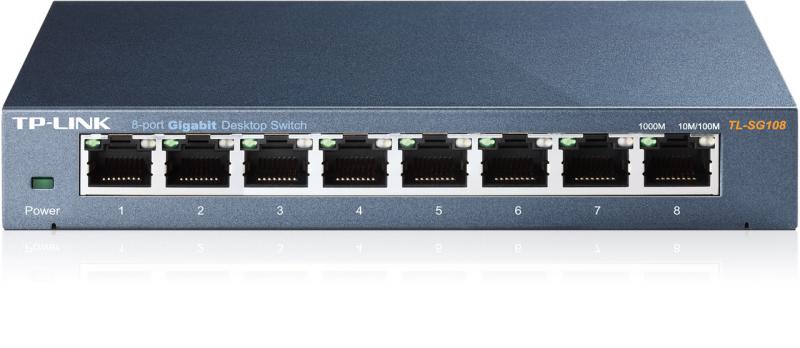

Switch TP-Link TL-SG108, 8 port, 10/100/1000 Mbps

Switchuri

Switch TP-Link TL-SG108, 8 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG108

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SG108, 8 port, 10/100/1000 Mbps Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency 50 Hz 50 - 60 Hz 50 - 60 Hz — —
AC input voltage 220 V — — 220 V —
ARP inspection — — — Yes Yes
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Bandwidth 16 Gbit/s — — — 64 Gbit/s
Basic switching RJ-45 Ethernet ports type 8 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control — — — Yes Yes
Cables included AC — AC AC AC
Cable types supported Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e — —
Cloud-managed — — — Yes Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 101 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Ethernet LAN data rates 10,100,1000 Mbit/s — 10,100 Mbit/s — —
Fanless — Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support Yes Yes Yes Yes —
Forwarding rate 11.9 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Full duplex Yes Yes — — —
Garantie 60 36 36 60 24
Gigabit Ethernet (copper) ports quantity 8 — — — 24
Harmonized System (HS) code 85176990 85176990 85176990 — —
Heat dissipation — 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 25 mm 22.5 mm 44 mm — 44 mm
IGMP snooping Yes — — Yes Yes
Input current 0.6 A 0.6 A — — —
IP-MAC-Port binding — — — Yes Yes
Jumbo frames 16000 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type Gigabit FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 4096 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management nu nu nu Da —
Montare in rack Nu Nu Nu Nu Da
Multicast support Yes — — Yes Yes
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth 191 mm 139 mm 528 mm — —
Package height 92 mm 85 mm — — —
Package type Box Box Box Box —
Package weight 510 g 240 g 2.28 kg — —
Package width 130 mm 100 mm 250 mm — —
Packet buffer memory 1.5 MB 2 MB 2 MB 16 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring — — — Yes Yes
Porturi RJ 45 5-10 5-10 11-18 1-4 24-28
Porturi SFP N/A N/A N/A 5-8 3-4
Power connector DC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 33 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) No No No No No
Power source DC DC AC AC AC
Power supply included Yes No Yes Yes Yes
Product colour Black White Black — —
Quality of Service (QoS) support Yes — — Yes Yes
Quick start guide Yes Yes — Yes —
Rack mounting No No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity — — — 8 4
SSH/SSL support — — — Yes Yes
Stackable — No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 16 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer L2 — — L2+/L3 L3
Switch type Unmanaged Unmanaged Unmanaged Managed Managed
Virtual LAN features — — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support — — — Yes Yes
Web-based management — — — Yes Yes
Width 158 mm 134.5 mm 440 mm — 440 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
8x RJ-45
Porturi
8x RJ45
Viteza de transfer
10/100/1000 Mbps
Alimentare
100-240VAC, 50/60Hz
Dimensiuni
158 x 101 x 25 mm
Functii LED
System/PWR, Link/Activity
Specificații tehnice 76 caracteristici
10G support
No
Access Control List (ACL) IPv4 entries
11
AC input frequency
50 Hz
AC input voltage
220 V
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Bandwidth
16 Gbit/s
Basic switching RJ-45 Ethernet ports type
8
Cables included
AC
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Connectivity technology
Wired
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
101 mm
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Forwarding rate
11.9 Mpps
Full duplex
Yes
Garantie
60
GARP VLAN Registration Protocol (GVRP)
Yes
Gigabit Ethernet (copper) ports quantity
8
Harmonized System (HS) code
85176990
Height
25 mm
IGMP snooping
Yes
Input current
0.6 A
Input voltage
9 V
Jumbo frames
16000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
4096 entries
Management
nu
Manual
Yes
Maximum data transfer rate
2 Gbit/s
Montare in rack
Nu
Multicast support
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
191 mm
Package height
92 mm
Package type
Box
Package weight
510 g
Package width
130 mm
Packet buffer memory
1.5 MB
Packet transfer speed
14880pps/148800pps/1488000pps
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
33 W
Power LED
Yes
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Supported data transfer rates
10/100/1000Mbps
Switching capacity
16 Gbit/s
Switching protocols
CSMA/CD
Switch layer
L2
Switch type
Unmanaged
User guide
Yes
Viteza transfer
Gigabit
Wall mountable
Yes
Wi-Fi
No
Width
158 mm
Producator
TP-LINK
