Switch Ubiquiti UniFi Aggregation USW-Aggregation, 8 port, 10/100/1000 Mbps

Switchuri

Switch Ubiquiti UniFi Aggregation USW-Aggregation, 8 port, 10/100/1000 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: USW-AGGREGATION

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Ubiquiti UniFi Aggregation USW-Aggregation, 8 port, 10/100/1000 Mbps Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
Alte caracteristici
10G support Yes — No Yes No
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz — 50 - 60 Hz
Authentication type — IEEE 802.1x, RADIUS — AAA, TACACS+ —
Auto MDI/MDI-X — Yes Yes — Yes
Basic switching RJ-45 Ethernet ports type No 24 Fast Ethernet (10/100) No 48
Broadcast storm control — — — Yes Yes
Cables included AC — AC AC —
Certification CE, FCC, IC CE, FCC, IC — — UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX — 1000BASE-T, 100BASE-TX
Depth 120 mm 200 mm 180 mm 180 mm 322 mm
DHCP features — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client
Fanless Yes — Yes — —
Flow control support — Yes Yes Yes Yes
Form factor 1U 1U 1U — 1U
Forwarding rate 119.04 Mpps 38.69 Mpps 2.38 Mpps 119.04 Mpps —
Garantie 24 24 36 60 24
Harmonized System (HS) code 85176990 85176990 85176990 — 85176990
Head-of-line (HOL) blocking — — — Yes Yes
Heat dissipation — — 7.03 BTU/h 52.75 BTU/h —
Height 43.7 mm 43.7 mm 44 mm — 43.5 mm
Housing material Galvanized steel — Metal — —
IGMP snooping — — — Yes Yes
Jumbo frames support — Yes — Yes Yes
LAN ports 8 24 — — 48
LAN port type Gigabit 10Gigabit FastEthernet 10Gigabit Gigabit
Layer Layer-2 Layer-2 — — Layer-2
LED indicators System Activity, Link, PoE, Speed, System Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table — — 8000 entries 32000 entries 8000 entries
Management Da Da nu Da Da
Management protocols — — — SNMPv1/v2c/v3, SNTP IGMP, SNMP, FTP
MIB support — — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 RFC 1213, RFC 1643, RFC 1493
Montare in rack Da Da Nu Nu Da
Multicast support — — — Yes Yes
Networking standards — IEEE 802.3af, IEEE 802.3at IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 5 - 90%
Operating temperature (T-T) — — 0 - 40 °C 0 - 45 °C 0 - 40 °C
Package type — — Box Box —
Packet buffer memory — — 2 MB 16 MB 6 MB
PoE Nu Da Nu Nu Nu
Port mirroring — Yes — Yes Yes
Porturi RJ 45 N/A 24-28 11-18 1-4 28+
Porturi SFP 5-8 1-2 N/A 5-8 1-2
Power connector — — DC-in jack DC-in jack DC-in jack
Power consumption (max) 30 W — 2.23 W 15.46 W —
Power over Ethernet (PoE) No Yes No No No
Power source — — AC AC —
Power supply included Yes Yes Yes Yes —
Product colour Silver Silver Black — Grey
Quality of Service (QoS) support — — — Yes Yes
Rackable Yes Yes — — Yes
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit Yes — Yes Yes —
Rate limiting — — — Yes Yes
Redundant PSU No No — — No
SFP module slots quantity 8 2 — 8 —
Spanning tree protocol — Yes — Yes Yes
Stackable No Yes No — No
Static port security — — — Yes Yes
Static route — Yes — Yes —
Storage relative humidity (H-H) — — 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) — — -40 - 70 °C -40 - 70 °C -25 - 70 °C
Switching capacity 160 Gbit/s 52 Gbit/s 32 Gbit/s 160 Gbit/s —
Switch layer L2 — — L2+/L3 L2
Switch type Managed Managed Unmanaged Managed Managed
Throughput 80 Gbit/s 26000 Mpps — — 14.88 Mpps
Viteza transfer 10G+ Gigabit Fast Ethernet 10G+ Gigabit
VLAN support — Yes — Yes Yes
Web-based management — — — Yes Yes
Weight 2.65 kg 3 kg — — 4.05 kg
Width 442.4 mm 442.4 mm 440 mm — 444 mm
Producator UBIQUITI UBIQUITI TP-LINK TP-LINK ALLIED TELESIS

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

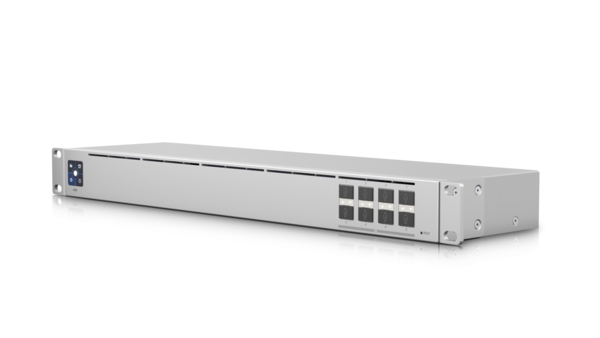

Ubiquiti UniFi Aggregation Switch, USW-Aggregation 8 X 10G SFP+, 160 Gbps switching capacity, 1.3″ Touchscreen with AR switch management, Fanless, 4.7″ depth compact enclosure, 1U Rackmountable (kit included), Managed by UniFi Network Controller, Enclosure Material; SGCC Steel, Forwarding Rate: 119.04 Mpps, SMB Layer 2 Gigabit Ethernet Switch.

Specificații tehnice 41 caracteristici
10G support
Yes
AC input frequency
50 - 60 Hz
Basic switching RJ-45 Ethernet ports type
No
Cables included
AC
Certification
CE, FCC, IC
Depth
120 mm
Fanless
Yes
Form factor
1U
Forwarding rate
119.04 Mpps
Garantie
24
Harmonized System (HS) code
85176990
Height
43.7 mm
Housing material
Galvanized steel
LAN ports
8
LAN port type
Gigabit
Layer
Layer-2
LED indicators
System
Management
Da
Montare in rack
Da
Operating relative humidity (H-H)
10 - 90%
PoE
Nu
Porturi RJ 45
N/A
Porturi SFP
5-8
Power consumption (max)
30 W
Power over Ethernet (PoE)
No
Power supply included
Yes
Product colour
Silver
Rackable
Yes
Rack mounting
Yes
Rack mount kit
Yes
Redundant PSU
No
SFP module slots quantity
8
Stackable
No
Switching capacity
160 Gbit/s
Switch layer
L2
Switch type
Managed
Throughput
80 Gbit/s
Viteza transfer
10G+
Weight
2.65 kg
Width
442.4 mm
Producator
UBIQUITI
