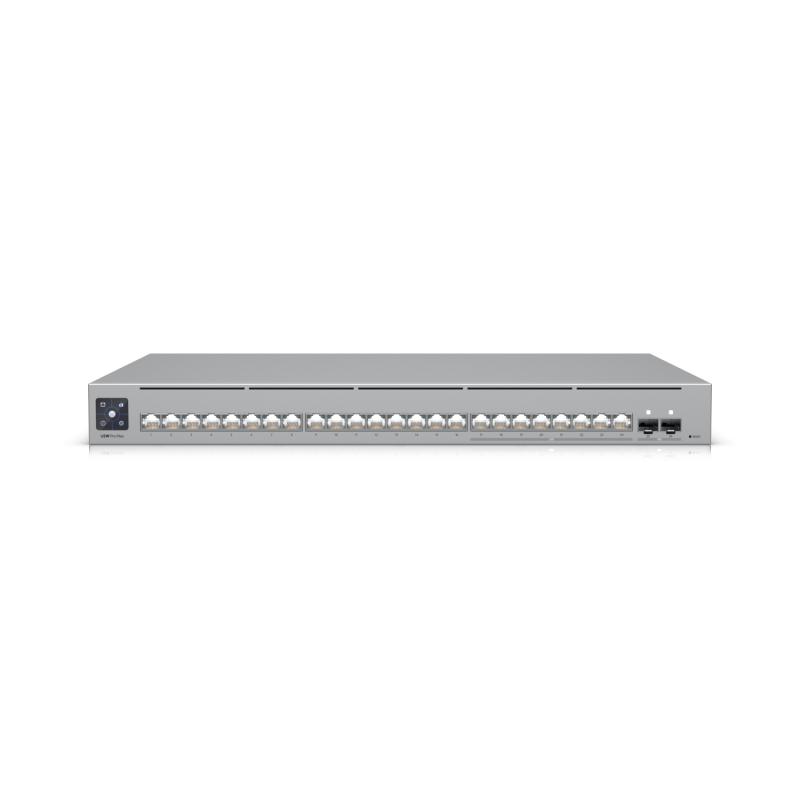

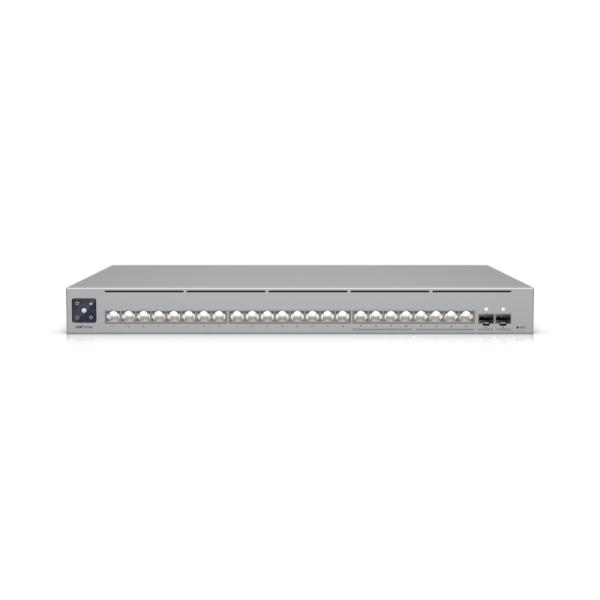

Ubiquiti Unifi Pro Max, Ethernet In-Band, (16) porturi GbE RJ45,

Switchuri

Ubiquiti Unifi Pro Max, Ethernet In-Band, (16) porturi GbE RJ45,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: USW-PRO-MAX-24

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Ubiquiti Unifi Pro Max, Ethernet In-Band, (16) porturi GbE RJ45, Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support Yes — Yes No Yes
Access Control List (ACL) — — Yes — Yes
AC input frequency — 50 - 60 Hz — 50 - 60 Hz —
ARP inspection — — Yes — Yes
Authentication type — IEEE 802.1x, RADIUS AAA, TACACS+ — —
Auto MDI/MDI-X — Yes — Yes —
Basic switching RJ-45 Ethernet ports type 24 24 No 48 24
Broadcast storm control Yes — Yes Yes Yes
Cables included Power — AC — AC
Certification — CE, FCC, IC — UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL —
Cloud-managed — — Yes — Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC) — — — CE, Federal Communications Commission (FCC), RoHS
Console port — — RJ-45/micro-USB RJ-45 RJ-45
Depth 325 mm 200 mm 180 mm 322 mm 180 mm
DHCP features DHCP relay, DHCP snooping — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client DHCP relay, DHCP server
Flash memory — — — 4 MB 512 MB
Flow control support Yes Yes Yes Yes —
Form factor 1U 1U — 1U —
Forwarding rate — 38.69 Mpps 119.04 Mpps — 95.23 Mpps
Garantie 24 24 60 24 24
Gigabit Ethernet (copper) ports quantity 16 — — — 24
Harmonized System (HS) code — 85176990 — 85176990 —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — — 52.75 BTU/h — 66.87 BTU/h
Height 43.7 mm 43.7 mm — 43.5 mm 44 mm
IGMP snooping Yes — Yes Yes Yes
Internal memory — — — 32 MB 2000 MB
IP-MAC-Port binding — — Yes — Yes
Jumbo frames — — 9000 — 9000
Jumbo frames support Yes Yes Yes Yes Yes
LAN ports 24 24 — 48 —
LAN port type Gigabit 10Gigabit 10Gigabit Gigabit —
Layer Layer-2 Layer-2 — Layer-2 —
LED indicators Link, Network, Speed, Status Activity, Link, PoE, Speed, System Yes Yes Yes
Link aggregation — — Yes Yes Yes
Loop protection Yes — Yes — —
MAC address filtering — — Yes Yes Yes
MAC address table — — 32000 entries 8000 entries 16000 entries
Management Da Da Da Da —
Management protocols — — SNMPv1/v2c/v3, SNTP IGMP, SNMP, FTP —
Mean time between failures (MTBF) — — — 263000 h 519.543 h
MIB support — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 RFC 1213, RFC 1643, RFC 1493 —
Montare in rack Da Da Nu Da Da
Multicast support — — Yes Yes Yes
Networking standards IEEE 802.1x IEEE 802.3af, IEEE 802.3at IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x — IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — 4000 — 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) — — 0 - 45 °C 0 - 40 °C -5 - 45 °C
Packet buffer memory — — 16 MB 6 MB 12 MB
PoE Nu Da Nu Nu —
Port mirroring Yes Yes Yes Yes Yes
Porturi RJ 45 11-18 24-28 1-4 28+ 24-28
Porturi SFP 1-2 1-2 5-8 1-2 3-4
Power connector AC/DC — DC-in jack DC-in jack —
Power consumption (max) 50 W — 15.46 W — 19.6 W
Power over Ethernet (PoE) No Yes No No No
Power source AC/DC — AC — AC
Power supply included Yes Yes Yes — Yes
Product colour — Silver — Grey —
Quality of Service (QoS) support — — Yes Yes Yes
Rackable Yes Yes — Yes —
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit Yes — Yes — Yes
Rate limiting Yes — Yes Yes —
Redundant PSU No No — No —
Security algorithms — — HTTPS, SSH, SSH-2, SSL/TLS — SNMP, SNMPv2, SNMPv3
SFP module slots quantity 2 2 8 — 4
Spanning tree protocol — Yes Yes Yes —
SSH/SSL support — — Yes — Yes
Stackable Yes Yes — No Yes
Static port security — — Yes Yes Yes
Static route Yes Yes Yes — —
Storage relative humidity (H-H) — — 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) — — -40 - 70 °C -25 - 70 °C -40 - 70 °C
Switching capacity 112 Gbit/s 52 Gbit/s 160 Gbit/s — 128 Gbit/s
Switch layer L3 — L2+/L3 L2 L3
Switch type — Managed Managed Managed Managed
Throughput 56 Gbit/s 26000 Mpps — 14.88 Mpps —
Virtual LAN features Voice VLAN — Private VLAN, Protocol-based VLAN, Voice VLAN — MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer 10G+ Gigabit 10G+ Gigabit Gigabit
VLAN support Yes Yes Yes Yes Yes
Web-based management — — Yes Yes Yes
Weight 4.3 kg 3 kg — 4.05 kg —
Width 442.4 mm 442.4 mm — 444 mm 440 mm
Producator UBIQUITI UBIQUITI TP-LINK ALLIED TELESIS TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Ubiquiti Unifi Pro Max, Ethernet In-Band, (16) porturi GbE RJ45, (8) porturi 1/2,5 GbE RJ45, (2) porturi 10G SFP+, 112 Gbps, sursa alimentare AC/DC, internă, 450W

Specificații tehnice 55 caracteristici
2.5G Ethernet (copper) ports quantity
8
10G support
Yes
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Cables included
Power
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Depth
325 mm
DHCP features
DHCP relay, DHCP snooping
Display type
LCM
Flow control support
Yes
Form factor
1U
Garantie
24
Gigabit Ethernet (copper) ports quantity
16
Height
43.7 mm
Housing material
SGCC
IGMP snooping
Yes
Jumbo frames support
Yes
LAN ports
24
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Link, Network, Speed, Status
Loop protection
Yes
Management
Da
Montare in rack
Da
Networking standards
IEEE 802.1x
Operating relative humidity (H-H)
10 - 90%
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
11-18
Porturi SFP
1-2
Power connector
AC/DC
Power consumption (max)
50 W
Power over Ethernet (PoE)
No
Power source
AC/DC
Power supply included
Yes
Rackable
Yes
Rack mounting
Yes
Rack mount kit
Yes
Rate limiting
Yes
Redundant power supply (RPS) support
Yes
Redundant PSU
No
Reset button
Yes
SFP module slots quantity
2
Stackable
Yes
Static route
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC)
Switching capacity
112 Gbit/s
Switch layer
L3
Throughput
56 Gbit/s
Virtual LAN features
Voice VLAN
Viteza transfer
10G+
VLAN support
Yes
Weight
4.3 kg
Width
442.4 mm
Producator
UBIQUITI
