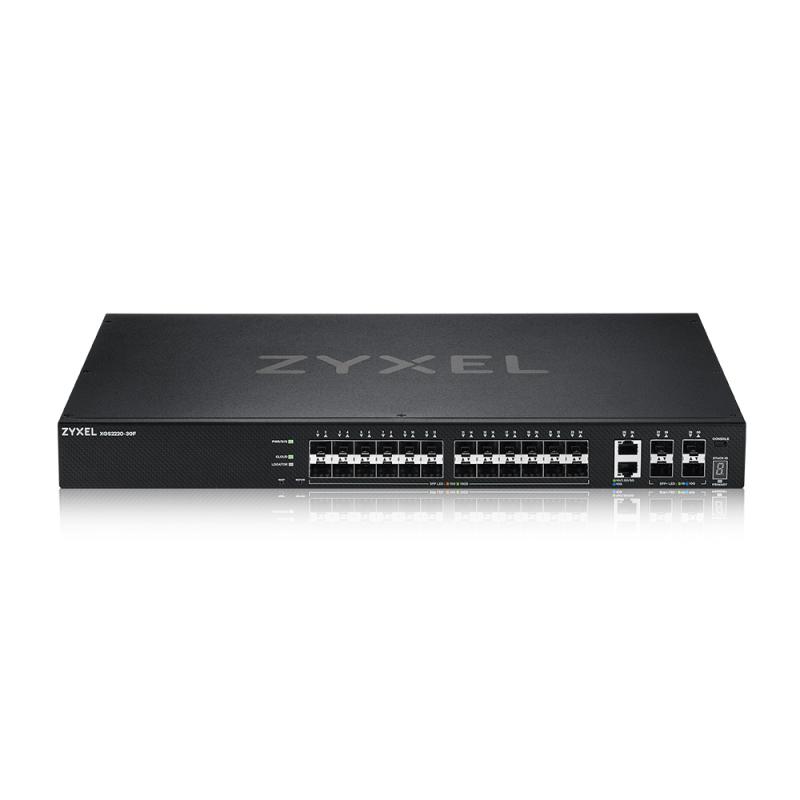

XGS2220-30F, L3 Access Switch, 24x1G SFP, 2x10mG RJ45, 4x10G SFP+

Switchuri

XGS2220-30F, L3 Access Switch, 24x1G SFP, 2x10mG RJ45, 4x10G SFP+

(0) Stoc Furnizor. Pentru validare stoc vă rugăm să ne contactați.
Vândut de RITC.ro Cod produs: XGS2220-30F-EU0101F

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică XGS2220-30F, L3 Access Switch, 24x1G SFP, 2x10mG RJ45, 4x10G SFP+ ZYXEL GS1100-24ES 24PORT GBE UNMG SWITCH Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
Alte caracteristici
10G support Yes — No Yes No
AC input frequency 50 - 60 Hz — 50 - 60 Hz — 50 - 60 Hz
ARP inspection Yes — — Yes —
Authentication type IEEE 802.1x, RADIUS, TACACS+ — — AAA, TACACS+ —
Auto MDI/MDI-X — — Yes — Yes
Basic switching RJ-45 Ethernet ports type No — Fast Ethernet (10/100) No 48
BPDU filtering/protection Yes — — Yes —
Broadcast storm control — — — Yes Yes
Cables included — — AC AC —
Cloud-managed Yes — — Yes —
Compliance certificates RoHS, Federal Communications Commission (FCC), Low Voltage Directive (LVD), CE — CE, Federal Communications Commission (FCC), RoHS — —
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX — 1000BASE-T, 100BASE-TX
Depth 270 mm — 180 mm 180 mm 322 mm
DHCP features DHCP relay, DHCP server — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client
Flash memory 64 MB — — — 4 MB
Flow control support — — Yes Yes Yes
Form factor — — 1U — 1U
Forwarding rate 125 Mpps 35.7 Mpps 2.38 Mpps 119.04 Mpps —
Garantie 60 60 36 60 24
Harmonized System (HS) code — — 85176990 — 85176990
Head-of-line (HOL) blocking — — — Yes Yes
Heat dissipation 225.06 BTU/h — 7.03 BTU/h 52.75 BTU/h —
Height 44 mm — 44 mm — 43.5 mm
IGMP snooping Yes — — Yes Yes
Internal memory 1024 MB — — — 32 MB
Jumbo frames support Yes — — Yes Yes
LAN ports — 24 — — 48
LAN port type Gigabit Gigabit FastEthernet 10Gigabit Gigabit
Layer — Unmanaged — — Layer-2
LED indicators Yes — Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 32000 entries — 8000 entries 32000 entries 8000 entries
Management Da Unmanaged nu Da Da
Management protocols — — — SNMPv1/v2c/v3, SNTP IGMP, SNMP, FTP
Mean time between failures (MTBF) 352.923 h — — — 263000 h
MIB support — — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 RFC 1213, RFC 1643, RFC 1493
Montare in rack Da Da Nu Nu Da
Multicast Listener Discovery (MLD) snooping MLD v1/v2 — — Y —
Multicast support Yes — — Yes Yes
Networking standards — — IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x —
Operating relative humidity (H-H) 10 - 95% — 10 - 90% 10 - 90% 5 - 90%
Operating temperature (T-T) -20 - 50 °C — 0 - 40 °C 0 - 45 °C 0 - 40 °C
Package depth 355 mm — 528 mm — —
Package type — — Box Box —
Package weight 4.83 kg — 2.28 kg — —
Package width 616 mm — 250 mm — —
Packet buffer memory 2 MB — 2 MB 16 MB 6 MB
PoE Nu No Nu Nu Nu
Port mirroring — — — Yes Yes
Porturi RJ 45 N/A 24 11-18 1-4 28+
Porturi SFP peste 9 1-2 N/A 5-8 1-2
Power connector — — DC-in jack DC-in jack DC-in jack
Power consumption (max) — — 2.23 W 15.46 W —
Power over Ethernet (PoE) No — No No No
Power source AC — AC AC —
Power supply included Yes — Yes Yes —
Product colour Black — Black — Grey
Quality of Service (QoS) support Yes — — Yes Yes
Rackable — Yes — — Yes
Rack mounting Yes — Yes Yes Yes
Rack mount kit — — Yes Yes —
Rate limiting — — — Yes Yes
Redundant PSU — No — — No
Security algorithms SNMP, SNMPv2, SNMPv3 — — HTTPS, SSH, SSH-2, SSL/TLS —
Spanning tree protocol — — — Yes Yes
Stackable — No No — No
Static port security — — — Yes Yes
Static route Yes — — Yes —
Storage relative humidity (H-H) 10 - 90% — 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C — -40 - 70 °C -40 - 70 °C -25 - 70 °C
Switching capacity 168 Gbit/s — 32 Gbit/s 160 Gbit/s —
Switch layer L3 — — L2+/L3 L2
Switch type Managed — Unmanaged Managed Managed
Viteza transfer 10G+ Gigabit Fast Ethernet 10G+ Gigabit
VLAN support — — — Yes Yes
Web-based management Yes — — Yes Yes
Weight 3.5 kg — — — 4.05 kg
Width 441 mm — 440 mm — 444 mm
Producator ZYXEL ZYXEL TP-LINK TP-LINK ALLIED TELESIS

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

XGS2220-30F, L3 Access Switch, 24x1G SFP, 2x10mG RJ45, 4x10G SFP+ Uplink, incl. 1 yr NebulaFlex Pro

Specificații tehnice 60 caracteristici
10G Ethernet (copper) ports quantity
2
10G support
Yes
AC input frequency
50 - 60 Hz
ARP inspection
Yes
Authentication type
IEEE 802.1x, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports type
No
BPDU filtering/protection
Yes
Cloud-managed
Yes
Compliance certificates
RoHS, Federal Communications Commission (FCC), Low Voltage Directive (LVD), CE
Depth
270 mm
DHCP features
DHCP relay, DHCP server
Flash memory
64 MB
Forwarding rate
125 Mpps
Garantie
60
GARP VLAN Registration Protocol (GVRP)
Yes
Heat dissipation
225.06 BTU/h
Height
44 mm
IGMP proxy
Yes
IGMP snooping
Yes
Installed SFP modules quantity
24
Internal memory
1024 MB
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
MAC address table
32000 entries
Management
Da
Mean time between failures (MTBF)
352.923 h
Montare in rack
Da
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Multicast support
Yes
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
-20 - 50 °C
Package depth
355 mm
Package height
107 mm
Package weight
4.83 kg
Package width
616 mm
Packet buffer memory
2 MB
PoE
Nu
Porturi RJ 45
N/A
Porturi SFP
peste 9
Power consumption (typical)
66 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Routing entries
64
Security algorithms
SNMP, SNMPv2, SNMPv3
Static route
Yes
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
168 Gbit/s
Switch layer
L3
Switch type
Managed
Viteza transfer
10G+
Web-based management
Yes
Weight
3.5 kg
Width
441 mm
Producator
ZYXEL
