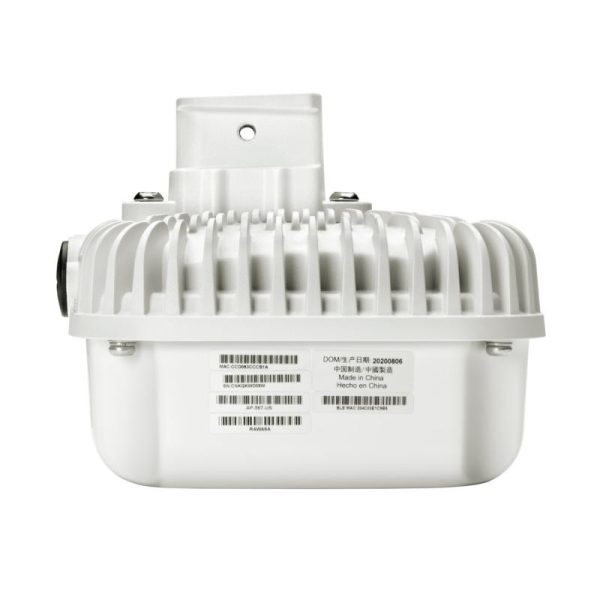

Access point HPE Aruba Networking AP-565, Gigabit, PoE, Dual-band, WiFi

Access point & Range Ext.

Access point HPE Aruba Networking AP-565, Gigabit, PoE, Dual-band, WiFi

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: R4W43A

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Access point HPE Aruba Networking AP-565, Gigabit, PoE, Dual-band, WiFi Access point TP-Link EAP115-WALL, Fast Ethernet, Poe, Single-Band Access point TP-Link EAP772, Poe, Triple-band, WiFi 7 - BE Access point TP-Link EAP725-Outdoor, Gigabit, PoE, Dual-band, Wi-Fi 7 Access point TP-Link EAP673, Gigabit, PoE, Dual-band, WiFi 6 -
Alte caracteristici
2.4 GHz — Yes Yes Yes Yes
5 GHz — No Yes Yes Yes
6 GHz — No Yes No No
Access Control List (ACL) — Yes Yes — —
Airtime Fairness (ATF) — — Yes — Yes
Antena — Interna Interna Interna & Externa Interna
Antenna gain level (max) — 18 dBi — 13.2 dBi —
Antennas quantity — 2 — 8 —
Antenna type — Internal Internal Internal & external Internal
Automatic channel selection — Yes — — Yes
Band steering — — — Yes Yes
BeamForming — — Yes Yes Yes
Cabling technology — 10/100Base-T(X) — 10/100/1000/2500Base-T —
Compatibil Mesh — Nu Da N/A Da
Compliance certificates — CE, RoHS — BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI —
Ethernet LAN (RJ-45) ports — 2 1 1 1
Frequency-Band — 2.4 - 2.4835 GHz — — 2.4 - 5 GHz
LED indicators — Yes Yes Status Yes
MAC address filtering — Yes Yes Yes —
Maximum data transfer rate — 300 Mbit/s 5760 Mbit/s 4324 Mbit/s 4804 Mbit/s
MIMO — — Yes — Yes
MIMO type — — Multi User MIMO — Multi User MIMO
Mounting kit — Yes Yes Yes Yes
Networking standards — IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n — IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Numar porturi — 1-3 1-3 1-3 1-3
Number of SSID supported — 8 24 16 —
Number of users — — 380 user(s) — 250 user(s)
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C -30 - 70 °C 0 - 40 °C
Placement — Wall Ceiling, Wall Pole, Wall Ceiling, Wall
PoE — — Da Yes —
Power over Ethernet (PoE) — Yes — Yes Yes
Power over Ethernet (PoE) type supported — Passive PoE — PoE+ —
Quality of Service (QoS) support — Yes Yes Yes Yes
Quantity per pack — — 1 pc(s) 1 pc(s) 1 pc(s)
Quick start guide — Yes — — Yes
Rate limiting — Yes — Yes Yes
Reset button — Yes — Yes Yes
Security algorithms — 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK — — SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
Service Set Identifier (SSID) features — Multiple SSIDs Multiple SSIDs Multiple SSIDs —
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Syslog — Yes — Yes Yes
Tehnologie WI-FI — N/A WiFi 7 - BE Wi-Fi 7 WiFi 6 - AX
Virtual LAN features — Port-based VLAN, VLAN mapping — Management VLAN VLAN mapping
Viteza Transport — Fast Ethernet N/A Gigabit Gigabit
VLAN support — Yes Yes Yes Yes
Web-based management — Yes Yes Yes Yes
Wi-Fi Multimedia (WMM)/(WME) — Yes — Yes —
Wireless isolation — Yes — Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime — 302 mm 220 mm 160 mm 220 mm
Lățime — 86.8 mm 220 mm 208 mm 220 mm
Înălțime — 86.8 mm 32.5 mm 55 mm 325 mm
Laptopuri - Conectivitate și porturi 25.09
Bluetooth — — Yes Yes —
Versiune Bluetooth — — 5.2 5.2 —
Viteză rețea LAN — 10,100 Mbit/s 2500 Mbit/s 10,100,1000,2500 Mbit/s 10,100,1000,2500 Mbit/s
Laptopuri - Construcție
Culoare — White White White White
Laptopuri - Generale
Garanție comercială 60 60 60 60 60
Producător ARUBA NETWORKS TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lifecycle

  • Obsolete Date 31-12-2099
  • End of support date 31-12-2104

Specifications

  • Max bandwidths and peak data rate per band 20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps
  • Ultra tri-band (UTB) filtering No
  • Wi-Fi generation Wi-Fi 6 (802.11ax)
  • Wi-Fi radios Dual 2×2
  • Wired network interface 1 x 1GbE
  • AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
  • AP operating system support HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0
  • Cellular support No
  • Deployment Outdoor
  • Integrated sensor No
  • IoT support IEEE 802.15.4/Zigbee or Bluetooth 5
  • Location services 802.11 FTM support
  • MACsec support No
  • Radio configuration options 2.4 GHz and 5 GHz
  • Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017—Railway Applications EN 50121-1:2017—Railway EMC EN 50121-3-2—Railway EMC EN 50121-4:2016—Railway Immunity IEC 61373 ed2:2008—Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative.
  • Certifications CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance® certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED® ac (with wave 2 features) Wi-Fi CERTIFIED Location
  • Warranty Limited lifetime warranty. See the warranty duration.
  • Shipping dimensions 6.5 X 6.5 X 5.1 in
  • Shipping dimensions 165 x 165 x 130 mm
  • Wi-Fi antenna Built-in omnidirectional antennas with 5.4 dBi gain maximum, for 5 GHz antennas and 3.2 dBi gain maximum for 2.4 GHz antennas
  • Ports E0: 10/100/1000BASE-T (RJ-45) USB-C console interface

Quickspecs

Overview

The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and virtual private networks (VPNs). AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 series outdoor APs include a limited lifetime warranty.

What’s new

  • Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps peak aggregate data rate and are ideal for outdoor and warehouse environments
  • Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +55˚C)
  • Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
  • Small form factor for flexible deployment.
  • Client and RF optimization to match clients with the best available access point and reduce coverage gaps
  • Dynamic segmentation and policy enforcement firewalls (PEFs) that automatically enforce consistent policies across all networks, keeping users and devices secure

Features

Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.

It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).

For enhanced device assurance, the access points include an installed trusted platform module (TPM).

HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.

Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +55˚C, including full solar loading.

With peak aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments

Entry-level Outdoor Wi-Fi 6
Simple Access With Enhanced Security

Target wake time (TWT) improves battery life of IoT devices.

The AP supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.

HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.

IoT Ready

The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.

It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.

The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
