KVM Aten USB HDMI, numar porturi 8, rezolutie video 1366
11.925,99 lei 18.482,99 lei
KVM Aten USB HDMI, numar porturi 8, rezolutie video 1366
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: CL3708INW-ATA-AG
Livrare și beneficii
Compară cu produse similare
KVM Aten USB HDMI, numar porturi 8, rezolutie video 1366
ATEN SN0108CO-AXA-G. Console port: RJ-45/Mini-USB. Dimensions (WxDxH): 329.8 x 437.2
12.065,99 lei
Switch KVM desktop ATEN CM1284. Tastatură de tip port: USB,
16.774,99 lei
ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de
28.969,99 lei
ATEN VM6809H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de
44.795,99 lei
Vezi comparația completă
| Caracteristică | KVM Aten USB HDMI, numar porturi 8, rezolutie video 1366 | ATEN SN0108CO-AXA-G. Console port: RJ-45/Mini-USB. Dimensions (WxDxH): 329.8 x 437.2 | Switch KVM desktop ATEN CM1284. Tastatură de tip port: USB, | ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de | ATEN VM6809H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 3D | — | — | — | Yes | Yes |
| AC input frequency | 50 - 60 Hz | — | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz |
| Built-in display | Yes | — | No | No | Yes |
| Cables included | — | — | HDMI, USB | AC | AC |
| Compliance certificates | — | — | RoHS | — | RoHS |
| Console ports | USB A, HDMI | — | 3.5mm headphone, HDMI, RJ–45, USB A | — | — |
| Console USB ports quantity | 2 | — | 2 | — | — |
| Country of origin | China | — | — | Taiwan | — |
| Data transfer rate | — | — | — | 6.75 Gbit/s | 10.2 Gbit/s |
| Depth | 480.6 mm | — | 164 mm | 432.4 mm | 432.4 mm |
| Ethernet LAN (RJ-45) ports | — | 2 | 2 | 1 | — |
| Extended display identification data (EDID) | — | — | — | Yes | Yes |
| Firmware upgradeable | — | — | Yes | Yes | — |
| Harmonized System (HS) code | 84718000 | — | 85176200 | — | 85299097 |
| HDCP | — | — | Yes | Yes | Yes |
| HDCP version | — | — | — | 1.4 | 2.2 |
| HDMI input ports quantity | — | — | — | 8 | 8 |
| HDMI output ports quantity | — | — | — | 9 | 8 |
| HD type | WUXGA | — | 4K Ultra HD | — | — |
| Height | 42.8 mm | — | 44 mm | 44 mm | 44 mm |
| Housing colour | — | — | — | Black | Black |
| Housing material | Metal, Plastic | — | Metal | Metal | Metal |
| Input current | 1 A | 1 A | 1 A | 1 A | 1 A |
| Input voltage | 100 - 240 V | — | 110 - 220 V | — | — |
| Interfata HDMI | Da | Nu | Da | Da | Da |
| Keyboard port type | USB | — | USB | — | — |
| KVM-Ports | 8 | 8 | 8 | 8 | 8 |
| KVM-Type | Analog | Analog | Analog | Analog | Analog |
| LED indicators | Yes | — | Yes | — | Yes |
| Manual | — | — | Yes | Yes | — |
| Master (outer) case gross weight | — | — | 13.8 kg | 7.04 kg | 8.64 kg |
| Master (outer) case height | — | — | 258 mm | 130 mm | 130 mm |
| Master (outer) case length | — | — | 555 mm | 575 mm | 575 mm |
| Master (outer) case net weight | — | — | 11.6 kg | 5.87 kg | 7.35 kg |
| Master (outer) case width | — | — | 420 mm | 506 mm | 559 mm |
| MAXIMUM-RESOLUTION | 1920 x 1200 pixels | — | 4096 x 2160 pixels | 1920 x 1080 pixels | 4096 x 2160 pixels |
| Maximum pixel clock | — | — | — | 225 MHz | 340 MHz |
| Mouse port type | USB | — | USB | — | — |
| Numar porturi HDMI | 5-10 | N/A | 5-10 | 5-10 | 5-10 |
| Numar porturi USB | peste 5 | 3-4 | 3-4 | N/A | N/A |
| Number of computers controlled | 8 | — | 4 | — | — |
| Operating relative humidity (H-H) | 0 - 80% | 0 - 80% | 0 - 80% | 0 - 80% | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 50 °C |
| Package depth | 449.2 mm | 575 mm | 540 mm | 575 mm | 575 mm |
| Package height | 42.8 mm | 130 mm | 233 mm | 130 mm | 130 mm |
| Package weight | — | 6.25 kg | 4.26 kg | 7.04 kg | 8.64 kg |
| Package width | 584 mm | 453 mm | 131 mm | 506 mm | 559 mm |
| Power consumption (max) | — | — | — | 58.1 W | 79.5 W |
| Power consumption (typical) | — | — | 16 W | 56.6 W | — |
| Power source | AC | — | AC | — | — |
| Products per master (outer) case | — | — | 3 pc(s) | — | 1 pc(s) |
| Product type | — | — | — | AV matrix switcher | Scaling matrix switcher |
| Push button | Yes | — | Yes | — | — |
| Rack capacity | 1U | — | 1U | 1U | 1U |
| Rack mounting | Yes | — | Yes | Yes | — |
| Rack mount kit | — | — | Yes | Yes | — |
| Rezolutie | 1366 x 768 | N/A | 4096 x 2160 | 1920 x 1080 | 4096 x 2160 |
| RS-232 ports | — | — | — | 1 | 1 |
| Scan interval | 1,255 s | — | 5,10,15,30,60,90 s | — | — |
| Storage relative humidity (H-H) | 0 - 80% | 0 - 80% | — | — | — |
| Storage temperature (T-T) | -20 - 60 °C | -20 - 60 °C | -10 - 60 °C | -20 - 60 °C | -20 - 60 °C |
| USB 2.0 Type-B ports quantity | 8 | — | 4 | — | — |
| USB connector type | USB Type-A, USB Type-B | — | USB Type-A, USB Type-B | — | — |
| Video bandwidth | 60 Hz | — | 30 Hz | — | — |
| Video port type | HDMI | — | HDMI | — | — |
| Width | 631 mm | — | 437.2 mm | 378.2 mm | 450.3 mm |
| Laptopuri - Conectivitate | |||||
| Rețea prin cablu (LAN) | Yes | — | Yes | — | — |
| Laptopuri - Construcție | |||||
| Culoare | Black | Black | Black | — | — |
| Greutate | 11 kg | 5.26 kg | 3.86 kg | 5.54 kg | 7.35 kg |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 24 | 24 | 24 | 24 |
| Producător | ATEN | ATEN | ATEN | ATEN | ATEN |
| Laptopuri - Porturi | |||||
| Porturi HDMI | 8 | — | 6 | — | — |
Analiză inteligentă a produsului
Descriere oficială

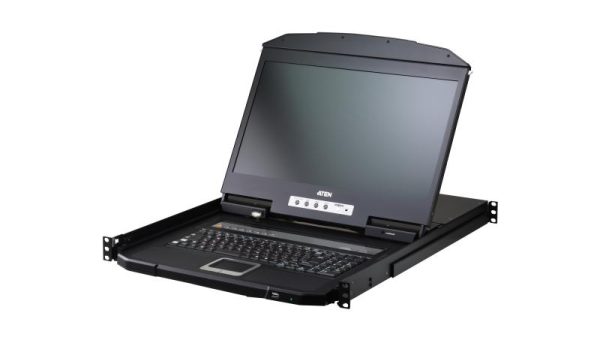

KVM Aten USB HDMI, numar porturi 8, rezolutie video 1366 x 768 @ 60 Hz, dimensiune ecran LED 18.5′, negru
Specificații tehnice 52 caracteristici ⌄
- AC-in ports quantity
- 1
- AC input frequency
- 50 - 60 Hz
- Built-in display
- Yes
- Console HDMI ports quantity
- 1
- Console ports
- USB A, HDMI
- Console RJ-45 ports quantity
- 1
- Console USB ports quantity
- 2
- Country of origin
- China
- Depth
- 480.6 mm
- Display
- LCD
- Harmonized System (HS) code
- 84718000
- HD type
- WUXGA
- Height
- 42.8 mm
- Housing material
- Metal, Plastic
- Input current
- 1 A
- Input voltage
- 100 - 240 V
- Interfata HDMI
- Da
- Keyboard port type
- USB
- KVM-Ports
- 8
- KVM-Type
- Analog
- LED indicators
- Yes
- MAXIMUM-RESOLUTION
- 1920 x 1200 pixels
- Mouse port type
- USB
- Numar porturi HDMI
- 5-10
- Numar porturi USB
- peste 5
- Number of computers controlled
- 8
- Operating relative humidity (H-H)
- 0 - 80%
- Operating temperature (T-T)
- 0 - 40 °C
- Package depth
- 449.2 mm
- Package height
- 42.8 mm
- Package width
- 584 mm
- Power source
- AC
- Push button
- Yes
- Quick installation guide
- Yes
- Rack capacity
- 1U
- Rack mounting
- Yes
- Rezolutie
- 1366 x 768
- Scan interval
- 1,255 s
- Storage relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- USB 2.0 Type-B ports quantity
- 8
- USB connector type
- USB Type-A, USB Type-B
- Video bandwidth
- 60 Hz
- Video port type
- HDMI
- Width
- 631 mm
- Rețea prin cablu (LAN)
- Yes
- Culoare
- Black
- Greutate
- 11 kg
- Diagonală ecran
- 47 cm (18.5)
- Garanție comercială
- 24
- Producător
- ATEN
- Porturi HDMI
- 8
