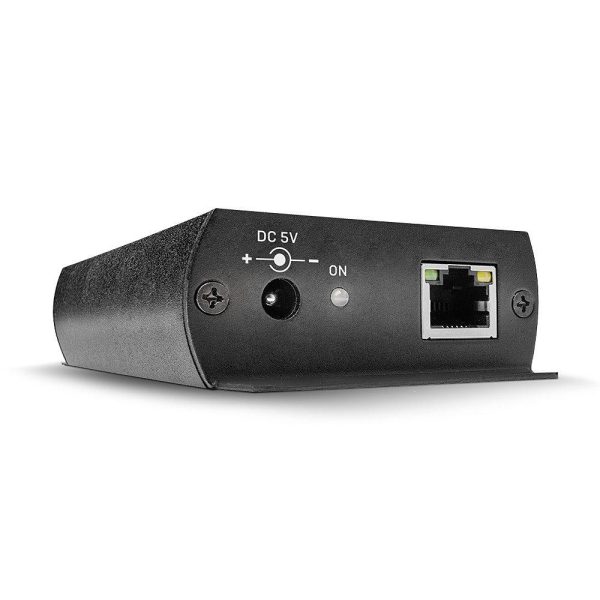

Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio &

Switchuri KVM

Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio &

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: LY-39245

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio & KVM-LCD Aten KL1508AIN-AXA-XG. Diagonala afișajului: 48,3 cm (19"), Ecran: LCD. ATEN KH1508AI-AX-G. Tastatură de tip port: USB, PS/2, Mouse tip Switch KVM Aten, Raft pentru montat echipamente 1U Negru, Număr KVM Switch Aten CS1316-AT-G. Tastatură de tip port: USB, PS/2,
Alte caracteristici
AC adapter included Yes — — Yes Yes
Built-in display — — No No No
Cables included Audio (3.5mm), RS-232, USB Type-A to USB Type-B — — DC, KVM KVM
Compliance certificates — RoHS — RoHS —
Console ports — — PS/2, USB A, VGA (D-Sub) USB A, VGA (D-Sub) VGA (D-Sub)
Console USB ports quantity — — 2 1 —
Daisy chain — Yes — Yes —
DDC2B support — — — Yes Yes
Depth — 701.2 mm 163.6 mm 159.6 mm 161.3 mm
Ethernet LAN (RJ-45) ports — — 8 1 —
Firmware upgradeable — — — Yes Yes
Harmonized System (HS) code 84733080 — 85176200 85176200 85176200
HD type — — WUXGA QXGA QXGA
Height — 44 mm 44 mm 44 mm 44 mm
Hot-Plug support — — — Yes Yes
Hot keys — Yes — Yes Yes
Housing material — — Metal Metal Metal
Input current — 1 A 1 A — —
Input voltage — — 100 - 240 V 5.3 V 5.3 V
Interfata HDMI Nu Nu Nu Nu Nu
Keyboard port type — USB, PS/2 USB, PS/2 USB, PS/2 USB, PS/2
KVM-Ports 4 8 8 8 8
KVM-Type — Analog Analog Analog Analog
LED indicators — Yes Yes Yes Yes
Linux operating systems supported — — — Yes Yes
Mac operating systems supported — — — Yes Yes
Manual Yes Yes Yes Yes Yes
Master (outer) case gross weight — 19.2 kg 11.4 kg 12.6 kg 9.27 kg
Master (outer) case height — 135 mm 258 mm 258 mm 258 mm
Master (outer) case length — 833 mm 565 mm 565 mm 565 mm
Master (outer) case net weight — 15.6 kg 9.54 kg 10.8 kg 7.5 kg
Master (outer) case width — 668 mm 420 mm 375 mm 375 mm
MAXIMUM-RESOLUTION 1920 x 1200 pixels 1920 x 1200 pixels 1920 x 1200 pixels 2048 x 1536 pixels 2048 x 1536 pixels
Mouse port type — USB, PS/2 USB, PS/2 USB, PS/2 USB, PS/2
Numar porturi HDMI N/A N/A N/A N/A N/A
Numar porturi USB 3-4 1-2 1-2 1-2 peste 5
Number of computers controlled — 8 8 256 256
On Screen Display (OSD) — Yes — Yes Yes
Operating relative humidity (H-H) 0 - 95% 0 - 80% 0 - 80% 0 - 80% 0 - 80%
Operating temperature (T-T) -20 - 60 °C 0 - 40 °C 0 - 40 °C 0 - 50 °C 0 - 50 °C
Package depth 195 mm 833 mm 540 mm 540 mm 540 mm
Package height 60 mm 135 mm 233 mm 233 mm 233 mm
Package weight 15.2 kg 18.9 kg 3.58 kg 3.98 kg 2.87 kg
Package width 355 mm 668 mm 131 mm 116 mm 116 mm
Power consumption (typical) — 27.5 W 8.7 W 11 W 6.5 W
Power source — — AC DC DC
Products per master (outer) case — 1 pc(s) 3 pc(s) 3 pc(s) 3 pc(s)
Push button — Yes — Yes Yes
Quick installation guide — Yes Yes Yes Yes
Rack capacity — 1U — 1U 1U
Rack mounting — Yes — Yes Yes
Rezolutie 1920 x 1200 1920 x 1200 1920 x 1200 2048 x 1536 2048 x 1536
Scan interval — — 1,255 s 1,255 s 1,255 s
Storage temperature (T-T) -20 - 85 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C
VGA (D-Sub) ports quantity — 1 — 16 —
Video bandwidth — — 60 Hz 60 Hz —
Video port type — VGA VGA VGA VGA
Width — 480 mm 437.2 mm 437.2 mm 437.2 mm
Windows operating systems supported — Yes — Yes Yes
Laptopuri - Conectivitate
Rețea prin cablu (LAN) — — Yes Yes —
Laptopuri - Construcție
Culoare Black Black Black Black Black
Greutate 1.27 kg 15.6 kg 3.18 kg 3.59 kg 2.5 kg
Laptopuri - Generale
Garanție comercială 24 24 24 24 24
Producător LINDY ATEN ATEN ATEN ATEN

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lindy 140m Cat.6 DVI-D, USB, Audio & RS232 KVM Extender Description Extends DVI-D, USB 2.0, Audio and RS-232 up to 140m using only one Cat.6 cable Supports DVI Single Link resolutions up to 1920×1200 4 USB 2.0 Type A ports to connect keyboard, mouse and mass storage devices Easy, user friendly installation – no software required Technical details Specifications AV Interface: DVI-D Console Interface: USB Interfaces Standard: DVI-D Single Link, USB 2.0 Supported Bandwidth: 850Mbps Maximum Distance: 140m (459.31ft) Maximum Resolution: 1920×1200@60Hz HDCP Support: 1.4 Supported Audio: Analogue Stereo & Mono Separate Audio Ports: 2 x 3.5mm (Female) Transmission Protocol: – Transmission Medium: Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Special Features: EDID management, point-to-point and LAN connection and RS-232 signal extension Connectors Transmitter KVM Interfaces: DVI-I in (Female), DVI-I loopout (Female), USB Type B (Female), 2 x 3.5mm (Female) Transmitter Extension Port: 1x RJ-45 (Female) Receiver Console Interface: DVI-I (Female), 4 x USB Type A (Female), 2 x 3.5mm (Female) Receiver Extension Port: 1 x RJ-45 (Female) Bi-directional Ports: 3.5mm RS-232 (Female) Other Interfaces: – Power: 5.5/2.5mm DC socket Physical Properties Dimensions (approx.) WxDxH: 125x140x30mm (4.92×5.51×1.18in) (each unit) Housing Material: Metal Net Weight: 1.27kg (2.8lb) Operating Temperature: -20°C – 60°C (-4°F – 140°F) Storage Temperature: -20°C – 85°C (-4°F – 185°F) Humidity: 0 – 95% RH (non-condensing) Power Requirements: 5VDC 2.6A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 355x195x60mm (13.98×7.68×2.36in) Gross Weight: 1.52kg (3.35lb) Warranty (Years): 2 Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Content Transmitter unit Receiver unit 1 x USB Type A/B cable, 1.45m 1 x 3.5mm to RS232 DB9 Male cable, 1.80m 1 x 3.5mm to RS232 DB9 Female cable, 1.80m 2 x Multi-Country Power Supply (EU, UK, US, AUS) 8 x Screws and Dowels Lindy Manual Purchasing Information No.: 39245 EAN: 4002888392457 https://www.lindy-international.com/140m-Cat-6-DVI-D-USB-Audio-RS232- KVM-Extender.htm?websale8=ld0101.ld021102&pi=39245&ci=10

Specificații tehnice 43 caracteristici
AC adapter included
Yes
Cables included
Audio (3.5mm), RS-232, USB Type-A to USB Type-B
Cable types supported
Cat6
Certification
CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Connectivity technology
Wired
Harmonized System (HS) code
84733080
Interfata HDMI
Nu
KVM-Ports
4
Manual
Yes
Material
Metal
MAXIMUM-RESOLUTION
1920 x 1200 pixels
Maximum transfer distance
140 m
Numar porturi HDMI
N/A
Numar porturi USB
3-4
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-20 - 60 °C
Package depth
195 mm
Package height
60 mm
Package weight
15.2 kg
Package width
355 mm
PC Audio in
Yes
Power requirements
5VDC 2.6A
Receiver depth
14 cm
Receiver height
3 cm
Receiver local video port type
DVI-I
Receiver width
12.5 cm
Rezolutie
1920 x 1200
RJ-45 ports quantity
2
RJ-45 ports quantity (receiver)
1
RJ-45 ports quantity (transmitter)
1
Screwdriver included
Yes
Storage temperature (T-T)
-20 - 85 °C
Transmitter depth
14 cm
Transmitter height
3 cm
Transmitter video port type
DVI-I
Transmitter width
12.5 cm
USB port type
USB Type-A/USB Type-B
Culoare
Black
Greutate
1.27 kg
Rată maximă de reîmprospătare
60 Hz
Garanție comercială
24
Producător
LINDY
Număr porturi USB 2.0
4
