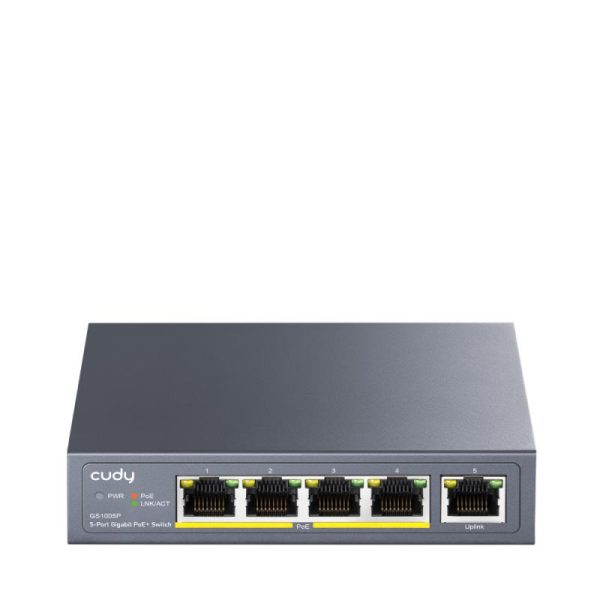

CUDY 5-Port 10/100/1000M PoE+ Switch 60W, 5 10/100/1000M ports with

Switchuri

CUDY 5-Port 10/100/1000M PoE+ Switch 60W, 5 10/100/1000M ports with

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: GS1005P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică CUDY 5-Port 10/100/1000M PoE+ Switch 60W, 5 10/100/1000M ports with Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support — No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 5 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included AC, DC AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support Yes Yes Yes Yes —
Forwarding rate — 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports 5 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer Layer-2 Unmanaged Layer-2 Layer-2 —
LED indicators Activity, Link, PoE, Power Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 2000 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management nu nu Da Da nu
Montare in rack Da Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 0 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package type Box Box — — —
Packet buffer memory — — 12 MB 16 MB —
PoE Nu Nu Da Da Da
Port mirroring — — Yes Yes No
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) Yes No Yes Yes Yes
Power over Ethernet (PoE) power per port 30 W — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity 1 — 48 16 —
Power source AC/DC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support — Yes Yes Yes No
Quick start guide — — Yes Yes —
Rackable No No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit Yes Yes — Yes —
Rate limiting — — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU No Yes No Yes —
Reset button — — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes —
Switching capacity 10 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type — Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes No
Total Power over Ethernet (PoE) budget 60 W — 500 W 500 W 60 W
User guide Yes Yes — — —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Gigabit
VLAN support — — Yes Yes —
Web-based management — — Yes Yes No
Laptopuri - Caracteristici fizice 25.09
Adâncime 85 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 119 mm 294 mm — — 192 mm
Material carcasă Metal — — — Metal
Înălțime 28 mm 44 mm — — 27 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Grey Grey — — Black
Laptopuri - Generale
Garanție comercială 24 60 60 24 60
Producător CUDY TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

CUDY 5-Port 10/100/1000M PoE+ Switch 60W, 5 10/100/1000M ports with 4POE+ Ports Unmanaged Switch with UL power adapter IEEE802.3af / IEEE802.3at, Watchdog, 60W External

Specificații tehnice 49 caracteristici
Basic switching RJ-45 Ethernet ports type
5
Cables included
AC, DC
DC input voltage
48 - 57 V
Fanless
Yes
Flow control support
Yes
LAN ports
5
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Activity, Link, PoE, Power
MAC address table
2000 entries
Management
nu
Montare in rack
Da
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 40 °C
Package type
Box
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Plug and Play
Yes
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (typical)
5 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
1
Power source
AC/DC
Power supply included
Yes
Rackable
No
Rack mounting
Yes
Rack mount kit
Yes
Redundant PSU
No
Stackable
No
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
10 Gbit/s
Total Power over Ethernet (PoE) budget
60 W
Uplink ports quantity
1
User guide
Yes
Viteza transfer
Gigabit
Adâncime
85 mm
Lățime
119 mm
Material carcasă
Metal
Înălțime
28 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
Grey
Garanție comercială
24
Producător
CUDY
