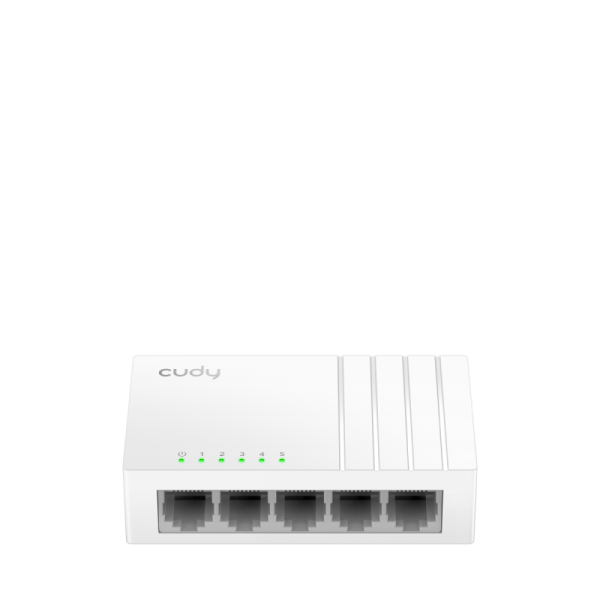

CUDY 5-Port Gigabit Desktop Switch, 5 10/100/1000M RJ45 Ports, IGMP
32,98 lei 66,99 lei
CUDY 5-Port Gigabit Desktop Switch, 5 10/100/1000M RJ45 Ports, IGMP
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: GS105U
Livrare și beneficii
Compară cu produse similare
CUDY 5-Port Gigabit Desktop Switch, 5 10/100/1000M RJ45 Ports, IGMP
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
701,99 lei
Vezi comparația completă
| Caracteristică | CUDY 5-Port Gigabit Desktop Switch, 5 10/100/1000M RJ45 Ports, IGMP | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Extralink KRATOS PoE Switch 7x Gigabit PoE 1x |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | No | Yes | Yes | No |
| Access Control List (ACL) | — | — | Yes | Yes | — |
| AC input frequency | — | 50 - 60 Hz | — | — | 50 - 60 Hz |
| ARP inspection | — | — | Yes | Yes | — |
| Authentication | — | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — |
| Auto-negotiation | — | Yes | — | — | Yes |
| Basic switching RJ-45 Ethernet ports type | 5 | 24 | 48 | 24 | 8 |
| BPDU filtering/protection | — | — | Yes | Yes | — |
| Broadcast storm control | — | — | Yes | Yes | — |
| Cables included | USB Type-A to USB Type-C | AC | AC | AC | — |
| Cable types supported | — | Cat3, Cat4, Cat5, Cat5e | — | — | Cat5, Cat5e, Cat6 |
| Cloud-managed | — | — | Yes | Yes | No |
| Configuring Location Settings (CLI) | — | — | Yes | Yes | No |
| Console port | — | — | RJ-45/micro-USB | RJ-45/micro-USB | — |
| DHCP features | — | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — |
| Flow control support | — | Yes | Yes | Yes | — |
| Forwarding rate | 7.44 Mpps | 35.7 Mpps | 130.9 Mpps | 148.8 Mpps | — |
| Full duplex | — | Yes | — | Yes | — |
| Head-of-line (HOL) blocking | — | — | Yes | Yes | — |
| Heat dissipation | — | 44.63 BTU/h | 2169.2 BTU/h | 2153.45 BTU/h | — |
| IGMP snooping | — | — | Yes | Yes | — |
| Input current | 0.55 A | — | — | — | 2.5 A |
| IP-MAC-Port binding | — | — | Yes | Yes | — |
| Jumbo frames | — | 10000 | 9000 | 9000 | — |
| Jumbo frames support | Yes | Yes | Yes | Yes | — |
| LAN ports | 5 | 24 | 48 | 24 | — |
| LAN port type | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Layer | Layer-2 | Unmanaged | Layer-2 | Layer-2 | — |
| LED indicators | — | Yes | Yes | Yes | Yes |
| Link aggregation | — | — | Yes | Yes | — |
| MAC address table | 2048 entries | 8000 entries | 16000 entries | 32000 entries | 4096 entries |
| Management | nu | nu | Da | Da | nu |
| Montare in rack | Nu | Nu | Da | Da | Nu |
| Multicast support | — | — | Yes | Yes | — |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | — | — | IEEE 802.3af |
| Number of fans | — | — | 3 fan(s) | 3 fan(s) | — |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 80% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Packet buffer memory | 3 MB | — | 12 MB | 16 MB | — |
| PoE | Nu | Nu | Da | Da | Da |
| Port mirroring | — | — | Yes | Yes | No |
| Porturi RJ 45 | 5 10/100/1000M RJ45 Ports | 24-28 | 28+ | 24-28 | 5-10 |
| Porturi SFP | N/A | N/A | 1-2 | 1-2 | N/A |
| Power connector | — | DC-in jack | AC-in jack | — | DC-in jack |
| Power consumption (max) | 2 W | 13.08 W | 635.7 W | 629.1 W | — |
| Power over Ethernet (PoE) | No | No | Yes | Yes | Yes |
| Power over Ethernet (PoE) power per port | — | — | 30 W | — | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | — | — | 48 | 16 | — |
| Power source | USB | AC | AC | AC/PoE | AC |
| Power supply included | Yes | Yes | Yes | Yes | Yes |
| Quality of Service (QoS) support | — | Yes | Yes | Yes | No |
| Quick start guide | Yes | — | Yes | Yes | — |
| Rackable | No | No | Yes | Yes | — |
| Rack mounting | No | Yes | Yes | Yes | No |
| Rack mount kit | — | Yes | — | Yes | — |
| Rate limiting | — | — | Yes | Yes | — |
| Redundant fans support | — | — | — | Yes | No |
| Redundant PSU | No | Yes | No | Yes | — |
| Reset button | — | — | Yes | — | Yes |
| SFP module slots quantity | — | — | 4 | 4 | — |
| Spanning tree protocol | — | — | Yes | Yes | — |
| SSH/SSL support | — | — | Yes | Yes | — |
| Stackable | No | Yes | No | No | No |
| Static port security | — | — | Yes | Yes | — |
| Storage relative humidity (H-H) | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | — | Yes | Yes | Yes | — |
| Switching capacity | 10 Gbit/s | 48 Gbit/s | 176 Gbit/s | 200 Gbit/s | 16 Gbit/s |
| Switch type | Unmanaged | Unmanaged | Managed | Managed | Unmanaged |
| System event log | — | — | Yes | Yes | No |
| Total Power over Ethernet (PoE) budget | — | — | 500 W | 500 W | 60 W |
| Viteza transfer | Gigabit | Gigabit | 10G+ | 2.5G | Gigabit |
| VLAN support | — | — | Yes | Yes | — |
| Web-based management | — | — | Yes | Yes | No |
| Caracteristici fizice | |||||
| Greutate | 53 g | — | — | — | 500 g |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 52.5 mm | 180 mm | 330 mm | 330 mm | 8.2 mm |
| Lățime | 88 mm | 294 mm | — | — | 192 mm |
| Material carcasă | Plastic | — | — | — | Metal |
| Înălțime | 24 mm | 44 mm | — | — | 27 mm |
| Laptopuri - Construcție | |||||
| Culoare | White | Grey | — | — | Black |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 60 | 60 | 24 | 60 |
| Producător | CUDY | TP-LINK | TP-LINK | TP-LINK | EXTRALINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | — | — | 1U | 1U | 1U |
Analiză inteligentă a produsului
Descriere oficială
CUDY 5-Port Gigabit Desktop Switch, 5 10/100/1000M RJ45 Ports, IGMP Snooping, Loop Detection/Prevention, 802.1p/DSCP QoS, Desktop Plastic Case, Power Saving, Plug & Play, Wall-Mount, USB-C Powering(Adapter not included)
Specificații tehnice 44 caracteristici ⌄
- 10G support
- No
- Basic switching RJ-45 Ethernet ports type
- 5
- Cables included
- USB Type-A to USB Type-C
- DC input voltage
- 5 V
- Forwarding rate
- 7.44 Mpps
- Input current
- 0.55 A
- Jumbo frames support
- Yes
- LAN ports
- 5
- LAN port type
- Gigabit
- Layer
- Layer-2
- MAC address table
- 2048 entries
- Management
- nu
- Montare in rack
- Nu
- Networking standards
- IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Packet buffer memory
- 3 MB
- PoE
- Nu
- Porturi RJ 45
- 5 10/100/1000M RJ45 Ports
- Porturi SFP
- N/A
- Power consumption (max)
- 2 W
- Power over Ethernet (PoE)
- No
- Power source
- USB
- Power supply included
- Yes
- Quick start guide
- Yes
- Rackable
- No
- Rack mounting
- No
- Redundant PSU
- No
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Switching capacity
- 10 Gbit/s
- Switch type
- Unmanaged
- Viteza transfer
- Gigabit
- Wall mountable
- Yes
- Greutate
- 53 g
- Adâncime
- 52.5 mm
- Lățime
- 88 mm
- Material carcasă
- Plastic
- Înălțime
- 24 mm
- Culoare
- White
- Garanție comercială
- 24
- Producător
- CUDY
- Număr porturi USB-C
- 1
