CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100M Uplink

Switchuri

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100M Uplink

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: FS1010P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100M Uplink Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support — No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency 50 - 60 Hz 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation — Yes — — Yes
Bandwidth 2 Gbit/s 48 Gbit/s — — —
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included AC AC AC AC —
Cable types supported Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support Yes Yes Yes Yes —
Forwarding rate 1.48 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes —
Half duplex Yes — — Yes —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 1528 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 5 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer Layer-2 Unmanaged Layer-2 Layer-2 —
LED indicators Activity, Link, PoE, Power Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management nu nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package type Box Box — — —
Packet buffer memory 0.25 MB — 12 MB 16 MB —
PoE Nu Nu Da Da Da
Port mirroring — — Yes Yes No
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector AC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) Yes No Yes Yes Yes
Power over Ethernet (PoE) power per port 30 W — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity 2 — 48 16 —
Power source AC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support — Yes Yes Yes No
Quick start guide Yes — Yes Yes —
Rackable No No Yes Yes —
Rack mounting — Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU No Yes No Yes —
Reset button — — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Switching capacity — 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type — Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes No
Total Power over Ethernet (PoE) budget 120 W — 500 W 500 W 60 W
Viteza transfer Fast Ethernet Gigabit 10G+ 2.5G Gigabit
VLAN support Yes — Yes Yes —
Web-based management — — Yes Yes No
Laptopuri - Caracteristici fizice 25.09
Adâncime 150 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 220 mm 294 mm — — 192 mm
Material carcasă Metal — — — Metal
Înălțime 44 mm 44 mm — — 27 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Black Grey — — Black
Laptopuri - Generale
Garanție comercială 24 60 60 24 60
Producător CUDY TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

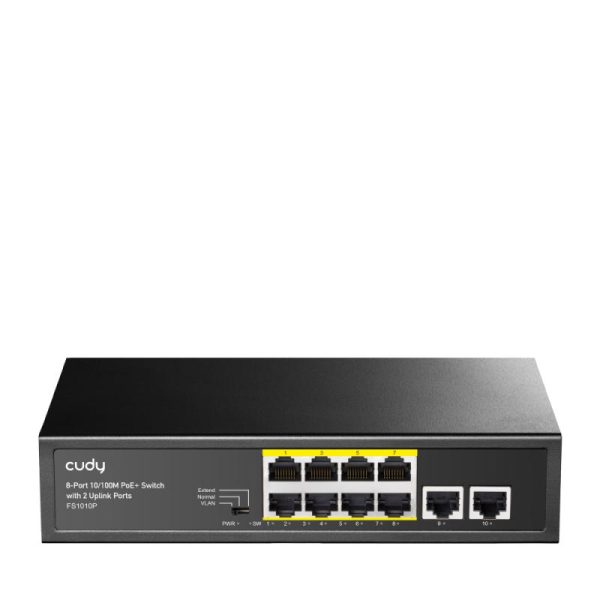

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100M Uplink Port Unmanaged PoE+ Switch, CCTV/VLAN/Watchdog ON/OFF Switch(New version), long distance:250M at CCTV mode. 802.3af/at standard, Support PD Alive Function, ±4 KV Surge Protection, Alternative 1/2(+),3/6(-),Steel Case, 120W Internal Power Supply

Specificații tehnice 58 caracteristici
AC input frequency
50 - 60 Hz
Bandwidth
2 Gbit/s
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cables included
AC
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Fanless
Yes
Flow control support
Yes
Forwarding rate
1.48 Mpps
Full duplex
Yes
Half duplex
Yes
Jumbo frames
1528
Jumbo frames support
Yes
LAN ports
5
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Activity, Link, PoE, Power
MAC address table
8000 entries
Management
nu
Mean time between failures (MTBF)
50000 h
Montare in rack
Nu
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package type
Box
Packet buffer memory
0.25 MB
Plug and Play
Yes
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
AC-in jack
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
2
Power source
AC
Power supply included
Yes
Quick start guide
Yes
Rackable
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
4 kV
Total Power over Ethernet (PoE) budget
120 W
Uplink ports quantity
2
Viteza transfer
Fast Ethernet
VLAN support
Yes
Adâncime
150 mm
Lățime
220 mm
Material carcasă
Metal
Înălțime
44 mm
Viteză rețea LAN
10,100 Mbit/s
Culoare
Black
Garanție comercială
24
Producător
CUDY
