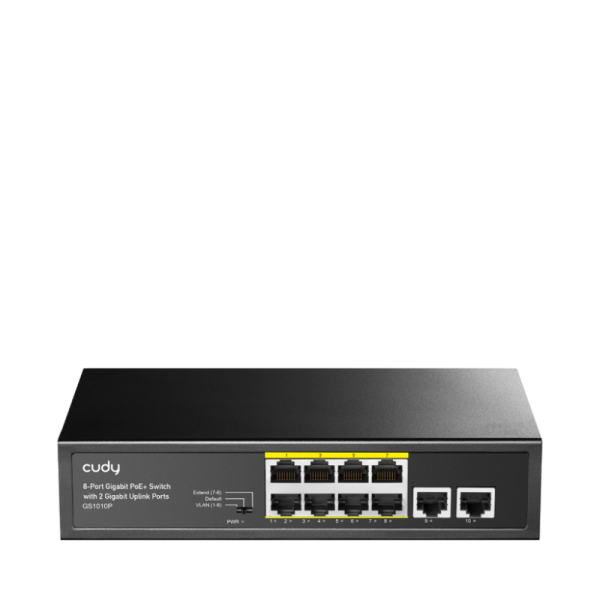

CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x

Switchuri

CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: GS1010P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support — No No No Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz —
Auto-negotiation — Yes Yes — —
Auto MDI/MDI-X — — Yes Yes —
Bandwidth 20 Gbit/s — — — 64 Gbit/s
Basic switching RJ-45 Ethernet ports type 10 8 Fast Ethernet (10/100) 48 24
Broadcast storm control — — — Yes Yes
Cables included AC — AC — AC
Cable types supported Cat3, Cat5, Cat5e Cat5, Cat5e, Cat6 Cat3, Cat4, Cat5, Cat5e — —
Certification — CE, FCC — UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL —
Cloud-managed — No — — Yes
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45 RJ-45
Copper ethernet cabling technology 100BASE-T — 10BASE-T, 100BASE-TX 1000BASE-T, 100BASE-TX —
Depth 150 mm 8.2 mm 180 mm 322 mm 180 mm
DHCP features — — — DHCP client DHCP relay, DHCP server
Ethernet LAN data rates 10,100 Mbit/s — 10,100 Mbit/s — —
Fanless Yes — Yes — Yes
Flash memory — — — 4 MB 512 MB
Flow control support — — Yes Yes —
Form factor Desktop/Wall-Mounting 1U 1U 1U —
Forwarding rate 14.88 Mpps — 2.38 Mpps — 95.23 Mpps
Harmonized System (HS) code — — 85176990 85176990 —
Heat dissipation — — 7.03 BTU/h — 66.87 BTU/h
Height — 27 mm 44 mm 43.5 mm 44 mm
Housing material Metal Metal Metal — —
IGMP snooping — — — Yes Yes
Jumbo frames support Yes — — Yes Yes
LAN ports 8 — — 48 —
LAN port type Gigabit Gigabit FastEthernet Gigabit —
Layer Layer-2 — — Layer-2 —
LED indicators Activity, Link, Power Yes Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 2048 entries 4096 entries 8000 entries 8000 entries 16000 entries
Management nu nu nu Da —
Mean time between failures (MTBF) — — — 263000 h 519.543 h
Montare in rack Da Nu Nu Da Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x IEEE 802.3af IEEE 802.3i, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs 8 — — — 4000
Operating relative humidity (H-H) — 10 - 80% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) -20 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C -5 - 45 °C
Output voltage 52 V 18 - 56 V — — —
Packet buffer memory 0.448 MB — 2 MB 6 MB 12 MB
PoE Nu Da Nu Nu —
Port mirroring — No — Yes Yes
Porturi RJ 45 5-10 5-10 11-18 28+ 24-28
Porturi SFP N/A N/A N/A 1-2 3-4
Power connector AC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) — — 2.23 W — 19.6 W
Power over Ethernet (PoE) Yes Yes No No No
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power source AC AC AC — AC
Power supply included Yes Yes Yes — Yes
Quality of Service (QoS) support — No — Yes Yes
Rackable No — — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit — — Yes — Yes
Redundant PSU No — — No —
Stackable No No No No Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) -40 - 80 °C -40 - 70 °C -40 - 70 °C -25 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes — Yes
Switching capacity 20 Gbit/s 16 Gbit/s 32 Gbit/s — 128 Gbit/s
Switch layer — L2 — L2 L3
Switch type — Unmanaged Unmanaged Managed Managed
Total Power over Ethernet (PoE) budget 120 W 60 W — — —
Viteza transfer Gigabit Gigabit Fast Ethernet Gigabit Gigabit
VLAN support Yes — — Yes Yes
Web-based management — No — Yes Yes
Width 220 mm 192 mm 440 mm 444 mm 440 mm
Laptopuri - Construcție
Culoare — Black Black Grey —
Greutate 630 g 500 g — 4.05 kg —
Laptopuri - Generale
Garanție comercială 24 60 36 24 24
Producător CUDY EXTRALINK TP-LINK ALLIED TELESIS TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM — — — 32 MB 2000 MB

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x porturi RJ45 10/100/1000 Uplink, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF，,standard 802.3af/at, Aternative 1/2(+),3/6(-), Rack-mountable Steel Case, sursa interna de 120W

Specificații tehnice 54 caracteristici
Bandwidth
20 Gbit/s
Basic switching RJ-45 Ethernet ports type
10
Cables included
AC
Cable types supported
Cat3, Cat5, Cat5e
Copper ethernet cabling technology
100BASE-T
Depth
150 mm
Ethernet LAN data rates
10,100 Mbit/s
Fanless
Yes
Form factor
Desktop/Wall-Mounting
Forwarding rate
14.88 Mpps
Housing material
Metal
Jumbo frames support
Yes
LAN ports
8
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Activity, Link, Power
MAC address table
2048 entries
Management
nu
Montare in rack
Da
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Number of VLANs
8
Operating temperature (T-T)
-20 - 50 °C
Output current
2.3 A
Output voltage
52 V
Packet buffer memory
0.448 MB
Plug and Play
Yes
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
AC-in jack
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Power source
AC
Power supply included
Yes
Quick start guide
Yes
Rackable
No
Rack mounting
Yes
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 80 °C
Store-and-forward
Yes
Switching capacity
20 Gbit/s
Total Power over Ethernet (PoE) budget
120 W
Uplink ports quantity
2
Viteza transfer
Gigabit
VLAN support
Yes
Wall mountable
Yes
Width
220 mm
Greutate
630 g
Garanție comercială
24
Producător
CUDY
