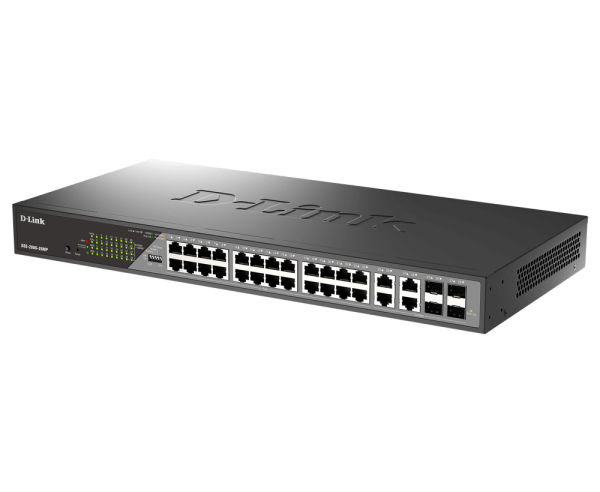

D-Link Switch DSS-200G-28MP,24 x 10/100/1000 Mbps PoE, 4 x Combo

Switchuri

D-Link Switch DSS-200G-28MP,24 x 10/100/1000 Mbps PoE, 4 x Combo

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DSS-200G-28MP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică D-Link Switch DSS-200G-28MP,24 x 10/100/1000 Mbps PoE, 4 x Combo Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support — No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — —
Basic switching RJ-45 Ethernet ports type 24 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included — AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flash memory 32 MB — — 32 MB —
Flow control support Yes Yes Yes Yes —
Forwarding rate 41.67 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes —
Half duplex Yes — — Yes —
Head-of-line (HOL) blocking Yes — Yes Yes —
Heat dissipation 190.74 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping Yes — Yes Yes —
Input current 6.4 A — — — 2.5 A
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 10240 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Activity, Alarm, Link, Power, Speed Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management Da nu Da Da nu
Memory type DDR3-SDRAM — — DRAM —
Montare in rack Nu Nu Da Da Nu
Multicast support Yes — Yes Yes —
Networking standards — IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans 2 fan(s) — 3 fan(s) 3 fan(s) —
Number of queues 4 — — 8 —
Operating relative humidity (H-H) 0 - 95% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory 4.1 MB — 12 MB 16 MB —
Password protection Yes — — Yes —
PoE Da Nu Da Da Da
Port mirroring Yes — Yes Yes No
Porturi RJ 45 24-28 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 425.9 W 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) Yes No Yes Yes Yes
Power over Ethernet (PoE) power per port 30 W — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes No
Queue scheduling algorithms Strict Priority Queue (SPQ), Weighted Round Robin (WRR) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide — — Yes Yes —
Rackable — No Yes Yes —
Rack mounting — Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU — Yes No Yes —
Reset button Yes — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support Yes — Yes Yes —
Stackable — Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 0 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes —
Sustainability compliance Yes — — Yes —
Switching capacity 56 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch layer L2 — — — L2
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes No
Total Power over Ethernet (PoE) budget 370 W — 500 W 500 W 60 W
Traffic classification Yes — — — No
Virtual LAN features Voice VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Gigabit
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes No
Caracteristici fizice
Greutate 28.6 kg — — — 500 g
Laptopuri - Caracteristici fizice 25.09
Adâncime 208 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 440 mm 294 mm — — 192 mm
Înălțime 44 mm 44 mm — — 27 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Grey Grey — — Black
Laptopuri - Generale
Garanție comercială 60 60 60 24 60
Producător D-LINK TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Memorie
Capacitate memorie RAM 128 MB — — 256 MB —
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

D-Link Switch DSS-200G-28MP,24 x 10/100/1000 Mbps PoE, 4 x Combo 1000 Mbps, Switching Capacity:56 Gbps, Forwarding Rate: 41.67 Mpps, Buget POE: 370 W ; 30 W/port, consum maxim: 425.9 W (PoE on) ; 25.5 W (PoE off), dimensiuni: 440 x 208 x 44 mm, Greutate: 2.86 kg.

Specificații tehnice 72 caracteristici
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Combo SFP ports quantity
4
Fanless
No
Flash memory
32 MB
Flow control support
Yes
Forwarding rate
41.67 Mpps
Full duplex
Yes
Half duplex
Yes
Head-of-line (HOL) blocking
Yes
Heat dissipation
190.74 BTU/h
IGMP snooping
Yes
Input current
6.4 A
Jumbo frames
10240
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Activity, Alarm, Link, Power, Speed
Link aggregation
Yes
MAC address table
8000 entries
Management
Da
Mean time between failures (MTBF)
331732 h
Memory type
DDR3-SDRAM
Montare in rack
Nu
Multicast features
Controllable multicast
Multicast support
Yes
Noise level
53 dB
Number of fans
2 fan(s)
Number of queues
4
Number of VLANs
4094
Operating relative humidity (H-H)
0 - 95%
Packet buffer memory
4.1 MB
Password protection
Yes
PoE
Da
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
1-2
Power consumption (max)
425.9 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Rate limiting
Yes
Reset button
Yes
Spanning tree protocol
Yes
SSH/SSL support
Yes
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Switching capacity
56 Gbit/s
Switch layer
L2
Switch type
Managed
Total Power over Ethernet (PoE) budget
370 W
Traffic classification
Yes
Virtual LAN features
Voice VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Greutate
28.6 kg
Adâncime
208 mm
Lățime
440 mm
Înălțime
44 mm
Viteză rețea LAN
1000 Mbit/s
Culoare
Grey
Garanție comercială
60
Producător
D-LINK
Capacitate memorie RAM
128 MB
Construcție laptop
1U
