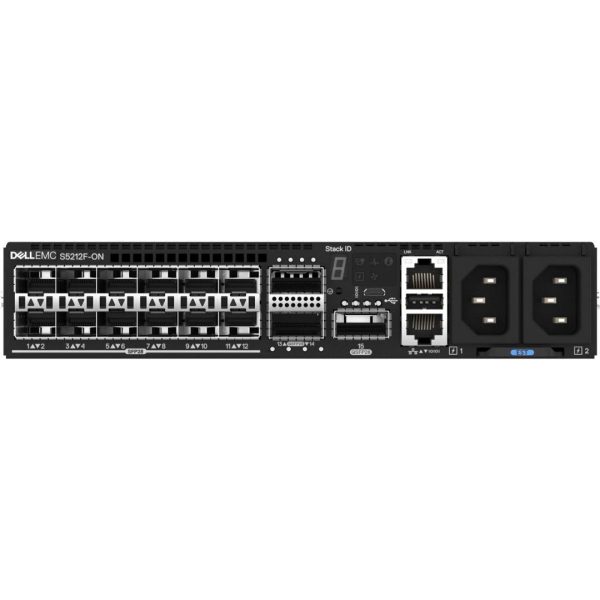

Dell EMC S5212F-ON Switch, 12x 25GbE SFP28, 3x 100GbE QSFP28
33.666,99 lei 36.725,99 lei
Dell EMC S5212F-ON Switch, 12x 25GbE SFP28, 3x 100GbE QSFP28
(0)
În stoc
Vândut de RITC.ro
Cod produs: 210-APHW17421362
Livrare și beneficii
Compară cu produse similare
Dell EMC S5212F-ON Switch, 12x 25GbE SFP28, 3x 100GbE QSFP28
"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
1.472,99 lei 2.334,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
3.833,99 lei
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
Vezi comparația completă
| Caracteristică | Dell EMC S5212F-ON Switch, 12x 25GbE SFP28, 3x 100GbE QSFP28 | "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | — | Yes | Yes | No | No |
| Access Control List (ACL) | — | Yes | Yes | — | — |
| AC input frequency | — | — | — | 50 - 60 Hz | 50 - 60 Hz |
| ARP inspection | — | Yes | Yes | — | — |
| Authentication | — | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication | Auto VLAN, Guest VLAN | — | — |
| Auto MDI/MDI-X | — | — | — | Yes | Yes |
| Basic switching RJ-45 Ethernet ports type | — | No | 48 | 48 | 24 |
| BPDU filtering/protection | — | Yes | Yes | — | — |
| Broadcast storm control | — | Yes | Yes | Yes | — |
| Cables included | — | AC | AC | — | AC |
| Cloud-managed | — | Yes | Yes | — | — |
| Configuring Location Settings (CLI) | — | Yes | Yes | — | — |
| Connectivity technology | — | — | — | Wired | Wired |
| Console port | — | RJ-45/micro-USB | RJ-45/micro-USB | RJ-45 | — |
| DHCP features | — | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | DHCP client, DHCP relay, DHCP server | DHCP client | — |
| Dimensions (WxDxH) | — | — | — | 444 x 322 x 43.5 mm | 294 x 180 x 44 mm |
| Flow control support | — | Yes | Yes | Yes | Yes |
| Forwarding rate | — | 119.04 Mpps | 130.9 Mpps | — | 35.7 Mpps |
| Harmonized System (HS) code | — | — | — | 85176990 | 85176990 |
| Head-of-line (HOL) blocking | — | Yes | Yes | Yes | — |
| Heat dissipation | — | 52.75 BTU/h | 2169.2 BTU/h | — | 44.63 BTU/h |
| IGMP snooping | — | Yes | Yes | Yes | — |
| IP-MAC-Port binding | — | Yes | Yes | — | — |
| Jumbo frames | — | 9000 | 9000 | — | 10000 |
| Jumbo frames support | — | Yes | Yes | Yes | Yes |
| LAN ports | — | — | 48 | 48 | 24 |
| LAN port type | — | 10Gigabit | Gigabit | Gigabit | Gigabit |
| Layer | — | — | Layer-2 | Layer-2 | Unmanaged |
| LED indicators | — | Yes | Yes | Yes | Yes |
| Link aggregation | — | Yes | Yes | Yes | — |
| MAC address filtering | — | Yes | Yes | Yes | — |
| MAC address table | — | 32000 entries | 16000 entries | 8000 entries | 8000 entries |
| Management | Da | Da | Da | Da | nu |
| Management protocols | — | SNMPv1/v2c/v3, SNTP | — | IGMP, SNMP, FTP | — |
| Maximum data transfer rate | — | — | — | 1 Gbit/s | 1 Gbit/s |
| MIB support | — | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 | — | RFC 1213, RFC 1643, RFC 1493 | — |
| Montare in rack | Da, 1RU | Nu | Da | Da | Nu |
| Multicast support | — | Yes | Yes | Yes | — |
| Networking standards | — | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | — | — | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | — | 10 - 90% | 10 - 90% | 5 - 90% | 10 - 90% |
| Operating temperature (T-T) | — | 0 - 45 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package type | — | Box | — | — | Box |
| Packet buffer memory | — | 16 MB | 12 MB | 6 MB | — |
| PoE | Nu | Nu | Da | Nu | Nu |
| Port mirroring | — | Yes | Yes | Yes | — |
| Porturi RJ 45 | N/A | 1-4 | 28+ | 28+ | 24-28 |
| Porturi SFP | peste 9 | 5-8 | 1-2 | 1-2 | N/A |
| Power connector | — | DC-in jack | AC-in jack | DC-in jack | DC-in jack |
| Power consumption (max) | — | 15.46 W | 635.7 W | — | 13.08 W |
| Power over Ethernet (PoE) | — | No | Yes | No | No |
| Power requirements | — | — | — | 100-240V AC, 50/60Hz | 100 - 240V, 50/60Hz |
| Power source | — | AC | AC | — | AC |
| Power supply included | — | Yes | Yes | — | Yes |
| Quality of Service (QoS) support | — | Yes | Yes | Yes | Yes |
| Quick start guide | — | Yes | Yes | — | — |
| Rackable | — | — | Yes | Yes | No |
| Rack mounting | — | Yes | Yes | Yes | Yes |
| Rack mount kit | — | Yes | — | — | Yes |
| Rate limiting | — | Yes | Yes | Yes | — |
| Redundant PSU | — | — | No | No | Yes |
| SFP module slots quantity | — | 8 | 4 | — | — |
| Spanning tree protocol | — | Yes | Yes | Yes | — |
| SSH/SSL support | — | Yes | Yes | — | — |
| Stackable | — | — | No | No | Yes |
| Static port security | — | Yes | Yes | Yes | — |
| Storage relative humidity (H-H) | — | 5 - 90% | 5 - 90% | 5 - 95% | 5 - 90% |
| Storage temperature (T-T) | — | -40 - 70 °C | -40 - 70 °C | -25 - 70 °C | -40 - 70 °C |
| Store-and-forward | — | — | Yes | — | Yes |
| Supported data transfer rates | — | — | — | 10/100/1000 Mbps | 10/100/100 Mbps |
| Switching capacity | — | 160 Gbit/s | 176 Gbit/s | — | 48 Gbit/s |
| Switch layer | — | L2+/L3 | — | L2 | — |
| Switch type | — | Managed | Managed | Managed | Unmanaged |
| System event log | — | Yes | Yes | — | — |
| Viteza transfer | 10G+ | 10G+ | 10G+ | Gigabit | Gigabit |
| VLAN support | — | Yes | Yes | Yes | — |
| Web-based management | — | Yes | Yes | Yes | — |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | — | 180 mm | 330 mm | 322 mm | 180 mm |
| Lățime | — | — | — | 444 mm | 294 mm |
| Înălțime | — | — | — | 43.5 mm | 44 mm |
| Laptopuri - Construcție | |||||
| Culoare | — | — | — | Grey | Grey |
| Laptopuri - Generale | |||||
| Garanție comercială | — | 60 | 60 | 24 | 60 |
| Producător | DELL | TP-LINK | TP-LINK | ALLIED TELESIS | TP-LINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | — | — | 1U | 1U | — |
Analiză inteligentă a produsului
Descriere oficială
Dell EMC S5212F-ON Switch, 12x 25GbE SFP28, 3x 100GbE QSFP28 ports, IO to PSU air, 2x PSU, 3Yr ProSupport + NBD
Specificații tehnice 26 caracteristici ⌄
- Alimentare
- 2x PSU
- Conectori
- 1x port RJ45 consola/management cu RS232
- Management
- Da
- Memorie
- 8 GB
- Memorie Buffer
- 32 MB
- Memorie Flash
- 16 GB
- Metoda forwarding
- 440 Mpps (880 Mpps full duplex)
- Montare in rack
- Da, 1RU
- Numar porturi
- 12x SFP283x QSFP28 (uplink)
- PoE
- Nu
- Porturi RJ 45
- N/A
- Porturi SFP
- peste 9
- Protocoale de rutare
- OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, MLDv3, MSTP
- Putere consumata (W)
- Maximum: 304 WTipic: 140 W
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 2c, TFTP, SSH-2, CLI, NTP
- Rutare IP
- IPv4: 128000IPv6: 64000
- Securitate
- MD5, RADIUS, TACACS, Secure Shell v.2 (SSH2)
- Switch capacity
- 1.08 Tbps (2.16 Tbps full duplex)
- Tabela de adrese MAC
- 288K
- Tehnologie de cablare
- Base-X SFP28
- Tip Switch
- Retea Fibra Optica
- Viteza transfer
- 10G+
- Viteza transfer LAN
- 25 Gbps
- Dimensiuni
- 490 x 41 x 209 mm
- Greutate
- 4.5 kg
- Producător
- DELL
