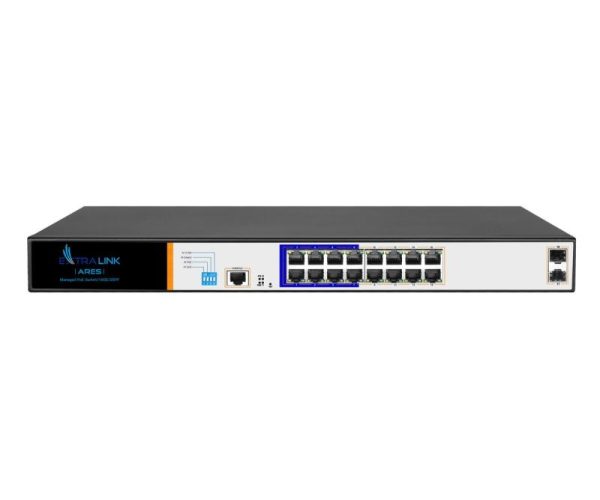

Extralink ARES PoE Switch 16x Gigabit PoE/PoE+ 2x

Switchuri

Extralink ARES PoE Switch 16x Gigabit PoE/PoE+ 2x

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: EX.3807

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Extralink ARES PoE Switch 16x Gigabit PoE/PoE+ 2x Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) Yes — — Yes Yes
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Authentication — — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication
Auto-negotiation Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 16 8 24 48 24
BPDU filtering/protection — — — Yes Yes
Broadcast storm control — — — Yes Yes
Cables included — — AC AC AC
Cable types supported Cat5e, Cat6, Fiber Cat5, Cat5e, Cat6 Cat3, Cat4, Cat5, Cat5e — —
Cloud-managed No No — Yes Yes
Configuring Location Settings (CLI) — No — Yes Yes
Console port — — — RJ-45/micro-USB RJ-45/micro-USB
DHCP features DHCP snooping — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support Yes — Yes Yes Yes
Forwarding rate 23.8 Mpps — 35.7 Mpps 130.9 Mpps 148.8 Mpps
Full duplex — — Yes — Yes
Head-of-line (HOL) blocking — — — Yes Yes
Heat dissipation — — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — 10000 9000 9000
Jumbo frames support Yes — Yes Yes Yes
LAN ports — — 24 48 24
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer — — Unmanaged Layer-2 Layer-2
LED indicators — Yes Yes Yes Yes
Link aggregation — — — Yes Yes
Loop protection Yes — — — Yes
MAC address table 8000 entries 4096 entries 8000 entries 16000 entries 32000 entries
Management Da nu nu Da Da
Montare in rack Nu Nu Nu Da Da
Multicast support Yes — — Yes Yes
Networking standards — IEEE 802.3af IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — —
Number of fans — — — 3 fan(s) 3 fan(s)
Operating relative humidity (H-H) — 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory — — — 12 MB 16 MB
PoE Da Da Nu Da Da
Port mirroring — No — Yes Yes
Porturi RJ 45 11-18 5-10 24-28 28+ 24-28
Porturi SFP 1-2 N/A N/A 1-2 1-2
Power connector — DC-in jack DC-in jack AC-in jack —
Power consumption (max) — — 13.08 W 635.7 W 629.1 W
Power over Ethernet (PoE) Yes Yes No Yes Yes
Power over Ethernet (PoE) power per port 46 W 30 W — 30 W —
Power over Ethernet (PoE) voltage 48 V 24 - 48 V — — —
Power over Ethernet plus (PoE+) ports quantity 16 — — 48 16
Power source AC AC AC AC AC/PoE
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support — No Yes Yes Yes
Quick start guide Yes — — Yes Yes
Rackable — — No Yes Yes
Rack mounting Yes No Yes Yes Yes
Rack mount kit — — Yes — Yes
Rate limiting — — — Yes Yes
Redundant fans support — No — — Yes
Redundant PSU — — Yes No Yes
Reset button Yes Yes — Yes —
SFP module slots quantity 2 — — 4 4
Spanning tree protocol — — — Yes Yes
SSH/SSL support — — — Yes Yes
Stackable No No Yes No No
Static port security — — — Yes Yes
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes Yes
Switching capacity 36 Gbit/s 16 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s
Switch layer L2 L2 — — —
Switch type Managed Unmanaged Unmanaged Managed Managed
System event log — No — Yes Yes
Temperature sensor No No — — —
Total Power over Ethernet (PoE) budget 150 W 60 W — 500 W 500 W
User guide Yes — Yes — —
Viteza transfer Gigabit Gigabit Gigabit 10G+ 2.5G
VLAN support — — — Yes Yes
Web-based management Yes No — Yes Yes
Laptopuri - Caracteristici fizice 25.09
Adâncime 180 mm 8.2 mm 180 mm 330 mm 330 mm
Lățime 440 mm 192 mm 294 mm — —
Material carcasă Metal Metal — — —
Înălțime 44 mm 27 mm 44 mm — —
Laptopuri - Construcție
Culoare Black, Grey Black Grey — —
Laptopuri - Generale
Garanție comercială 60 60 60 60 24
Producător EXTRALINK EXTRALINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop 1U 1U — 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Extralink ARES PoE Switch 16x Gigabit PoE/PoE+ 2x SFP 1x Console 150W Managed

Specificații tehnice 54 caracteristici
10G support
No
Access Control List (ACL)
Yes
AC input frequency
50 - 60 Hz
Auto-negotiation
Yes
Auto-sensing
Yes
Basic switching RJ-45 Ethernet ports type
16
Cable types supported
Cat5e, Cat6, Fiber
Cloud-managed
No
DHCP features
DHCP snooping
Flow control support
Yes
Forwarding rate
23.8 Mpps
IGMP snooping
Yes
Jumbo frames support
Yes
LAN port type
Gigabit
Loop protection
Yes
MAC address table
8000 entries
Management
Da
Manual
Yes
Montare in rack
Nu
Multicast support
Yes
PoE
Da
Porturi RJ 45
11-18
Porturi SFP
1-2
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) pass through
No
Power over Ethernet (PoE) ports quantity
16
Power over Ethernet (PoE) power per port
46 W
Power over Ethernet (PoE) voltage
48 V
Power over Ethernet plus (PoE+) ports quantity
16
Power source
AC
Power supply included
Yes
Quick start guide
Yes
Rack mounting
Yes
Reset button
Yes
SFP module slots quantity
2
Stackable
No
Store-and-forward
Yes
Switching capacity
36 Gbit/s
Switching optical modules type
Gigabit Ethernet
Switch layer
L2
Switch type
Managed
Temperature sensor
No
Total Power over Ethernet (PoE) budget
150 W
User guide
Yes
Viteza transfer
Gigabit
Web-based management
Yes
Adâncime
180 mm
Lățime
440 mm
Material carcasă
Metal
Înălțime
44 mm
Culoare
Black, Grey
Garanție comercială
60
Producător
EXTRALINK
Construcție laptop
1U
